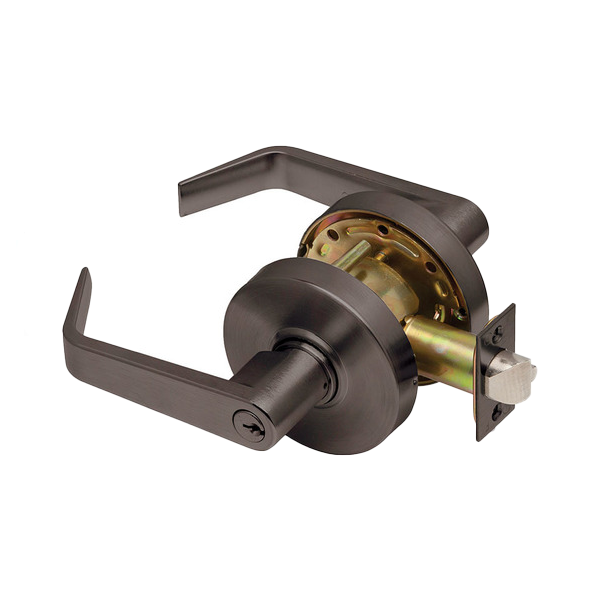

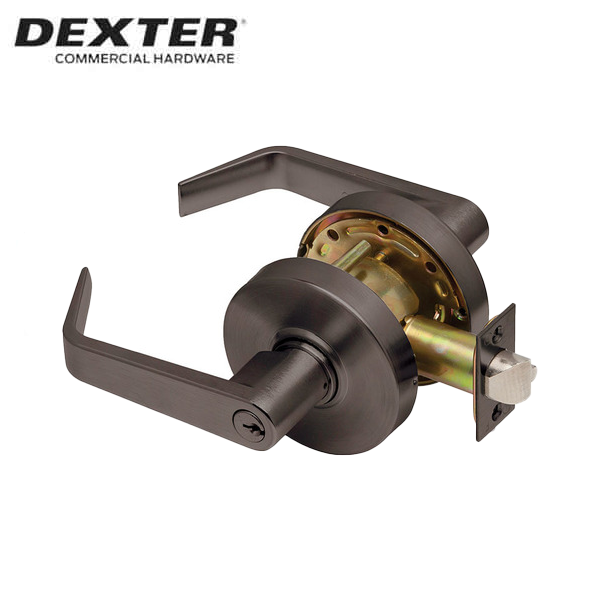

Dexter C1000 - Commercial Lever Set Handle - Cylindrical Lockset - Turn-Pushbutton - Keyed Different - 2-3/4” Standard Backset - Oil Rubbed Bronze - Entrance - Fire Rated - Grade 1
In Stock
SKU:
DEX-C1000-ENTR-R-613-KDC
NSID:
7624
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $121.50
-
$176.99 - $121.50
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With hundreds of grade 1 and grade 2 products, Dexter Commercial Hardware is designed for common door applications and is your solution for cost-constrained projects.
Features:
- Complies with ADA accessibility guidelines
- Turn-Pushbutton
- Grade 1
- UL listed 3 hours fire rated
- C Keyway
- Entry/Office function
- ASA Strike
Specifications
| Lock Function | F109 – Entry/Office |
| Handing | Non-Handed |
| Door Material |
Wood or Hollow Metal |
| Door Thickness | 1-3/8 - 2" |
| Cylinder | Conventional Cylinder |
| Backset | 2-3/4" |
| Latch Type |
Dead Latch (Guarded) |
| Lever | R - Regular |
| Lever Function | Clutching |
| Keying | Keyed Different |
| Rose/Escutcheon Size | 3-7/16" Diameter |
| Strike | 1-1/4" x 4-7/8" ANSI Curved Lip Strike |
| Projection | 1/2" Bolt Projection |
| Lock Face Size | 1" x 2-1/4" |
| Finish | 613/US10B - Dark Oxidized Satin Bronze Oil Rubbed |
| Material | Brass/Bronze |
| Fire rated | 3 Hours |
| Certifications |
Grade 1, UL Listed, ANSI A156.2 Series 4000 |
| Includes | Universal Screw Packs: Screws Included for Wood or Hollow Metal Doors |
| Manufacturer Warranty | 5 Years Limited Mechanical |
