Record - EZ 36 Wireless Automatic Door Kit - PULL Arm - Right Hand - 39" Header (36" Door) - Clear Coat - For Single Doors
Available to Order
SKU:
ENT-W9-210
NSID:
1851
- $2,504.70
-
$3,005.64 - $2,504.70
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

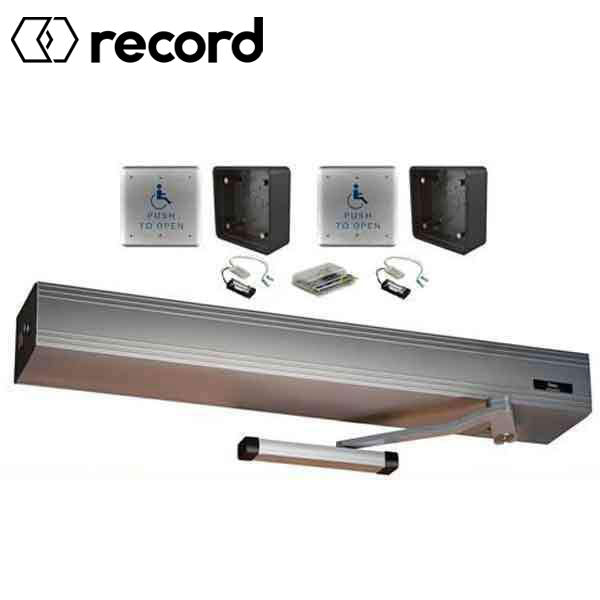

This is a complete Wireless Automatic Door Kit

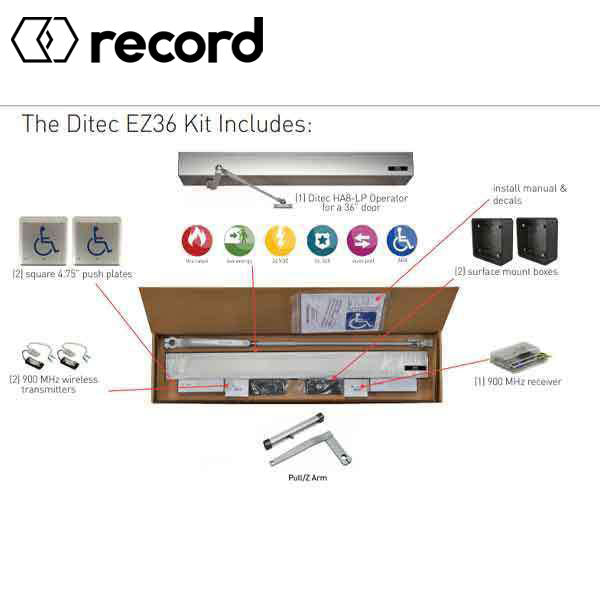

The kit includes:
1 - Ditec HA8-LP Operator for a 36” Door
2 - Square Push Plates - 4.5”
2 - Surface Mount Boxes
2 - 900 MHz Wireless Transmitters
1 - 900 MHz Receiver
1 - Pull Arm - Right Hand
This is everything you need to install your wireless door operator

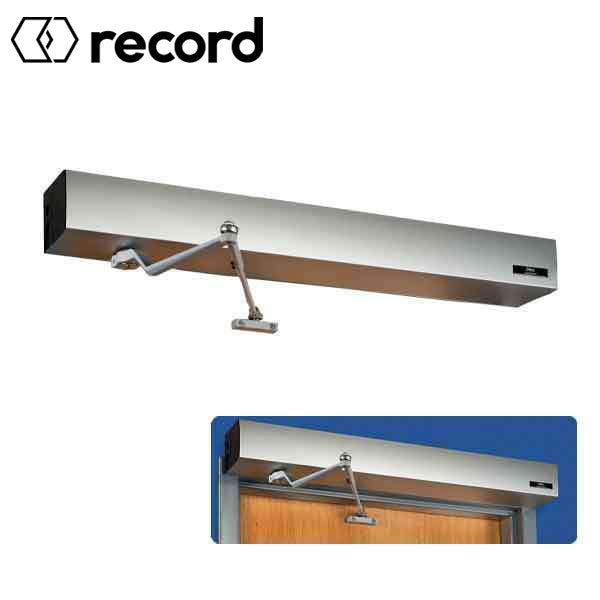

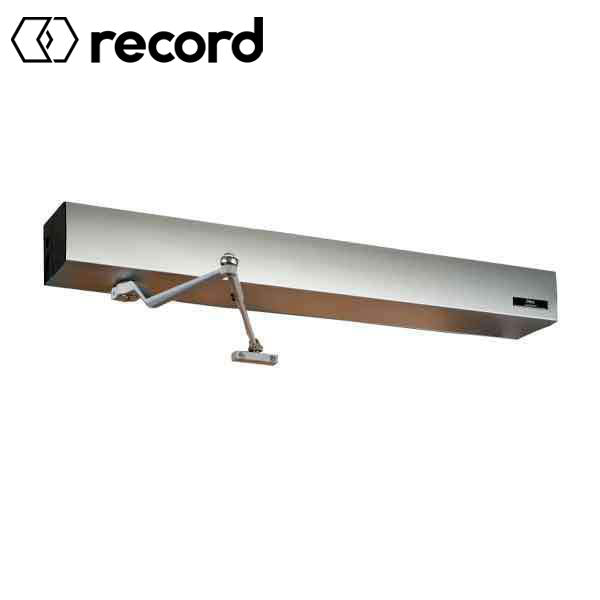

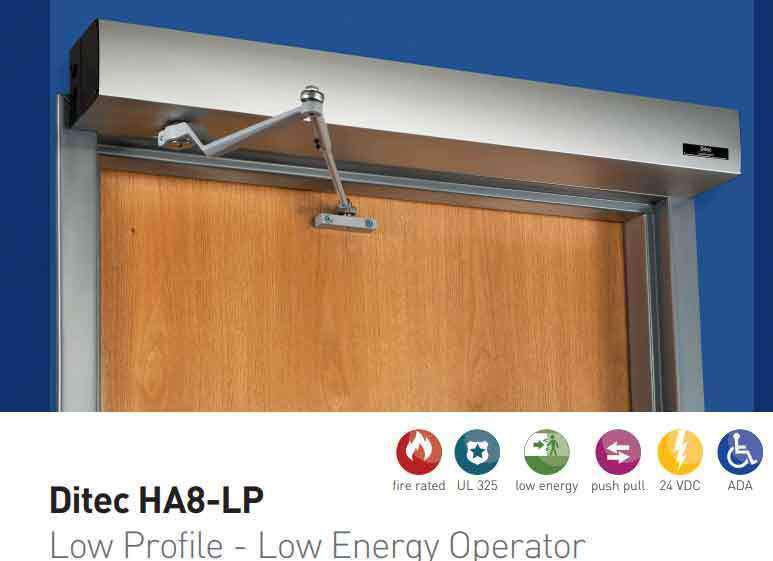

The Ditec HA8-LP low-energy operator has the same power and durability as the standard profile, but with a smaller header for applications where clearance is limited. The low-profile is available as surface applied, and can be found in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings, and offices.
- Handed Operator
- Permanent lubrication means maintenance-free
- Easy manual door operation
- Ul325 / UL10C certified
- Single Doors
Specifications:
| Application | Single Doors |
| Header Profile Dimensions | 4 1/8" x 5 1/8" |
| Motor | 1/8 HP |
| Manual Opening/Closing Force | Adjustable 5 to 30 lbs. |
| Push Reveal | Up to 14" |
| Pull Reveal | Up to 5" |
| Total Weight with 39" Header | 44 lbs |
| Non-Handed | Pull Arm Right |
| Drive Train Gear Box | Aluminum-Alloy Gearbox |
| Control Box | Single HA-8 w/Data, 24 VDC, 3 AMP |
| Operating Voltage (Standard) | 115VAC |
| Gear Grease | High Wear Protection |
| Bearings | HD Sealed |
| Motor | 1/8th HP |
| Manual Opening/Closing Force | Adjustable 5 to 30 lbs |
| Arm Connection | 1” Solid Spline Spindle |
| Adjustable Stop | Yes |
| Operator Switch | On-Off-Hold Open |
| Adjustable Spring Tension | Yes |
| Mechanical Clutch | Standard |
| Push or Pull Application | Pull |
| Easy Manual Operation | Yes |
| Surface Mounting | Yes |
| Side Loading | Yes |
| Push Reveal | Up to 14” |
| Pull Reveal | Up to 5” |
| Electric Strike Power | Yes 24 VDC |
| Fire Door Compatibility | UL10C Approved |
| Circuit Protection | 3 amp Fuse |
| Total Weight w/ 39" Header | 44 lbs |
| Meets ANSI 156.19 Low Energy | Yes |
Watch Complete Installation Video Here
