Record - EZ 36 Wireless Automatic Door Kit - PUSH Arm - Non Handed - 39" Header (36" Door) - Antique Bronze - For Single Doors

Available to Order
SKU: ENT-W9-220
NSID: 1848

Please Note: This product has a lead time

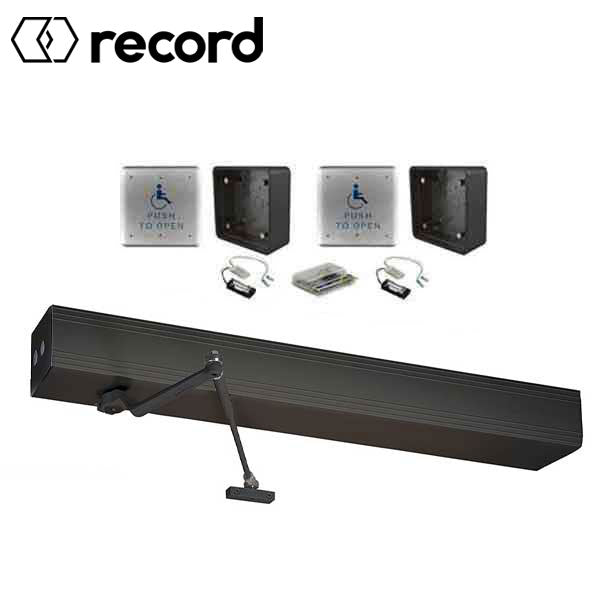

This is a complete Wireless Automatic Door Kit

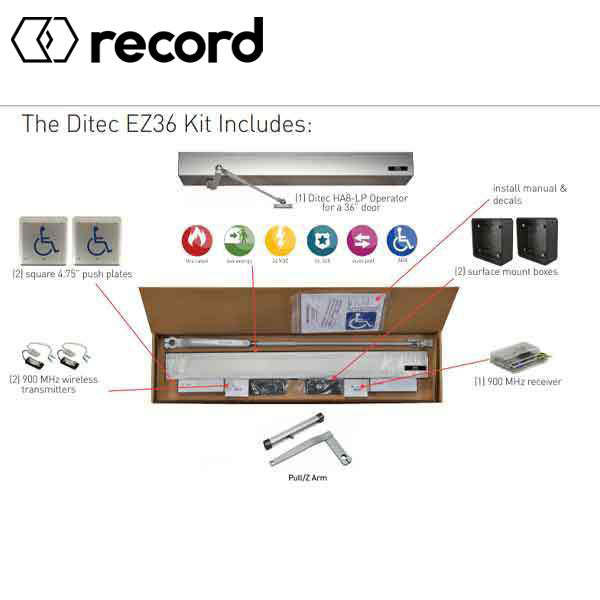

The kit includes:

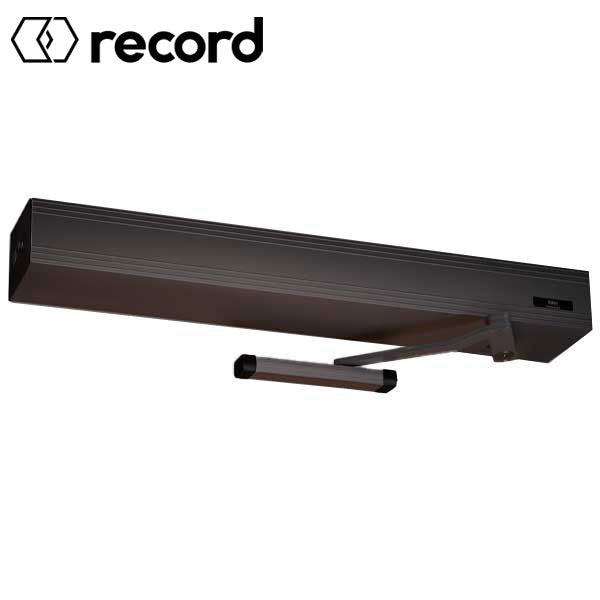

1 - Ditec HA8-LP Operator for a 36” Door
2 - Square Push Plates
2 - Surface Mount Boxes
2 - 900 MHz Wireless Transmitters
1 - 900 MHz Receiver
1 - Push Arm - Non Handed

This is everything you need to install your wireless door operator

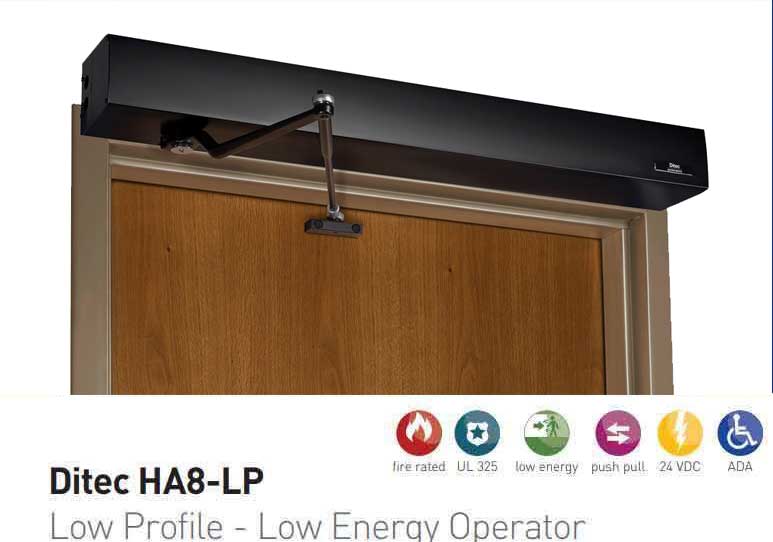

The Ditec HA8-LP low-energy operator has the same power and durability of the standard profile, but with a smaller header for applications where clearance is limited. The low-profile is available as surface applied, and can be found in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings and offices.

  • Quality Heavy Duty Commercial Construction
  • High precision gears made for sustained long-term use
  • Electro Mechanical Design for simple dependable operation
  • Permanent lubrication for maintenance free operation

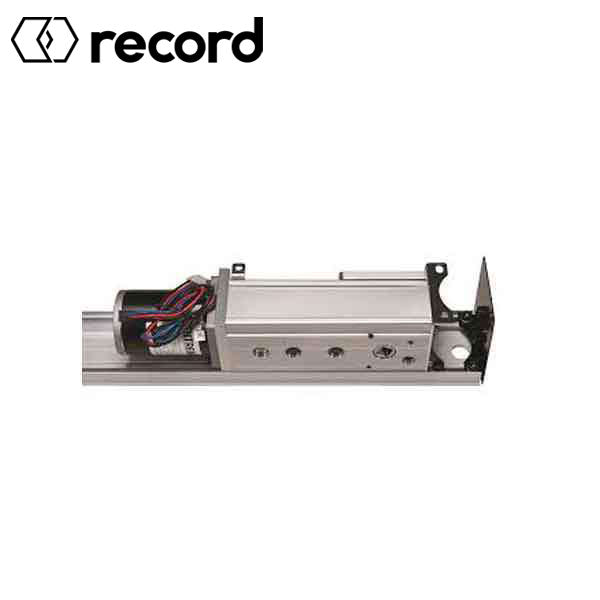

  • Machined alloy gearbox housing
  • 1/8th HP motor

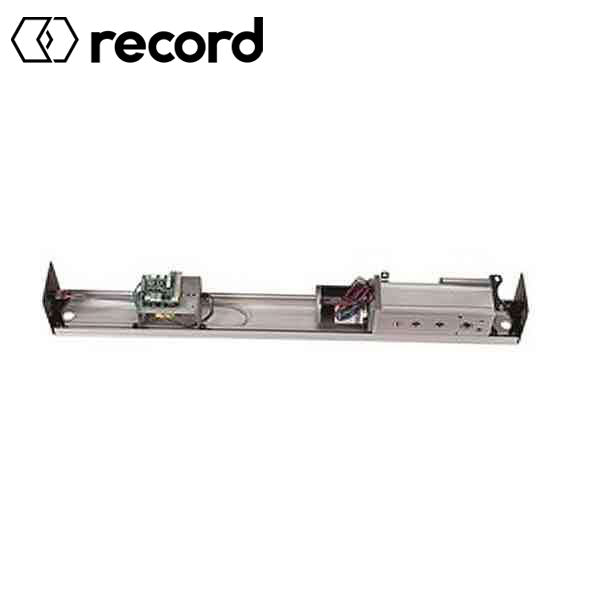

  • Digital Control Board
  • Advanced Technology
  • On-board programming
  • Built in strike/mag lock relay - fail safe or fail secure
  • Separate inputs for activation and safety devices
  • Plug-n-play design for fast trouble free installation
  • Compatible with safety and activation devices
  • Integrates with building access & security systems
  • Durable
  • Built to outlast the competition
  • Perfect for high traffic locations

Call 1-800-878-6604 for Bulk / Dealer Pricing!
Application Single Doors
Header Profile Dimensions 4 1/8" x 5 1/8"
Motor 1/8 HP
Manual Opening/Closing Force Adjustable 5 to 30 lbs.
Push Reveal Up to 14"
Pull Reveal Up to 5"
Total Weight with 39" Header 44 lbs
Non-Handed Push Arm
Drive Train Gear Box Aluminum-Alloy Gearbox
Control Box Single HA-8 w/Data, 24 VDC, 3 AMP
Operating Voltage (Standard) 115VAC
Gear Grease High Wear Protection
Bearings HD Sealed
Motor 1/8th HP
Manual Opening/Closing Force Adjustable 5 to 30 lbs
Arm Connection 1” Solid Spline Spindle
Adjustable Stop Yes
Operator Switch On-Off-Hold Open
Adjustable Spring Tension Yes
Mechanical Clutch Standard
Push or Pull Application Push
Easy Manual Operation Yes
Surface Mounting Yes
Side Loading Yes
Push Reveal Up to 14”
Pull Reveal Up to 5”
Electric Strike Power Yes 24 VDC
Fire Door Compatibility UL10C Approved
Circuit Protection 3 amp Fuse
Total Weight w/ 39" Header 44 lbs
Meets ANSI 156.19 Low Energy Yes
