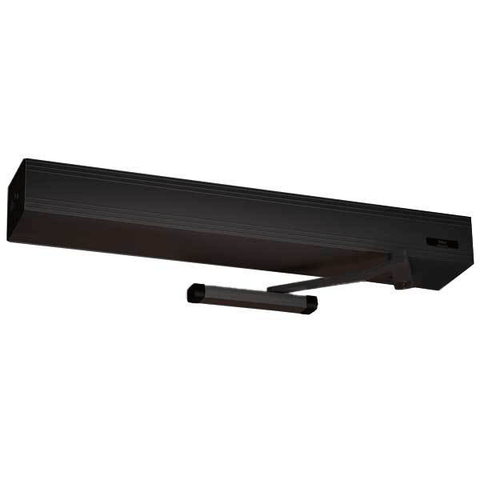

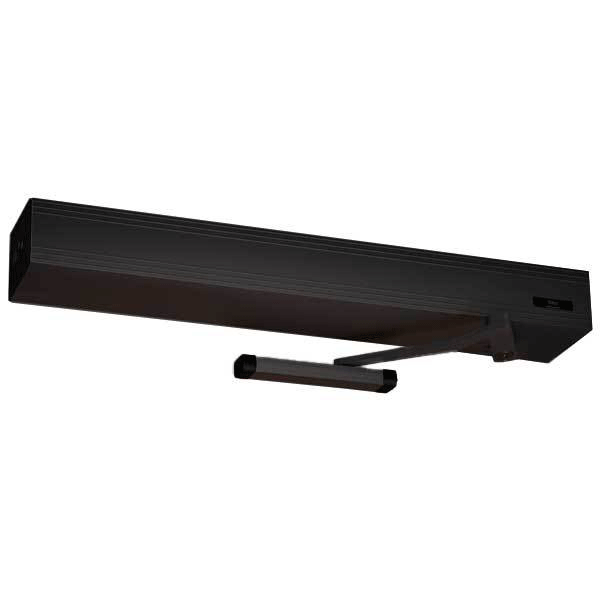

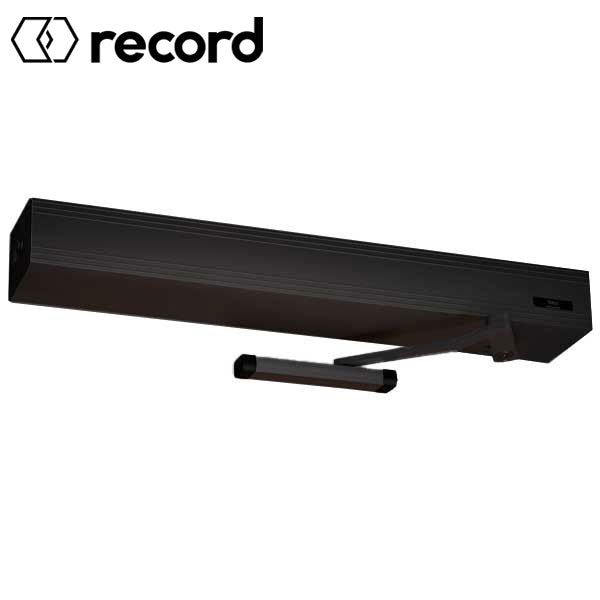

*Discontinued* Record - HA8-LP - Low Profile Swing Door Operator - PULL Arm - Right Hand - Black (39" to 51") For Single Doors
Out of Stock
SKU:
ENT-WL-114-39
NSID:
1873
1874
1875
- $1,545.30
-
$1,854.36 - $1,545.30
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
ENT-WL-114

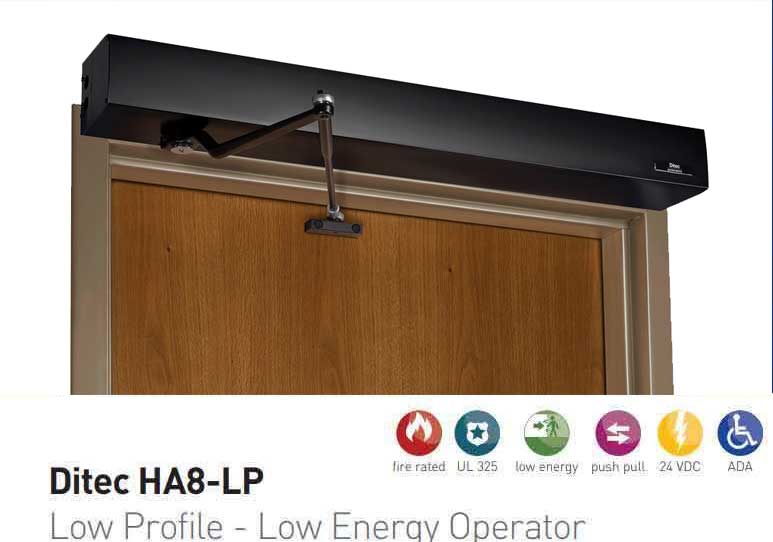

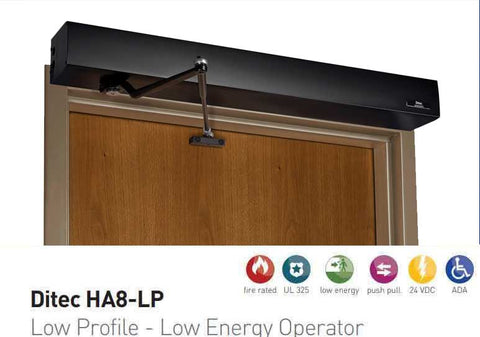

The Ditec HA8-LP low-energy operator has the same power and durability of the standard profile, but with a smaller header for applications where clearance is limited. The low-profile is available as surface applied, and can be found in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings and offices.
Tuxedo Black Finish
Available in 39", 45" or 51" sizes (Select Below)
- Non-Handed operator
- Opens easily during manual operation
- Quiet Operation
- Permanent lubrication means maintenance free
- Easy installation (average install time is 1-1/2 hours)
- UL325/UL10C
- $1,545.30
-
$1,854.36 - $1,545.30
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
| Application | Single Doors |
| Header Profile Dimensions | 4 1/8" x 5 1/8" |
| Motor | 1/8 HP |
| Manual Opening/Closing Force | Adjustable 5 to 30 lbs. |
| Push Reveal | Up to 14" |
| Pull Reveal | Up to 5" |
| Total Weight with 39" Header | 44 lbs |
| Handing | Pull Arm Right Hand |

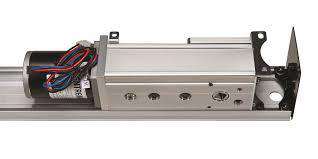

| Drive Train Gear Box | Aluminum-Alloy Gearbox |
| Control Box | Single HA-8 w/Data, 24 VDC, 3 AMP |
| Operating Voltage (Standard) | 115VAC |
| Gear Grease | High Wear Protection |
| Bearings | HD Sealed |
| Motor | 1/8th HP |
| Manual Opening/Closing Force | Adjustable 5 to 30 lbs |
| Arm Connection | 1” Solid Spline Spindle |
| Adjustable Stop | Yes |
| Operator Switch | On-Off-Hold Open |
| Adjustable Spring Tension | Yes |
| Mechanical Clutch | Standard |
| Push or Pull Application | Pull |
| Easy Manual Operation | Yes |
| Surface Mounting | Yes |
| Side Loading | Yes |
| Push Reveal | Up to 14” |
| Pull Reveal | Up to 5” |
| Electric Strike Power | Yes 24 VDC |
| Fire Door Compatibility | UL10C Approved |
| Circuit Protection | 3 amp Fuse |
| Total Weight w/ 39" Header | 44 lbs |
| Meets ANSI 156.19 Low Energy | Yes |
