Ditec - HA8-LP - Low Profile Swing Door Operator - PULL Arm - Right Hand - Clear Coat (39" to 51") For Single Doors

Available: In Stock
Wishlist
  • Product SKU: ENT-WL-104-39
  • ENT-WL-102

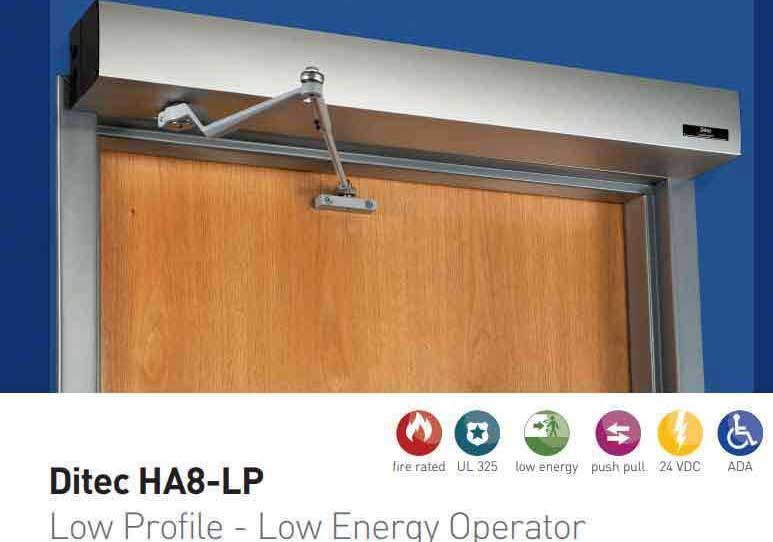

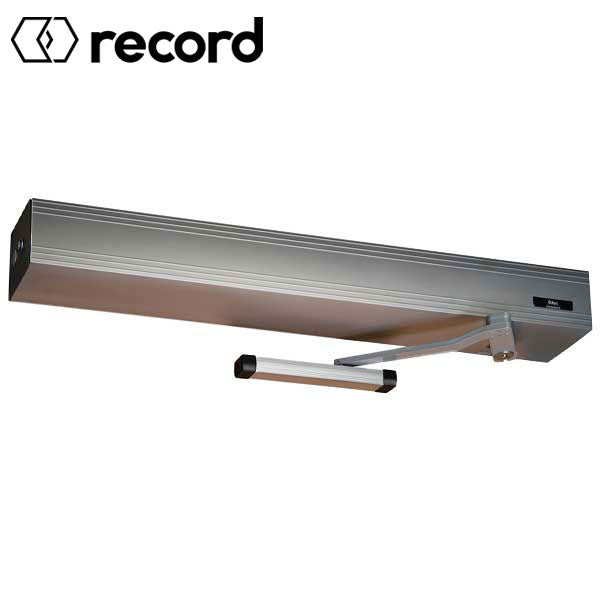

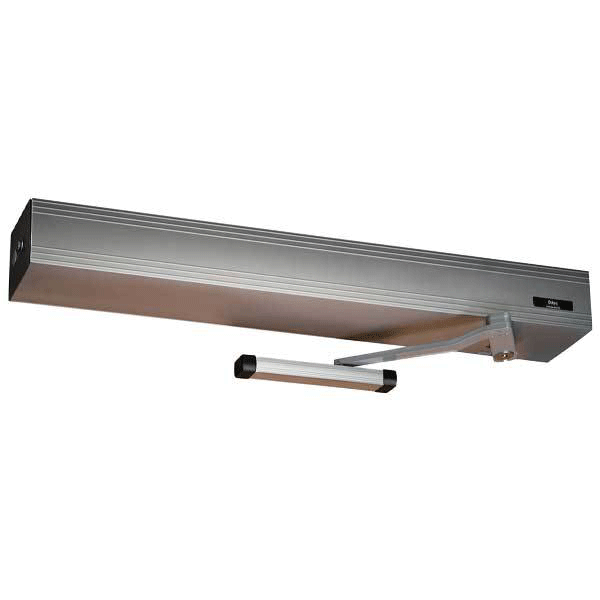

    The Ditec HA8-LP low-energy operator has the same power and durability of the standard profile, but with a smaller header for applications where clearance is limited. The low-profile is available as surface applied, and can be found in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings and offices.

    Clear Coat Finish
    Available in 39", 45" or 51" sizes (Select Below)

    • Quality Heavy Duty Commercial Construction
    • High precision gears made for sustained long-term use

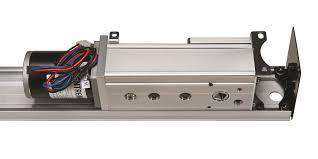

    • Electro Mechanical Design for simple dependable operation
    • Permanent lubrication for maintenance free operation
    • Machined alloy gearbox housing
    • 1/8th HP motor
    • Digital Control Board
    • Advanced Technology
    • On-board programming
    • Built in strike/mag lock relay - fail safe or fail secure
    • Separate inputs for activation and safety devices
    • Plug-n-play design for fast trouble free installation
    • Compatible with safety and activation devices
    • Integrates with building access & security systems
    • Durable
    • Built to outlast the competition
    • Perfect for high traffic locations

Application Single Doors
Header Profile Dimensions 4 1/8" x 5 1/8"
Motor 1/8 HP
Manual Opening/Closing Force Adjustable 5 to 30 lbs.
Push Reveal Up to 14"
Pull Reveal Up to 5"
Total Weight with 39" Header 44 lbs
Handing Pull Arm Right Hand
Drive Train Gear Box Aluminum-Alloy Gearbox
Control Box Single HA-8 w/Data, 24 VDC, 3 AMP
Operating Voltage (Standard) 115VAC
Gear Grease High Wear Protection
Bearings HD Sealed
Motor 1/8th HP
Manual Opening/Closing Force Adjustable 5 to 30 lbs
Arm Connection 1” Solid Spline Spindle
Adjustable Stop Yes
Operator Switch On-Off-Hold Open
Adjustable Spring Tension Yes
Mechanical Clutch Standard
Push or Pull Application Pull
Easy Manual Operation Yes
Surface Mounting Yes
Side Loading Yes
Push Reveal Up to 14”
Pull Reveal Up to 5”
Electric Strike Power  Yes  24 VDC
Fire Door Compatibility UL10C Approved
Circuit Protection 3 amp Fuse
Total Weight w/ 39" Header 44 lbs
Meets ANSI 156.19 Low Energy  Yes



Watch Complete Installation Video Here
