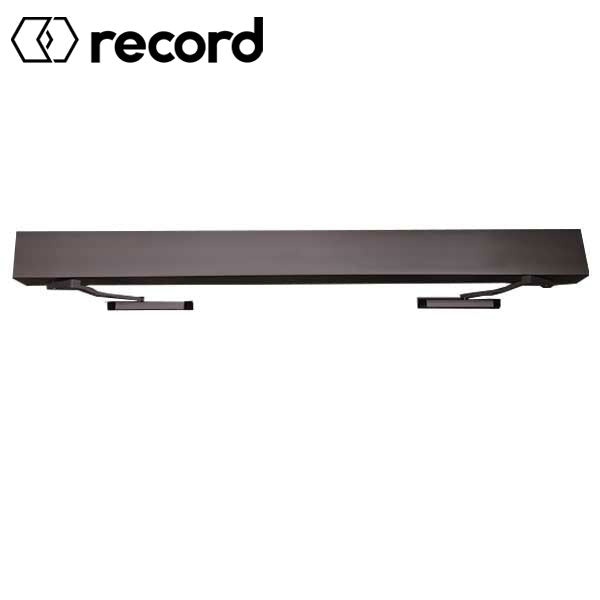

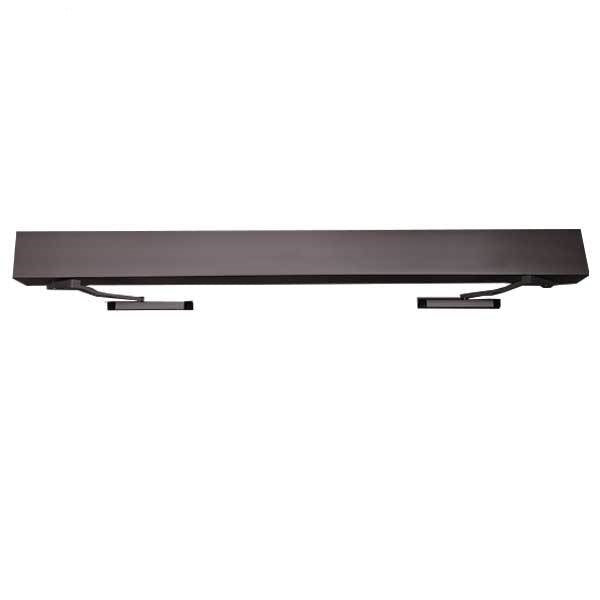

*Discontinued* Record - HA9 - Full Feature Door Operator - Double PULL Arm - Non Handed - Antique Bronze - 75" For Double Doors
Out of Stock
SKU:
ENT-HA9-106-75
NSID:
1919
- $3,778.20
-
$4,533.84 - $3,778.20
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

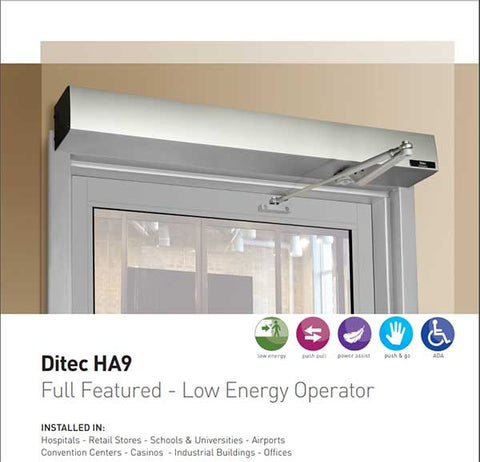

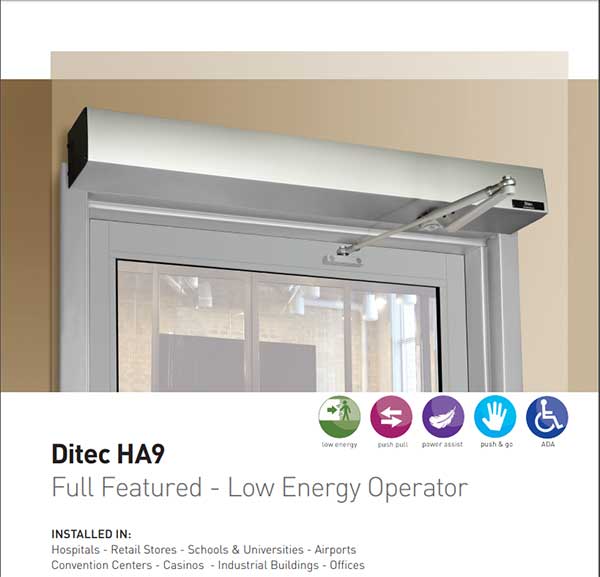

The Ditec HA9 low-energy operator comes loaded with features while offering the same quiet, dependable operation you've come to expect in the low-profile header size you love. The HA9 is perfect for high-traffic locations including schools & universities, hospitals, retail stores, airports, convention centers, casinos, industrial buildings and offices.
Antique Bronze Finish
Available in 75" for Double Doors
Left Pull Arm - Right Pull Arm

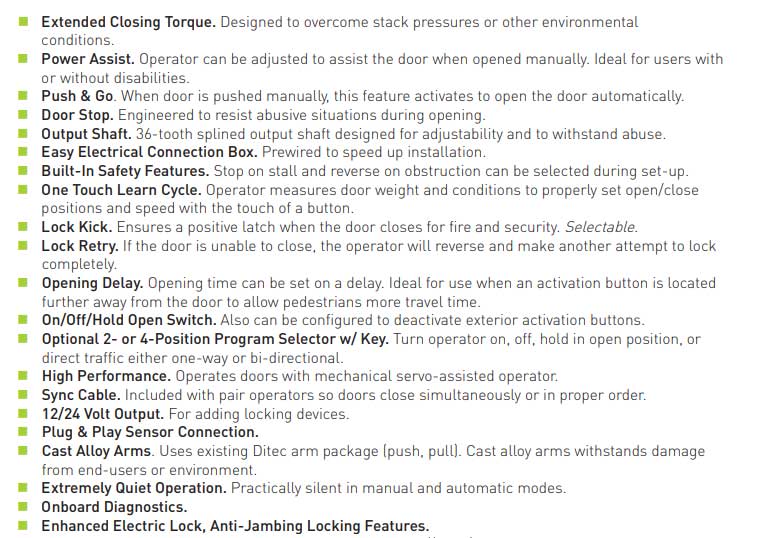

- Non-handed
- Easy manual door operation
- Power assist
- Push & Go
- One-touch Teach Button
- Lock Kick
- Plug-n-play design for fast, trouble-free installation
- Stack Pressure Compensation
- Electric-strike Integration
- Sync cables are included with pair operators to ensure doors close simultaneously or in proper order
- UL325/UL10C certified
- $3,778.20
-
$4,533.84 - $3,778.20
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| Application | Double Doors |

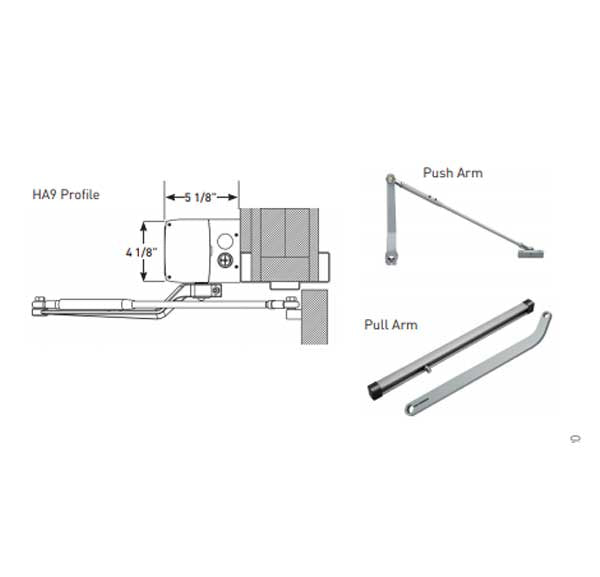

| Header Profile Dimensions | 4 1/8" x 5 1/8" |
| Motor Type | Electro-Mechanical |
| Manual Opening/Closing Force | Adjustable 5 to 30 lbs. |
| Push Reveal | Up to 14" |
| Pull Reveal | Up to 2 3/8"" |
| Handing | Pull Arm -Non Handed |
| Operating Voltage | 120 VAC |
| Manual Opening/Closing Force | Adjustable 5 to 30 lbs |
| Push or Pull Application | Pull |
| Door Width Limit | Up to 48” (single); 96” (pair) |
| Microprocessor Control | Yes |
| On/Off/Hold Open Switches | Standard (key switch optional) |
| Auxiliary Power Output | 24 VDC @ 1/2 amp |
| Additional inputs/outputs for extra functions (sensors, electric locks, mode switches, etc) |
Yes |
| Surface Mounting | Yes |
| UL/CUL Listing for UL 325/UL10C | Yes |
| ANSI A156.19 Compliant: | Yes |
Watch Video on the HA9 and It's Easy to Use Features
Watch Complete Installation Video Here
Downloads:
