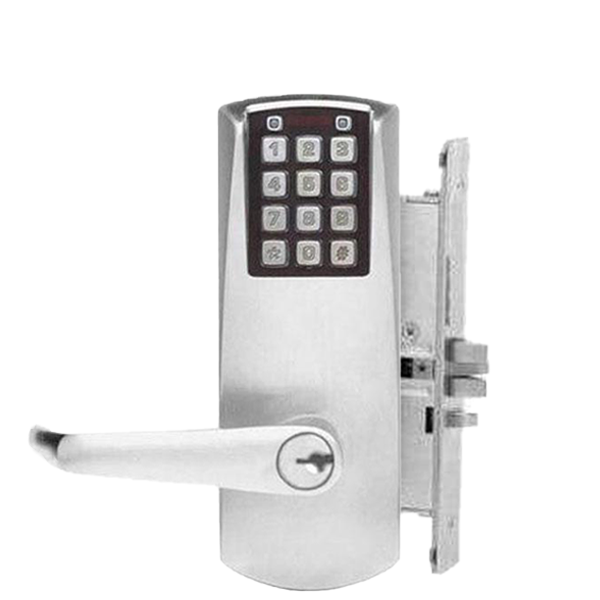

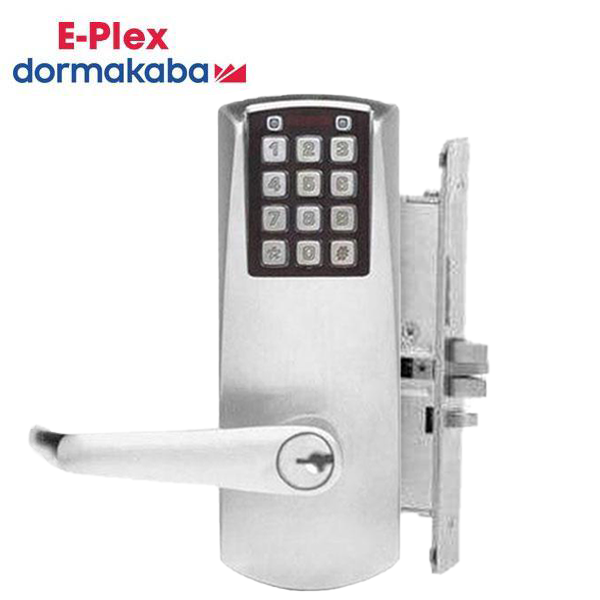

E-Plex - E2066XS - Electronic Pushbutton Mortise Lever Lock - Schlage 'C' - 2¾" Backset - Satin Chrome - Grade 1 - UHS Hardware
E-Plex - E2066XS - Electronic Pushbutton Mortise Lever Lock - Schlage 'C' - 2¾" Backset - Satin Chrome - Grade 1 - UHS Hardware

E-Plex - E2066XS - Electronic Pushbutton Mortise Lever Lock - Schlage 'C' - 2¾" Backset - Satin Chrome - Grade 1

In Stock
SKU: KABA-E2066XSLL62641
NSID: 2832

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$470.17
$707.00
$470.17

The E-Plex 2000 Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. No deadbolt included. Key override Included

Features:

  • Requires no wiring to or through the door—eliminates risk of damage from pinched wires that can result in costly callbacks
  • Multiple Users—100 Codes
  • Non-handed; pre-assembled for left-hand door installations—easily changed in the field
  • The most recent 1,000 events are recorded in memory, including the use of mechanical key override. Software is required to view Audit Events.
  • Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software
  • Five different authority levels allow who has access to specific lock functions, including: Master, Manager, Access User, Service, and Maintenance Level.
  • Code length—adjustable to accept 4 to 8 digits
  • Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
  • Re-lock time—adjustable from 2 to 20 seconds


Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications:


Construction:

Heavy-duty commercial lockset, solid cast exterior housing, solid cast levers

Locking Device:

STD Mortise 1¼" (32 mm) face plate no deadbolt (non-handed)

Numeric Keypad:

Vandal resistant, solid metal pushbuttons

Handing:

Non-handed, pre-assembled for left-hand door installation, easily changed in the field

Finish:

Satin Chrome 626

Key Override:

Key-In-Lever, Kaba Cylinder (Schlage "C" Keyway) included

Backset:

2¾" (70 mm) backset

Latch:

¾" (19 mm) latch, 1" (25 mm)

Minimum Stile Recommended:

5" (127 mm)

Door Preparation:

ASA 86 door preparation with three additional through bore holes

Door Thickness:

1¾" (44 mm) to 2¼" (57 mm); pre-assembled to accommodate doors 1¾" (44 mm) to 2⅛" (54 mm)

Accessibility Standard:

Americans with Disabilities Act (ADA)

Certification:

ANSI/BHMA Grade 1 Certified

Fire Rating:

UL 10C fire rated

Warranty:

3 years manufacturer warranty


Downloads:

    Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
