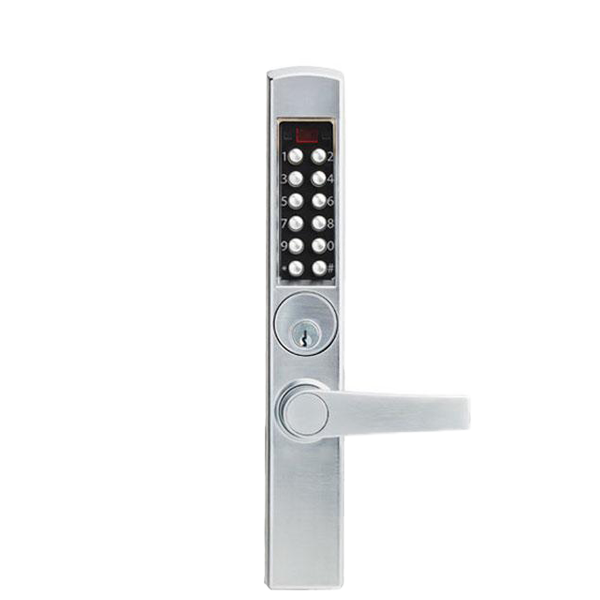

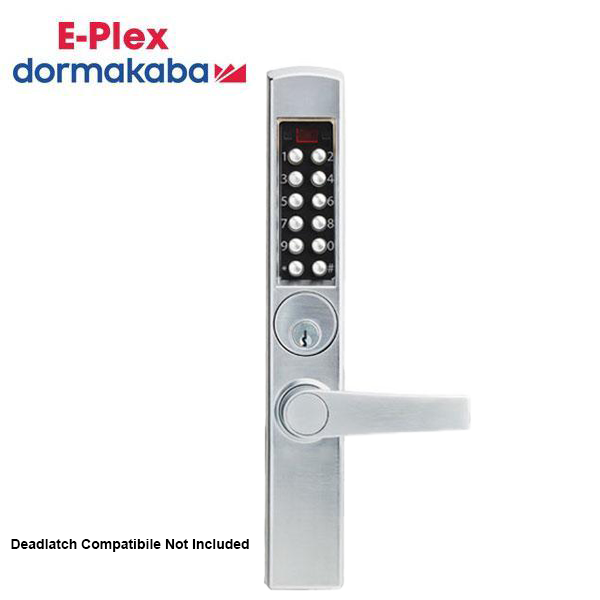

E-Plex - E3265 - Electronic Pushbutton Mortise Narrow-Stile Lever Lock - Deadlatch - Schlage 'C' - Satin Chrome - Grade 1
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $707.40
-
$768.42 - $707.40
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The E-Plex 3200 Series provides exterior access by combination, while allowing free egress. This electronic pushbutton narrow stile lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Mortise Dead Latch for Adams Rite. Not Included.
Features:
- No wire installation—eliminates wiring to or through the door—no risk of pinched wires
- Multiple Users—3,000 Codes
- Audit Trail 30,000 Events
- Locks are programmed with required Enterprise Software—simplifies management of doors and users for larger facilities as number of users and access points grow
- PIN access
- Five different levels (Master, Manager, Access User, Service, Maintenance) allow who has access to specific lock functions
- Code length: adjustable to accept 4 to 8 digits
- Anti-tamper lockout: adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
- Re-lock time: adjustable from 2 to 20 seconds
Specifications:
Construction: |
Extra heavy-duty lockset, solid cast housing, solid cast lever or wear tested for extensive use in indoor and outdoor applications |
Locking Device: |
Mortise Dead Latch for Adams Rite 4070, 4510, 4520, 4530, 4710, 4720, 4730, 4900, and 4920AN. Also fits 8400 Mortise Exit. Not Included. |
Numeric Keypad: |
Vandal resistant, solid metal pushbuttons |
Handing: |
Non-handed, easily changed in the field |
Finish: |
Satin Chrome 26D (626) |
Key Override: |
Mortise, Kaba Cylinder (Schlage "C" Keyway) included |
Backset: |
31⁄32" (25 mm) minimum |
Minimum Stile Recommended: |
2" (51 mm) |
Door Preparation: |
Easily installs on narrow stile doors with four mounting screws |
Door Thickness: |
1¾" (44 mm) |
Accessibility Standard: |
Americans with Disabilities Act (ADA) |
Certification: |
ANSI/BHMA Grade 1 Certified |
Warranty: |
3 years manufacturer warranty |
