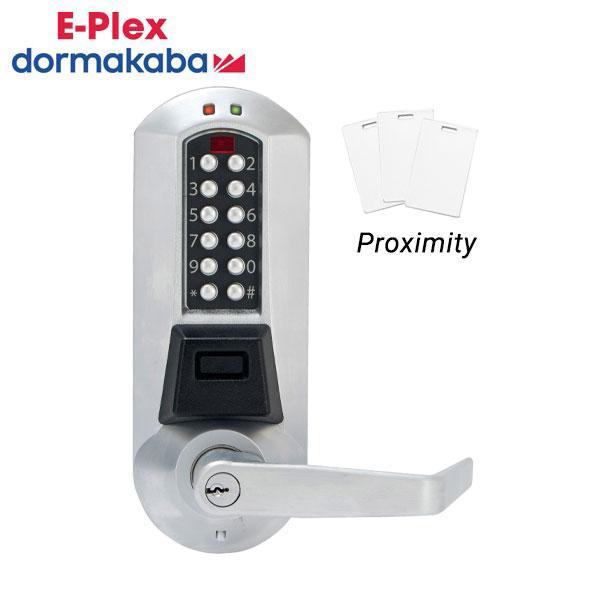

E-Plex - E5710 - Electronic PROX Pushbutton Exit Trim Lock - Schlage 'C' - Winston Lever - Satin Chrome - Grade 1
E-Plex - E5710 - Electronic PROX Pushbutton Exit Trim Lock - Schlage 'C' - Winston Lever - Satin Chrome - Grade 1
E-Plex - E5710 - Electronic PROX Pushbutton Exit Trim Lock - Schlage 'C' - Winston Lever - Satin Chrome - Grade 1
E-Plex - E5710 - Electronic PROX Pushbutton Exit Trim Lock - Schlage 'C' - Winston Lever - Satin Chrome - Grade 1
E-Plex - E5710 - Electronic PROX Pushbutton Exit Trim Lock - Schlage 'C' - Winston Lever - Satin Chrome - Grade 1
E-Plex - E5710 - Electronic PROX Pushbutton Exit Trim Lock - Schlage 'C' - Winston Lever - Satin Chrome - Grade 1
E-Plex - E5710 - Electronic PROX Pushbutton Exit Trim Lock - Schlage 'C' - Winston Lever - Satin Chrome - Grade 1

E-Plex - E5710 - Electronic PROX Pushbutton Exit Trim Lock - Schlage 'C' - Winston Lever - Satin Chrome - Grade 1

$772.90 $1,455.00
Available: In Stock
Wishlist
  • Product SKU: KABA-E5710XSWL62641
  • KABA-E5710XSWL62641
    Item Number: 8270

    The E-Plex 5700 Electronic Pushbutton Lock Series has up to 3,000 Users, 30,000 Audit Events, and supports PIN only, Prox Card only, and PIN + Prox card.

    Features:

    • E-Plex’s LectroBolt eliminates running wires to or through the door—no risk of damage from pinched wires that can result in costly callbacks
    • 3,000 users (per door) with software; 300 in LearnLok mode
    • The most recent 30,000 lock events are recorded in memory, including use of the mechanical key override
    • Locks are programmed simply via keypad using LearnLok Feature without any software, or with optional E-Plex Enterprise Software to manage a large number of doors and users
    • Non-handed, pre-assembled for left-hand door installations—easily changed in the field
    • Key Override: Key-in-Lever
    • Access schedules—Up to 16 different access schedules may be programmed into lock.
    • Holiday/Vacation—Up to 32 different holiday/ vacation blocks may be programmed into lock
    • PIN and/or Smart card access
    • Five different levels allow who has access to specific lock functions, including: Service Codes—programmed for one-time access or "come-and-go" access for 1 to 24 hours
    • Code length—adjustable to accept 4 to 8 digits
    • Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
    • Re-lock time—adjustable from 2 to 20 seconds


    $772.90

Specifications:


Construction:

Extra heavy-duty Grade 1 lock; cylindrical lockset, solid cast housings; solid castzinc levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications

Locking Device:

Exit Trim

Numeric Keypad:

Vandal resistant, solid metal pushbuttons

Handing:

Non-handed: pre-assembled for left-hand door installation—easily changed in the field

Finish:

Satin Chrome 26D (626)

Key Override:

K-I-L Kaba Cylinder (Schlage "C" Keyway) included

Backset:

Varies by Exit Device

Minimum Stile Recommended:

5" (127 mm)

Exit Device Hub Rotation:

Up to 60º

Door Preparation:

ASA 161 (Easily installs on door preparation with two additional through bore holes (wood or metal doors)

Door Thickness:

1 3 ⁄4" (44 mm) to 2 1 ⁄4" (57 mm) Pre-assembled to accommodate doors 1 3 ⁄4" (44 mm) to 2 1 ⁄8" (54 mm)

Accessibility Standard:

Americans with Disabilities Act (ADA)

Certification:

ANSI/BHMA Grade 1 Certified

Fire Rating:

3-hour UL/ULC fire rating for "A" label doors

Warranty:

3 years manufacturer warranty


Exit Device Compatibility:

  • Arrow S1250/S3883F/S3800
  • Black & Decker (K-2) QED111/112
  • Cal Royal 9800 & 2200
  • Corbin Russwin ED5200/5200A
  • Detex 1001 BP1, 10/F10 Series
  • Dorex 8500R/8500F, 9500PR/9500FR
  • Dorma 9300/F9300
  • Monarch 18R*, F18R*
  • Precision 21/FL21
  • Sargent 2828/3828/8810E/8800/8888
  • Von Duprin 22/22F, 98/98F, 99/99F, XP98/99
  • Yale YME2100/2100/7100

*(requires special K-Hub Adapter)

Downloads:


Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
