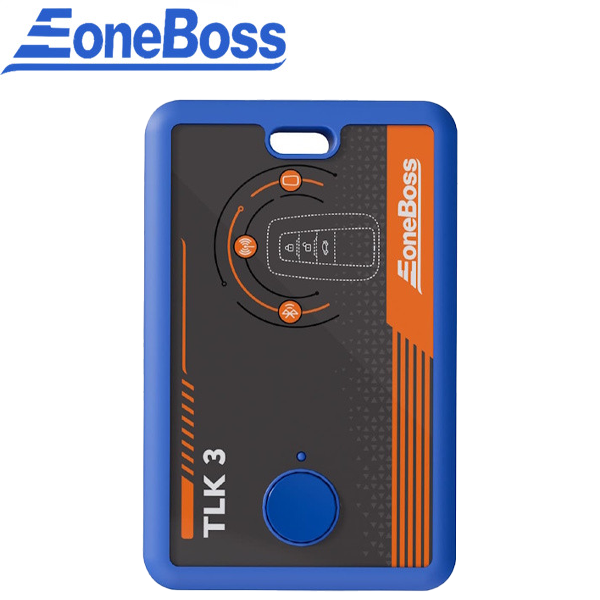

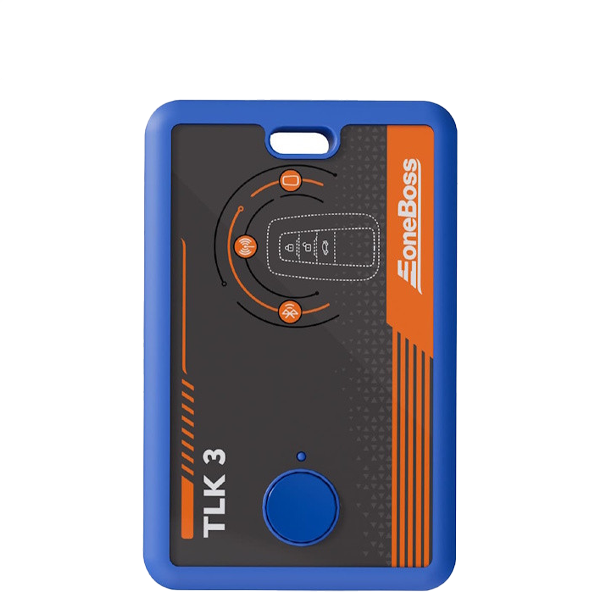

EoneBoss - TLK3 - Toyota / Lexus / Subaru Smart Key Unlock Tool
Out of Stock
SKU:
EOB-TLK3
NSID:
95656
- $175.00
-
$210.00 - $175.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
TLK3 is for smart key identification, vehicle signal capture, and aftermarket key unlocking for Toyota, Lexus, and Subaru.
The EoneBoss TLK3 is a professional-grade automotive tool that streamlines key generation for Toyota, Lexus, and Subaru vehicles by enabling precise data identification, signal capture, and aftermarket key unlocking.
Functions:
Support for Toyota / Lexus / Subaru Smart Keys
-
Smart Key Identification:
With just a few simple steps, the TLK3 can automatically identify and capture the current key's frequency, frequency sequence, and chip type. Once the data is read, you can generate a corresponding smart key using an ET key, or select another third-party smart key based on the information. -
All Keys Lost (AKL) Data Capture:
The TLK3 can directly capture signals from the vehicle's ignition coil to identify the actual key frequency, frequency sequence, and chip type. After reading the data, you can proceed to generate a corresponding smart key using an ET key, or select other third-party smart keys based on the captured information. -
Aftermarket Keys Unlocking:
No disassembly or wiring required. Locked aftermarket keys can be directly reset to an unlocked (virgin) state. Once unlocked, the key can be programmed to the vehicle normally via OBD matching
Specifications:
| Manufacturer | EoneBoss |
| Packing Dimensions | 136 x 78.5 x 17.5mm |
| Input Interface | USB Type-C |
| Battery Capacity (with battery version) | 3.7V, 450mAh |
| Wireless Frequency Band | 2.4GHz / 134.2KHz / 125KHz / SUB-1G |
| RF Transceiver | High Sensitivity (-94dBm@BLE) |
| Working Temperature | -10°C~50° C |
| Dimensions | 61.5x96.5x12.5mm |
| Material | ABS environmental protection material |
| Core Chip | 32bit ARM Cortex-M4 core |
| Bluetooth | Single-mode BLE 5.0 |
| Input Voltage | 5V DC, 500mA |
| Transmitter Power | Up to +7.5 dBm |
| Storage Temperature | -20°C~70°C |
Key programming machines cannot be returned after they have been registered
