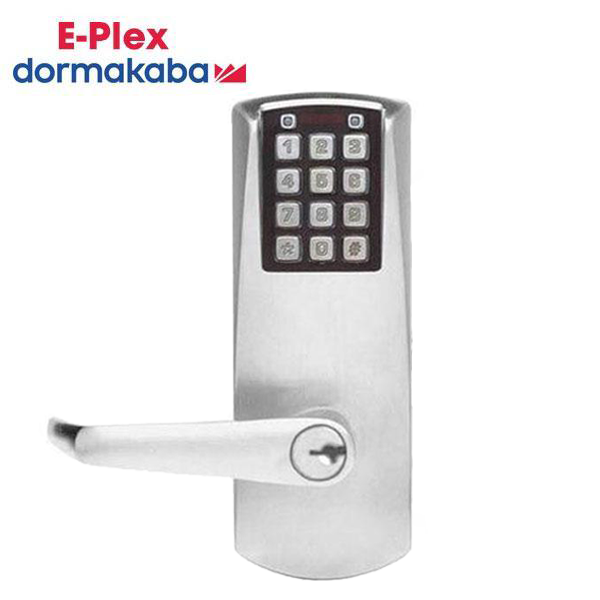

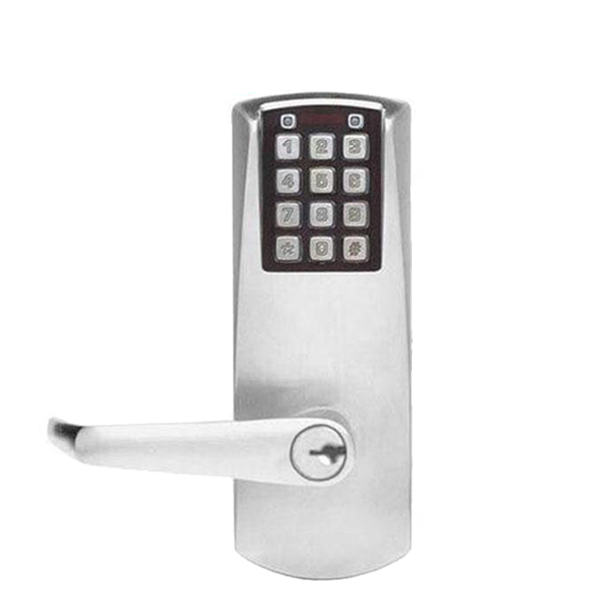

E-Plex - E201UXS - Electronic Pushbutton Exit Trim Lever - Schlage 'C' - Satin Chrome - Grade 1
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $459.46
-
$500.95 - $459.46
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The E-Plex 2000 Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Exit Trim only, see compatibility list below.
Features:
- Requires no wiring to or through the door—eliminates risk of damage from pinched wires that can result in costly callbacks
- Multiple Users—100 Codes
- Non-handed; pre-assembled for left-hand door installations—easily changed in the field
- The most recent 1,000 events are recorded in memory, including the use of mechanical key override. Software is required to view Audit Events.
- Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software.
- PIN access
- Five different authority levels allow who has access to specific lock functions, including: Master, Manager Level, Access User, Service, and Maintenance Level
- User Parameters: Code length—adjustable to accept 4 to 8 digits
- Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
- Re-lock time—adjustable from 2 to 20 seconds
Specifications:
Construction: |
Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers. |
Locking Device: |
Exit Trim—Rim, Mortise, Surface Vertical Rod |
Numeric Keypad: |
Vandal resistant, solid metal pushbuttons |
Handing: |
Non-handed, pre-assembled for left-hand door installation—easily changed in the field |
Finish: |
Satin Chrome 26D (626) |
Key Override: |
Key-In-Lever, 1539 6-pin cylinder—Schlage "C" Keyway included |
Backset: |
Varies by Exit Device & Mounting Hardware (Not Included) |
Minimum Stile Recommended: |
5" (127 mm) |
Door Preparation: |
ASA 161 (easily installs on door preparation with three additional through bore holes; wood or metal doors) |
Door Thickness: |
1¾" (44 mm) to 2¼" (57 mm); pre-assembled to accommodate doors 1¾" (44 mm) to 2⅛" (54 mm) |
Accessibility Standard: |
Americans with Disabilities Act (ADA) |
Certification: |
ANSI/BHMA Grade 1 Certified |
Fire Rating: |
UL 10C fire rated |
Warranty: |
3 years manufacturer warranty |
Exit Trim Compatibility:
- Arrow Rim # 3800
- Corbin Rim # 5200
- Detex Rim # F1001Detex Surface Vertical Rod #s 20/F20
- Dorma Rim # F9300
- Precision Rim #s 21/FL21
- Precision Surface Vertical Rod #s 22/FL22
- Sargent Rim # 8800
- Von Duprin Concealed Vertical Rod #s 9847/9947
- Von Duprin Mortise #s 9875/9975
- Von Duprin Rim #s 89/99
- Von Duprin Surface Vertical Rod #s 9827/9927
- Yale Concealed Vertical Rod # 7160
- Yale Rim # 7100
ATTENTION: Compatibility is subject to change if modifications are made by Exit Device manufacturers without Kaba's knowledge.
Downloads:
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
