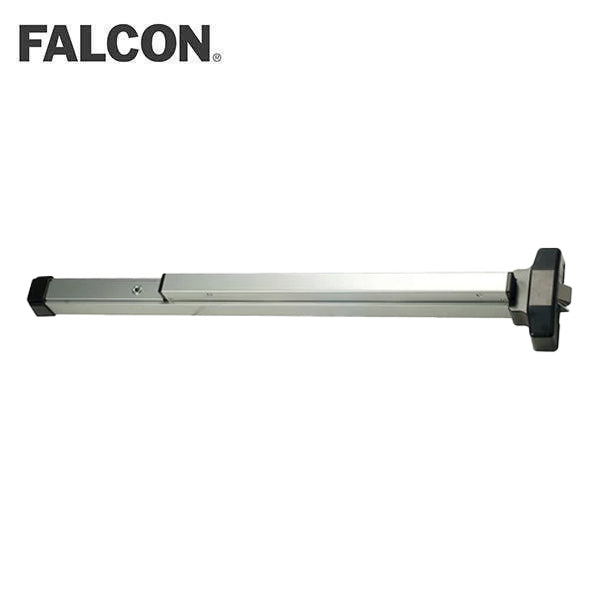

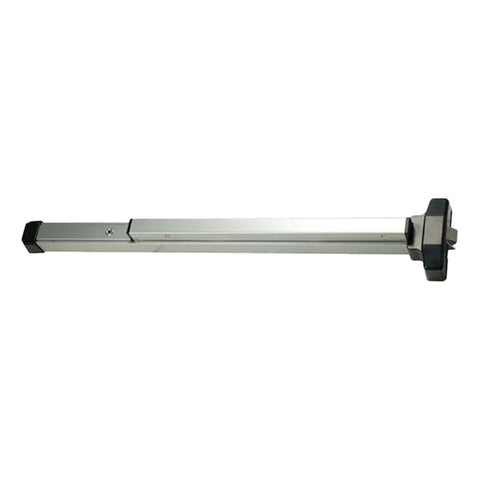

Falcon - 19-R-EO - Rim Type Pushpad Exit Device - Narrow Stile Pushpad - 48" - Exit Only - Non-Handed - US28 - Aluminum Painted - Grade 1
Available to Order
SKU:
FAL-19-R-EO-SP28-4
NSID:
74195
- $204.20
-
$245.04 - $204.20
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Falcon 19 Series narrow stile exit devices provide value and dependability on light to medium-duty door applications. They can be mounted on the interior or exterior single or double doors, where traffic is not consistently heavy. Ideal for commercial, multi-family, office, retail, and other medium-traffic installations, the 19 Series exit devices are an affordable and reliable choice. A certified ANSI/BHMA A156.3-2001 Grade 1 exit device, they are non-handed and cover a 161-door prep.
Specifications:
| Hand | Non-Handed |
| Usage | Medium Duty |
| Stile | 1-3/4" minimum |
| Fire Rating | Non-Fire-Rated |
| Stile Type | Narrow |
| Latchbolt | Deadlatching, 3/4" |
| Door Applications | 1-3/4" Metal, Wood or Aluminum Doors |
| ANSI Grade | Certified ANSI A156.3-2001 Grade 1 Standards |
| Strike | F570 |
| Function | "EO" Exit Only |
| Commercial/Residential | Commercial |
| Trim | (Does NOT Include Trim), Accepts Various Trim |
| Dogging Options | Hex Key Dogging |
| End Caps | Black Plastic End Caps |
| Manufacturer | Falcon |
