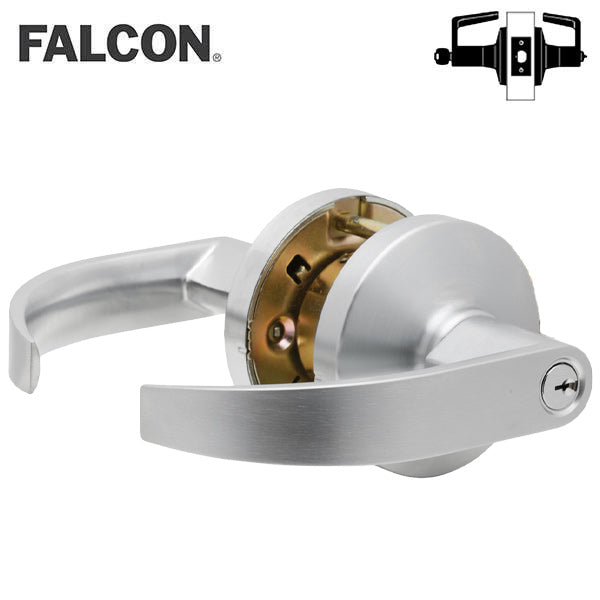

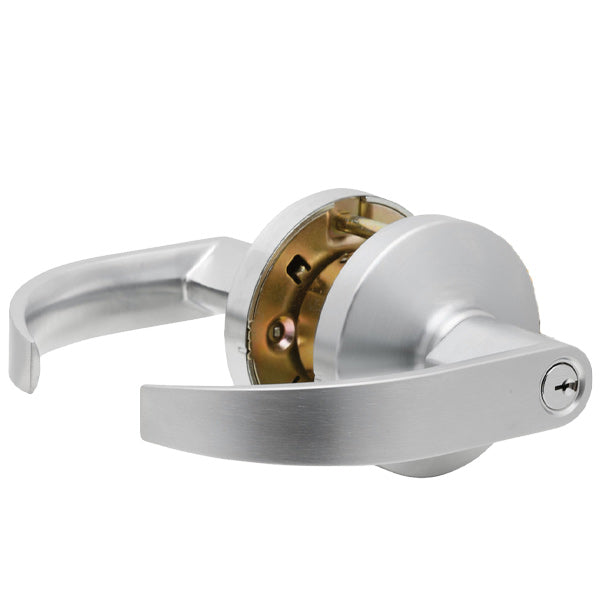

Falcon - K511CP6D - Push-Turnbutton Keyed Cylindrical Lock - Dane Lever - Entry/Office - 2 3/4" Backset - Satin Chrome - Grade 2
Available to Order
SKU:
FAL-K511CP6D-Q-626
NSID:
76571
- $151.25
-
$181.50 - $151.25
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Falcon K Series push turn button keyed cylindrical lock combines durability, versatility, and affordability. Designed for high-traffic, high-abuse areas, it boasts ANSI/BHMA Grade 1 certification for superior security and reliability. The K Series features conventional cylinders and small format interchangeable cores (SFIC) compatible with other manufacturers' SFIC products. Available in various functions, lever styles, and finishes, it offers flexible solutions for any commercial space. The lock supports Falcon key sections and Schlage C keyway, now master-keyed across the Falcon product line, making it an excellent choice when quality matters but budget is a priority.
Features:
- Clutching lever design allows the lever to move when locked without unlatching the door, preventing damage to the chassis.
- Four screws through-bolted for added strength, providing high security and peace of mind.
- Lever security caps to help prevent undesired lever removal and lever sag after continual use.
- Conventional cylinders or interchangeable core keying compatible with SFIC products from Falcon or other manufacturers.
- Non-handed levers for easy field installation.
Specifications:
| Series | K Series |
| Grade | Grade 1 |
| Duty Level | Heavy Duty |
| Keyed Function | Single Cylinder |
| Standard Cylinder | P- 6-Pin, keyed 5-pin, Falcon G keyway, Keyed Different |
| Standard Latch | 1-1/8" x 2-1/4", Square Corner faceplate, 1" housing diameter, 1/2" Throw, 2-3/4" backset |
| Standard Strike | 1-1/4" x 4-7/8", ANSI square curved lip corner, no box |
| Fire Rated | Yes |
| Backset | 2-3/4" |
| Door Thickness | 1-3/8" to 2-1/4" |
| Handing | Non-Handed |
| ANSI/BHMA | F109-1 |
| Product Subgroup | Bored Locksets |
| Product Type | Knobs and Levers |
| Keyed | Yes |
| Substrate | Brass or Steel, Zinc plated and dichromated for rust resistance. Springs are stainless steel |
| Commercial/Residential | Commercial |
| Function | Entrance/Office |
| Lock Type | Cylindrical |
| UL Listing Type | UL Listed (3 hour A Label) |
| Warranty | 10 year Manufacturer's limited warranty |
