GAAB - T300-04 & T800M14B - Panic Exit Device and Lever Exit Trim - Modular and Reversible - for 33" Single Doors - Single Doors - Satin Chrome
In Stock
SKU:
GAB-T8304-KIT
NSID:
26033
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $99.00
-
$118.80 - $99.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

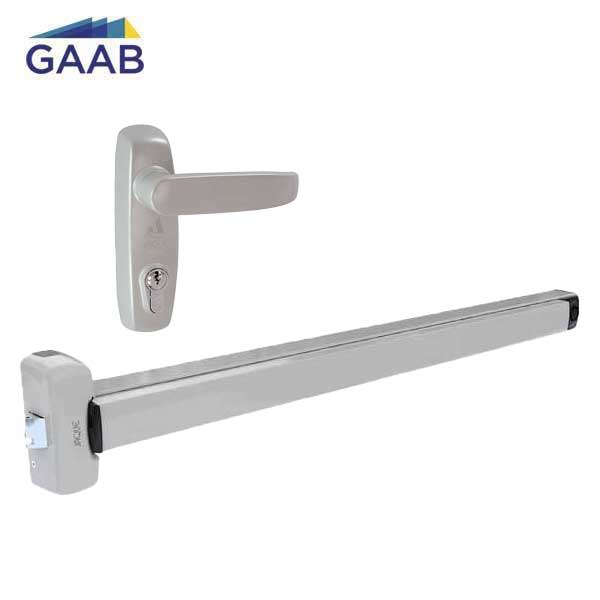

This T300-04 Panic Exit Device with T800M14B Lever Exit Trim will work seamlessly together to help facilitate ingress and egress. The T300-04 is modular and reversible and will work with up to 33" doors. The T800M14B is an entry function lever that is clutched and reversible. It provides additional security by adding a keyed entry function to the T300-04.
T300-04 Panic Exit Device Specifications
- Easy installation
- Modular and Reversible
- Suitable for single doors
- Can be used for double doors ( with T29 Vertical Rod Kit sold separately).
- Fully adjustable
- Dogging / undogging system
- The total nominal length of the device:
- Standard length: 33“ (850 mm)
- Minimum length: 16“ (400 mm)
- Suitable for doors up to 8’ (2440 mm) height – 4’ (1220 mm) width
- To use an exit trim with this device you MUST use a compatible Gaab Exit Trim (listed below)
- Max weight 440 lbs (200 kgs)
| Material: | Zamak-made front and back covers. 0.07 in. thickness Steel. |
| Finish: | High-performance epoxy Satin Chrome paint finish with high strength and durability. |
| Application: | For single doors. Can be used for double doors ( with T29 Vertical Rod Kit sold separately). Suitable for steel, wood, aluminum, and glass. |
| Total nominal length of the device: | Standard length: 33“ (850 mm) Minimum length: 16“ (400 mm) |
| Suitable for doors: | up to 8’ (2440 mm) height – 4’ (1220 mm) width |
| Max Weight: | 440.925 lbs. |
| Handing: | Modular and Reversible |
| Latch: | Three-point latching option for single doors. |
| Warranty: | 2-year manufacturer warranty |
| Dogging: | Includes dogging / undogging system |
| Certifications: | IRAM and INTI listed. Approved under UNE EN-1125 standards (European) Approved with 200,000 opening cycles. |
To use an exit trim with this device you MUST use a compatible Gaab Exit Trim:
GAB-T800M11
GAB-T800M14B - included in this bundle
GAB-T850M04B
GAB-R750-00

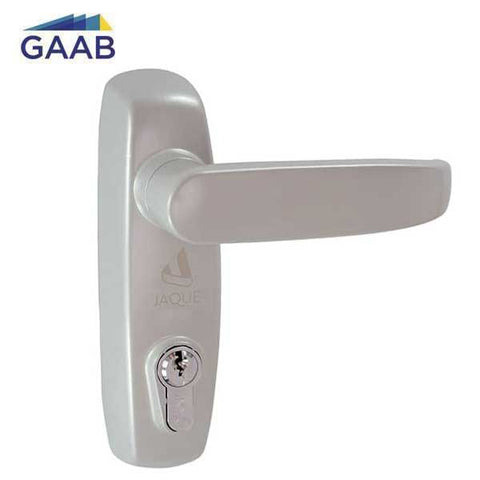

T800M14B Lever Exit Trim Specifications
| Application |
Lever Exit Trim Application For GAAB Push / Touch / Pad series Exit Devices |
| Function | Keyed Entry Function |
| Handing | Reversible |
| Door Thickness | 1-1/2″ to 2-1/2″ |
| Trim | Lever Exit Trim |
| Cylinder |
Yale Style Cylinder w/ 2 Keys |
| Finish | Grey |
| Manufacturer Warranty | 2- Year Manufacturers Warranty |
T800M14B Downloads
T300-04 Downloads
