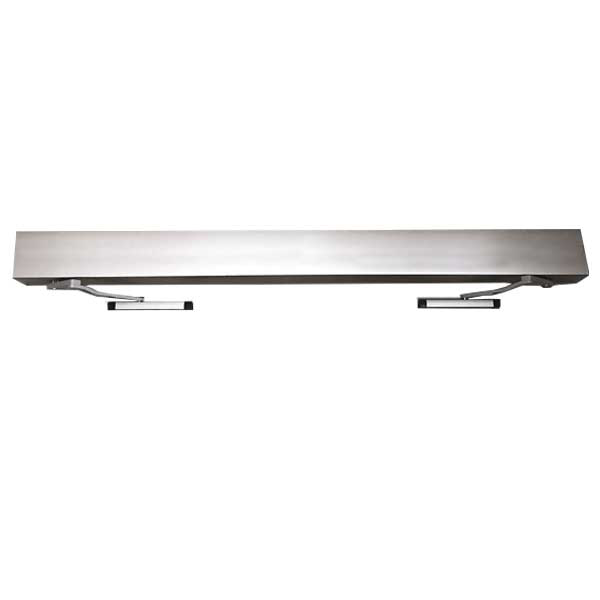

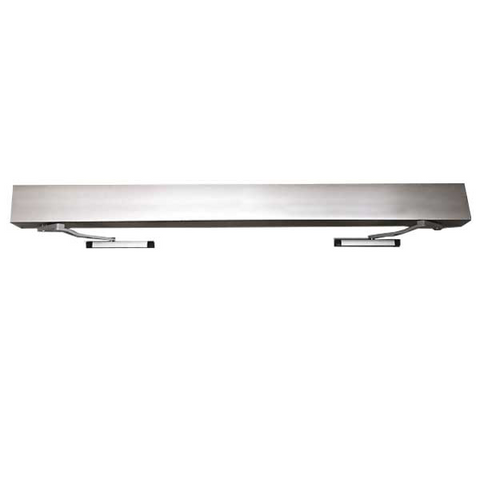

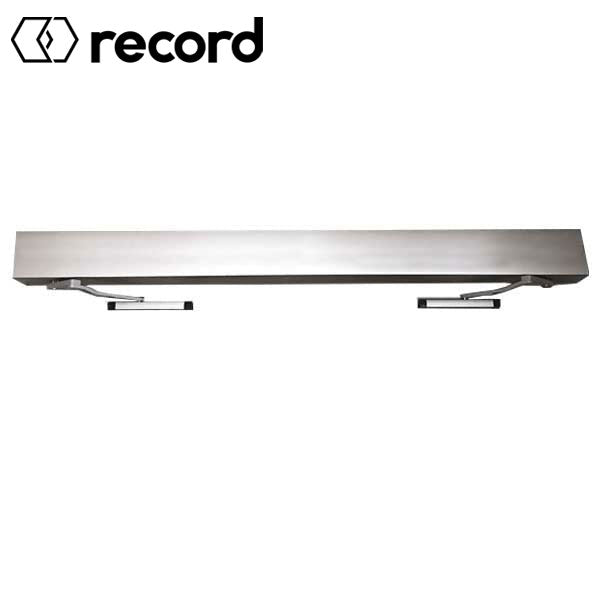

*Discontinued* Record - HA8-SP - Standard Profile Swing Door Operator - Left PULL- Right PULL - Clear Coat - 75" For Double Doors
Out of Stock
SKU:
ENT-W9-113-75
NSID:
1907
- $3,928.50
-
$4,714.20 - $3,928.50
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

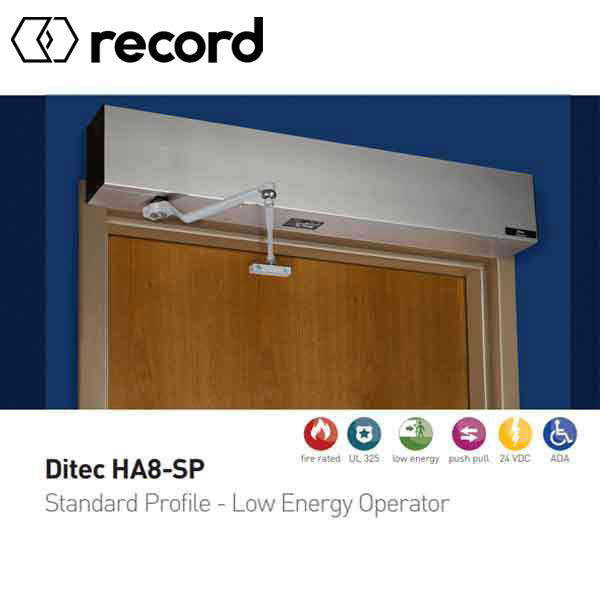

The Ditec HA8-SP is the standard profile low-energy operator that works in nearly every application, including high-traffic and exterior. The standard profile can be installed in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings, and offices.
Clear Coat Finish
Available in 75" for Double Doors
Left Pull Arm - Right Pull Arm
- Handed Operator
- Permanent lubrication means maintenance-free
- Easy manual door operation
- Ul325 / UL10C certified
- Single Doors
- $3,928.50
-
$4,714.20 - $3,928.50
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Specifications:
| Application | Double Doors |
| Motor | 1/8 HP |
| Gear Grease | High Wear Protection |
| Manual Opening/Closing Force | Adjustable 5 to 30 lbs. |
| Single and Dual Digital Control Box |
Single HA-8 w/Data, 24 VDC, 3 AMP |
| Operating Voltage (Standard) | 115VAC |
| Magnetic Limit Switches | Yes |
| Arm Connection | 1” Solid Spline Spindle |
| Adjustable Stop | Yes |
| Operator Switch | On-Off-Hold Open |
| Adjustable Spring Tension | Yes |
| Mechanical Clutch | Standard |
| Push or Pull Application | PULL |
| Easy Manual Operation | Yes |
| Surface Mounting | Yes |
| Concealed Mounting | Center Pivot, Hinge, or Offset Pivots |
| Push Reveal | 0" to 14" |
| Pull Reveal | 0" to 4" |
| Electric Strike Output Power | 24 VDC |
| Fire Door Compatibility | UL10C Approved |
| Mechanical Clutch | Standard |
| Circuit Protection | 3 amp Fuse |
| Easy Manual Operation | Yes |
| Meets ANSI 156.19 | Yes |
| Fire Door Compatibility | UL10C Approved |
Watch Complete Installation Video Here
