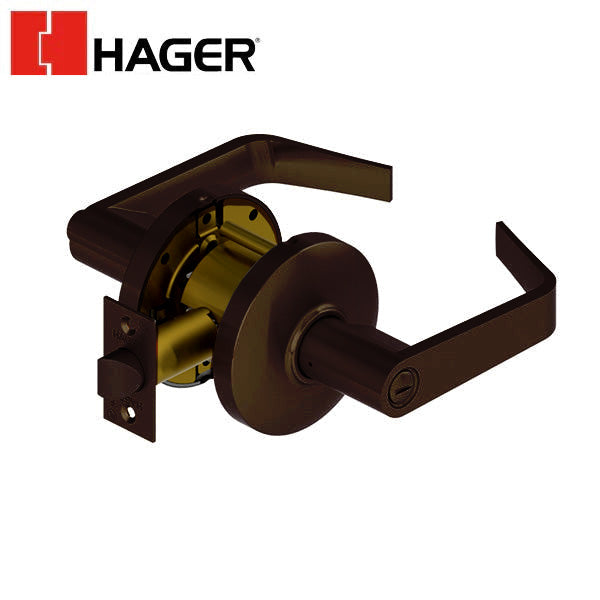

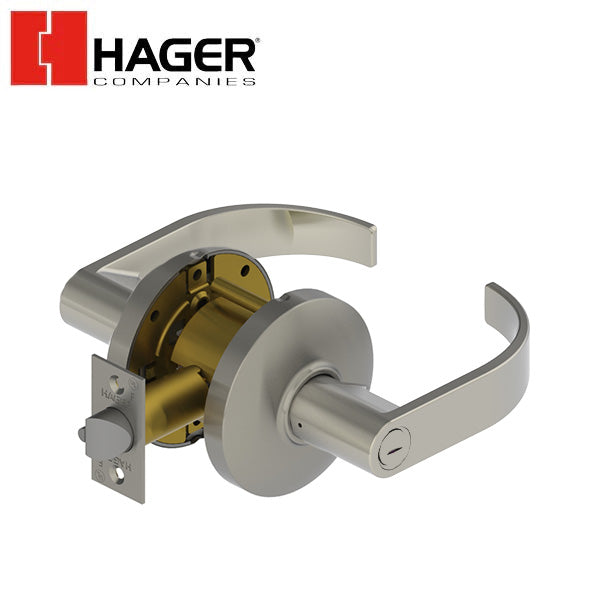

*Discontinued* Hager - 3540 - Lever - Privacy - 2-3/4" - Optional Finish - Optional Trim

Out of Stock
SKU: HGR-354002N10B000A00A
NSID:
$187.52
$225.02
$187.52


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

$187.52
$225.02
$187.52

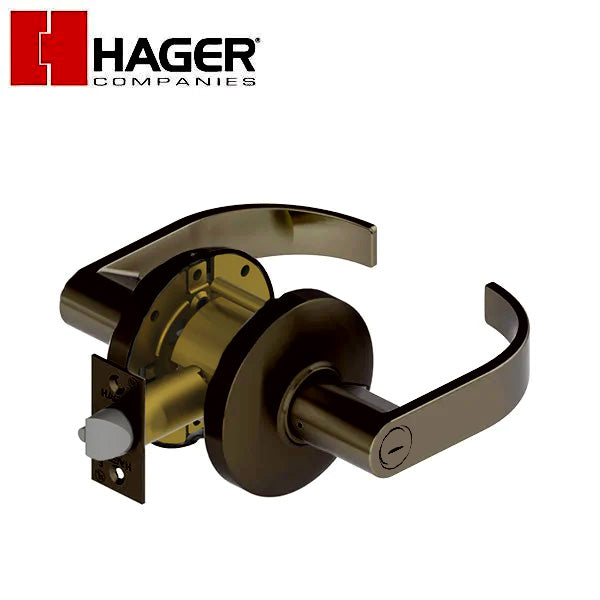

Finish: Oil Rubbed Bronze
Lever: Archer
Description
Description
x

Specs

Certifications
  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • UL10C Positive Pressure Rated
  • BHMA Certified ANSI A156.2, Series 4000, Grade 2
Functions
  • Privacy (F76A)
Lever Options

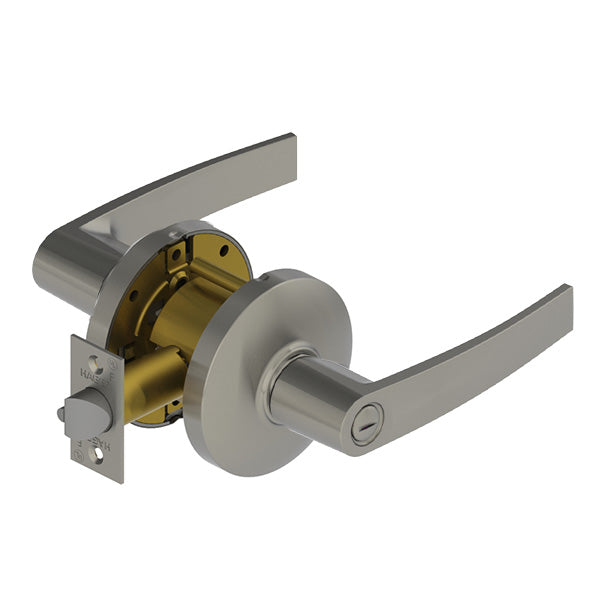

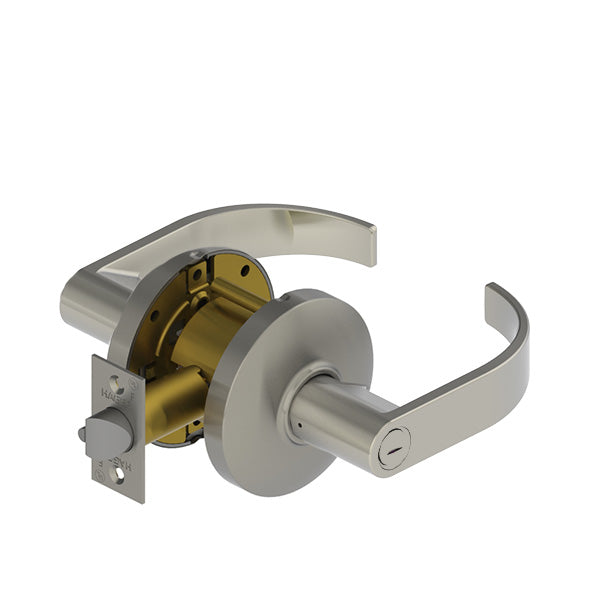

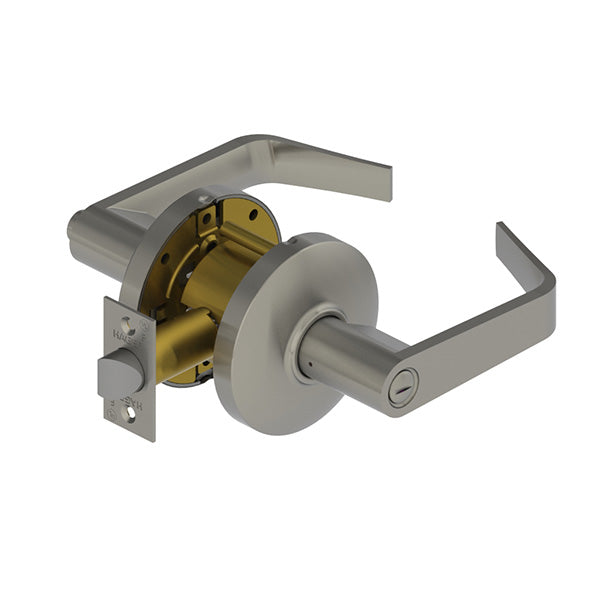

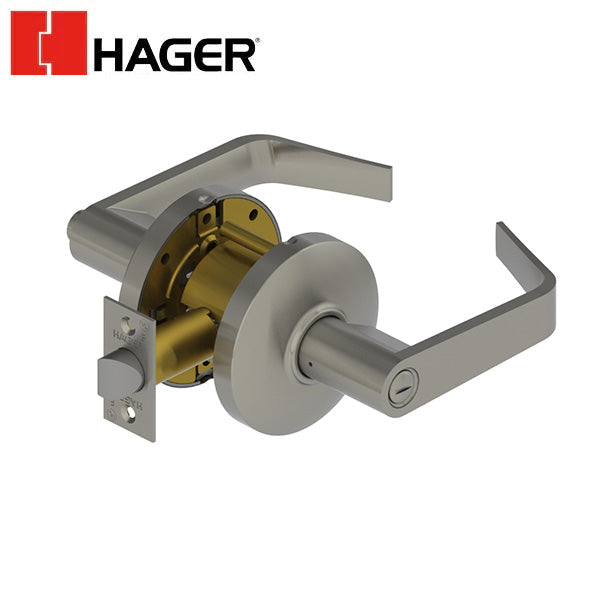

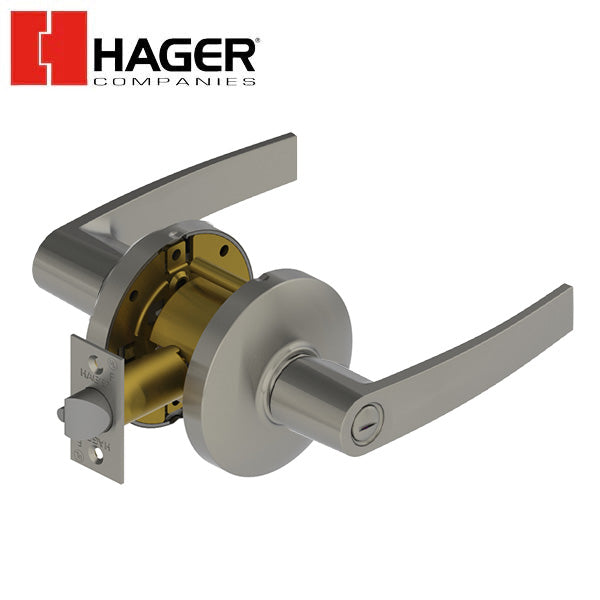

  • Archer, August and Withnell
Backsets
  • 2-3/4" (70mm)
  • 2-3/8" (60mm)
  • 3-3/4" (94mm)
  • 5" (128mm)
Door Thickness
  • 1-3/8" - 2" (35 mm - 51 mm)
Exposed Trim
  • Wrought brass, Bronze, and Stainless steel
Latchbolt Type
  • 1/2" (13 mm) throw, stainless steel
  • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
  • 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" (60 mm) backset
Notes
  • No exposed mounting screws
  • Non-handed
Options
  • Lead Lining
  • Tactile Warning
  • Split Finish
Rose Diameter
  • 3-11/32" (85 mm)
Strikes
  • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
  • Optional strikes available
Warranty
  • Lifetime


Downloads:

Note: No exposed mounting screws, Non-handed
