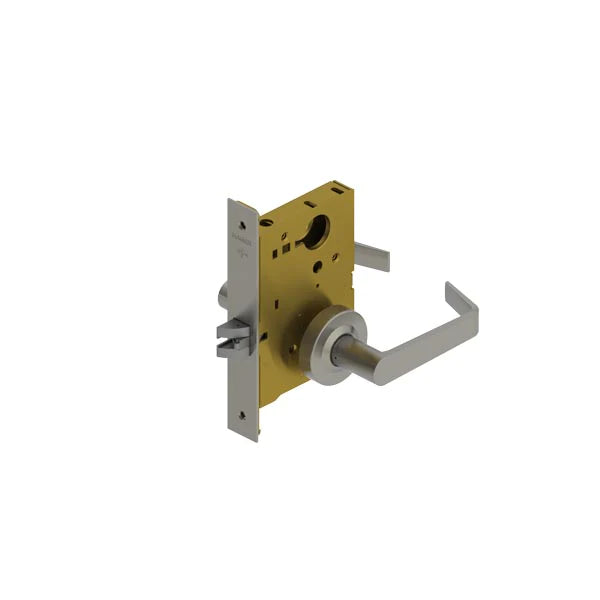

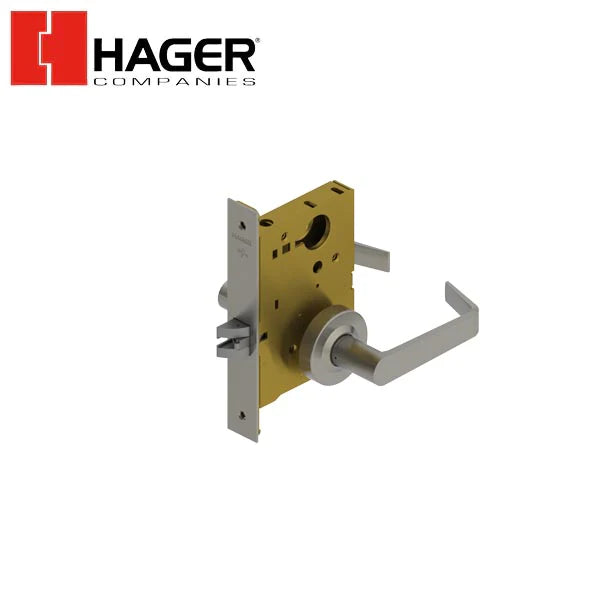

Hager - 3810 - Mortise Lever - Passage - Sectional - Satin Chrome - Withnell Lever

Ships in 1 or 2 weeks
SKU: HGR-3810S26D000W
NSID:

Please Note: This product has a lead time

$220.20
$482.10
$220.20


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specs

Certifications
  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • UL10C Positive Pressure Rated
  • BHMA Certified ANSI A156.13, Series 1000, Grade 1
Functions
  • Passage (F01)
Lever Options
  • Archer, August, Charles, Johnston, Joshua, Louis, Warren, William, and Withnell
CTC Length
  • 3-5/8" (92mm)
Backsets
  • 2-3/4" (70mm)
Door Thickness
  • 1-3/4" - 2-1/2" (45 mm - 64 mm)
  • Please specify door thickness if greater than 1-3/4" (45 mm) or the door has an offset prep
Exposed Trim
  • Cast Zinc -Standard
  • Cast Stainless Steel - Optional for Withnell (WTS) and William (WLS) only
Latchbolt Type
  • 3/4" (19 mm) throw with anti-friction tongue, all stainless steel
Notes
  • No exposed mounting screws
  • Concealed thru-bolts
  • Body is easily field reversible (shipped LHR by default)
  • Self adjusting case for beveled doors
Options
  • Tactile Warning
  • Lead Lining
  • Split Finish
  • Factory Handing Available (if specified)
  • Request to Exit (RX)
Rose Diameter
  • 2-7/16" (62mm)
Strikes
  • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
  • Optional strikes available
Warranty
  • Lifetime


Downloads:

Note: No exposed mounting screws, Concealed thru-bolts, Body is easily field reversible (shipped LHR by default), Self adjusting case for beveled doors
