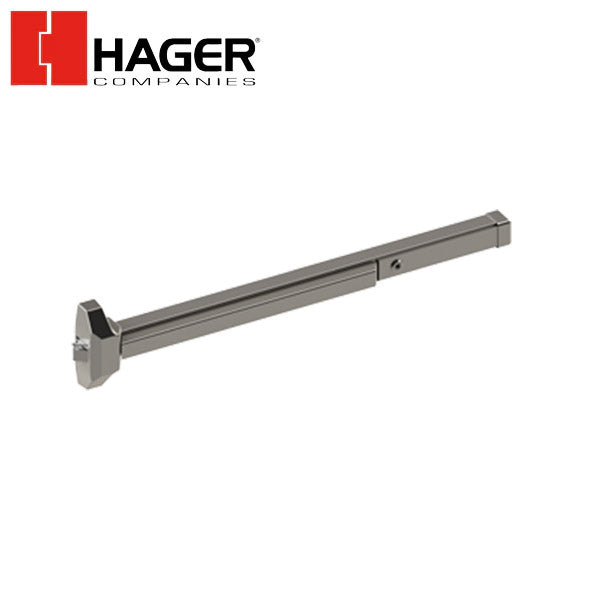

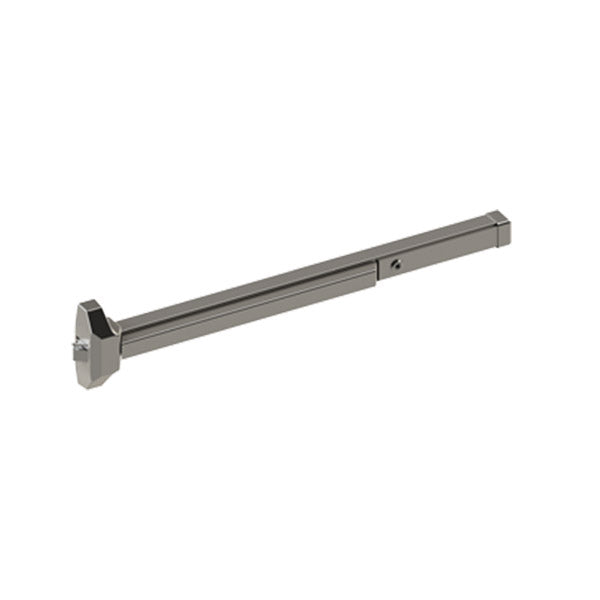

Hager - 4701 - 36" Rim Exit Device REV 2 - for 30" Doors - Exit Only - Aluminum Finish - Grade 1
- Product SKU: HGR-4701R0360000ALM
- NSID: 37353
-
HGR-4701R0360000ALM
The Hager 4700 series is designed and engineered to provide superior performance on standard stile doors in a range of light commercial and standard duty applications. Properly applied and maintained Hager 4700 series exit devices and Trim are backed by a five-year warranty. Hager 4700 series exit devices meet life safety codes and fire safety requirements. The 4700 series rim device meets the requirements for a severe windstorm resistant component. Made with superior materials and with dead locking stainless steel pullman type latchbolts, the 4700 series exit devices provide necessary security and performance at economy pricing.
Features
- ANSI/BHMA A156.3, Grade 1
- 5-Year Warranty
- AL - Aluminum Finish
| Specifications | |
|---|---|
| Door Types | Fits 1-3/4" (44.5 mm) doors standard |
| Door Width | 36'' (914mm) field sizeable to 30'' (762 mm) door |
| Stile | 4-1/2'' (114 mm) - minimum stile width required for single door and 5/8" (16 mm) stop |
| Mounting | Supplied with wood and machine screws, Thru-bolts |
| Dogging | Hex key dogging standard on panic-rated devices |
| Latchbolt | 5/8" (16mm) throw, pullman type with automatic dead-latching, stainless steel |
| Strike | Stainless steel with roller - Included standard with panic and fire-rated devices |
| Warranty | 5 year warranty |
| Finish | AL Aluminum (Sprayed Finish) |
Downloads:
