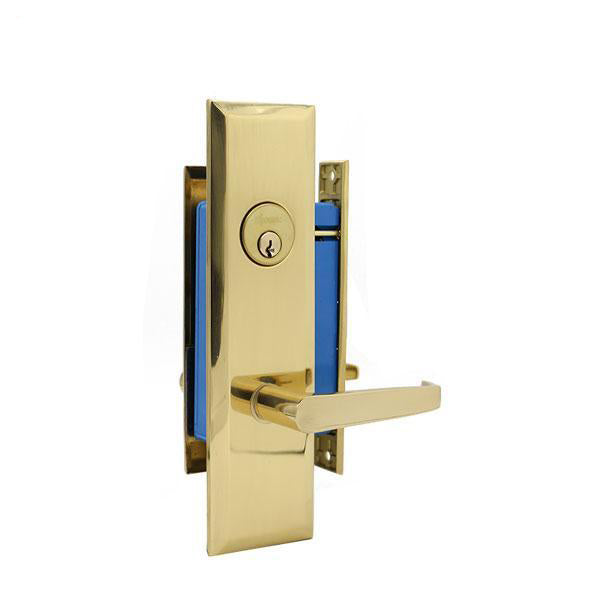

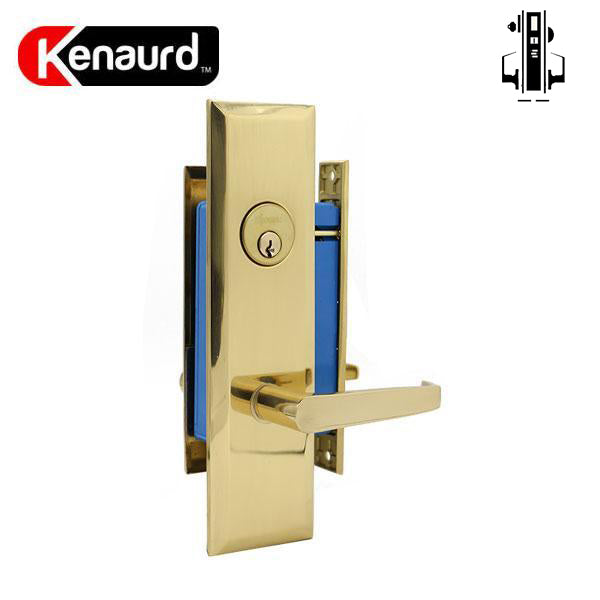

Heavy Duty Mortise Lockset w/ Lever - 2-3/4" Backset (Larger) - US3 - Polished Brass - LH
In Stock
SKU:
KMLWL234-PB-SC1-LH
NSID:
3037
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
$48.35$49.90
MEMBER PRICE
- Single Mortise Entry Lever Lockset
- Solid Brass Mortise Cylinder
- Heavy-Duty Locking System
- SC1 Cylinder w/ 2 Brass Keys
- Backset: 2-3/4" Backset
- Keyed Alike up to 10 / KA10
- Limited Lifetime Warranty
| Function: | Entrance - ANSI F08, F10 Latch by lever either side except when outside locked by stop button; then by key outside, a lever inside. Deadbolt by key outside, turn piece inside. Deadbolt deadlocks latch |
| Thru Bolts: | Thru-bolted lever/plate assemblies integrate and align with the lock body. |
| Finish: | US3 Polished Brass |
| Handing: | Left Handed |
| Exterior: | Wrought brass lever on steel reinforced brass plate, 10" x 2-3/4". Two-thru posts pass-thru lock body. Integral spring-loaded 9/32" spindle. |
| Interior: | Wrought brass lever, 2-1/4" diameter on steel reinforced brass plate, 7" x 2-1/4". Exposed 8-32 mounting. Bolts engage outside plate assembly. Integral spring loaded 9/32" spindle. |
| Cylinder: | 5-pin SC1 Mortise Cylinder 1-1/8" long |
| Door Thickness: | 1-1/4" to 1-3/4" |
| Backset: | 2-3/4" |
| Deadbolt: | Cast Brass 1" throw |
| Latch: | Solid Brass 1/2" reversible |
| Rocker Switch: | Locks or unlocks hub |
| Case: | High-pressure cast Zamac baked enamel finish |
