Heavy Duty Narrow Stile - Concealed Vertical Rod Exit Device - Grade 1 - Duranodic Bronze Finish - 48"

In Stock
SKU: KED03-CV48-DU
NSID: 3003

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$211.70$264.63
MEMBER PRICE
$190.53

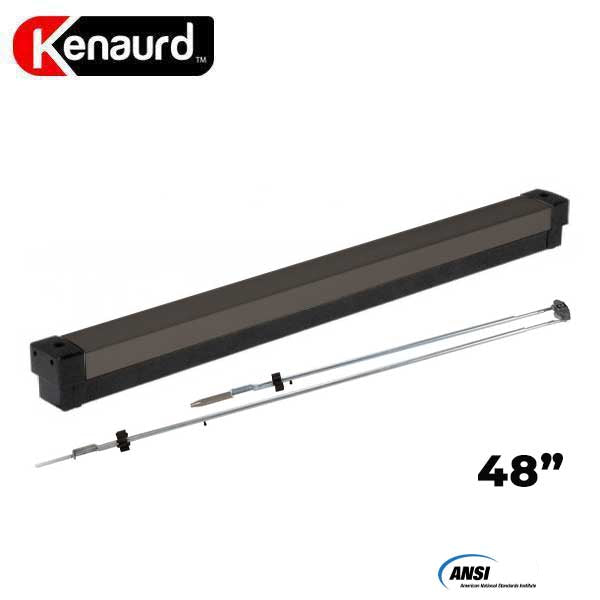

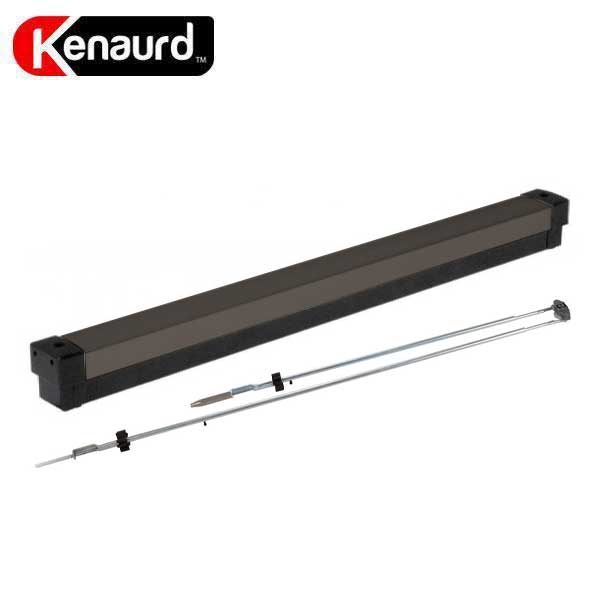

The Premium Heavy Duty Narrow Stile Concealed Vertical Rod Exit Device is 48 In. in length and comes in an Aluminum Finish. The item is suitable for doors where there is no projection on the face. Manufactured of extruded anodized aluminum, it is durable enough for the most demanding applications.

More Info Below

Call 1-800-878-6604 for Bulk / Dealer Pricing!

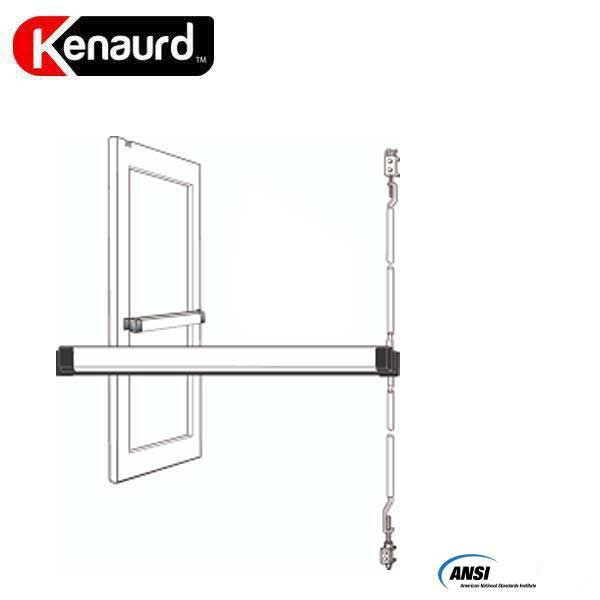

Device Type Concealed Vertical Rod Exit Device (No Trim)
Certifications UL Listed Grade 1
Device Length 42" to 48" doors
Bar Height Standard model adjusts from 30" to 44""
Door Height Standard model fits up to 8 ft door with bar height at 40"- 44"
Door Thickness Suits 1-3/4" standard up to 2-1/4"
Handing Field Reversible
Material Pushbar made of extruded aluminum, clad or anodized material
Stile Width Minimum 2" Stile
Projection 2-5/8" when fully projected
Finish Duranodic Bronze Finish
