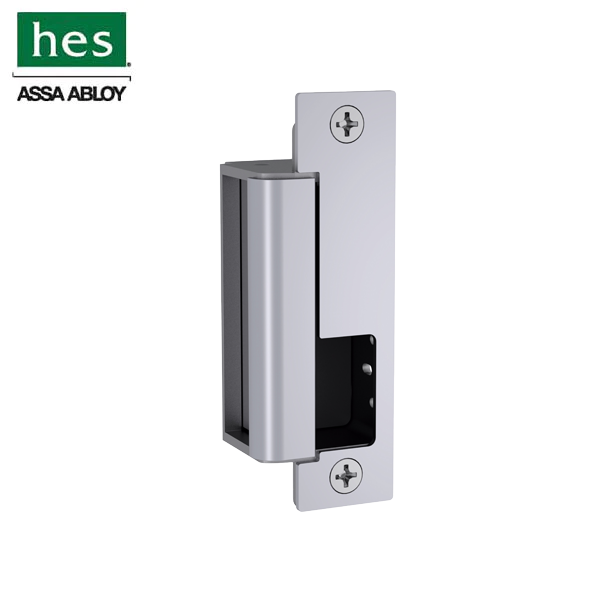

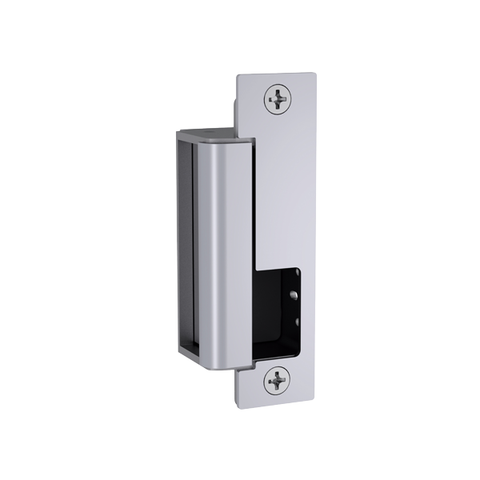

HES - 1600 - Electric Strike - Fail Safe/Fail Secure - 12/24VDC - Surface Mounted - Up To 1" Deadbolt - Satin Stainless Steel - Grade 1
Available to Order
SKU:
HES-1600-CS-630
NSID:
37681
- $365.99
-
$457.48 - $365.99
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 1600 Series Electric Strike sets a new standard in the industry by offering dynamic integrated adjustability and field configurable options compatible with any cylindrical or mortise lock. The modular design of the platform makes stocking and installing easier with interchangeable faceplates and accessories. For the first time, the aesthetics of an electric strike are complementary to other surrounding door hardware and blend in with the opening due to the fully finished design. Complete electrical strike. Includes 1LB faceplate kit for latch bolts and 1DB faceplate kit for deadbolts.
Features:
- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1 million cycles
- Field selectable fail safe/fail secure
- Non-handed
- Interchangeable faceplates and accessories
- Field replaceable components
- Fully finished faceplate, keeper, case and trim
- Field adjustable integrated shim
- Strike body depth 1-5/8" [41.3mm]
- SecuriCare five-year, no-fault, no questions asked warranty
Specifications:
| Frame Application: | Metal, Wood |
| Adjustability: | Horizontal |
| Handing: | Non-handed |
| Shim Type: | Field Adjustable |
| Latchbolt Accommodation: | 3/4" - 1" |
| Voltage: | 12/24 |
| Static Strength: | 1500 lbs |
| Dynamic Strength: | 70 ft-lbs |
| Endurance: | 1,000,000 Cycles |
| Finish: | 630 - Satin Stainless Steel |
| Warranty: | 5 Year |
| Certifications: | UL 1034, UL 294, UL 305, Grade 1, RoHS Compliant |
