HES - 8500 - Complete Electric Strike - Fail Safe/Fail Secure - 12/24VDC - Up To 3/4" Throw Latchbolt - Satin Stainless Steel - Grade 1
Available to Order
SKU:
HES-8500-630
NSID:
71553
- $353.39
-
$407.05 - $353.39
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

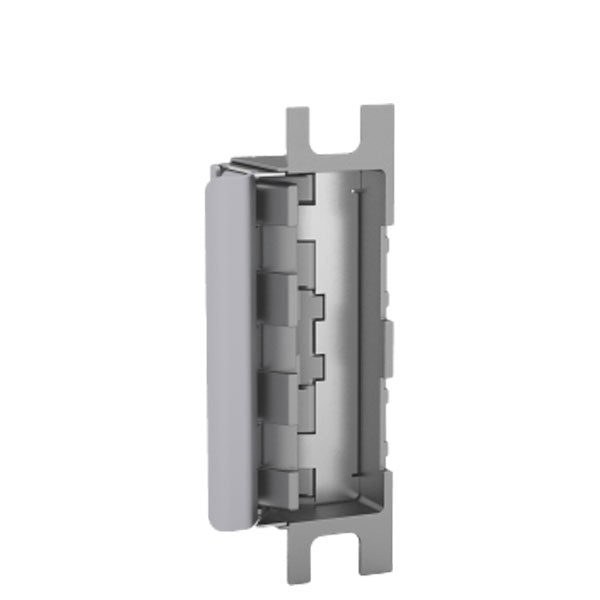

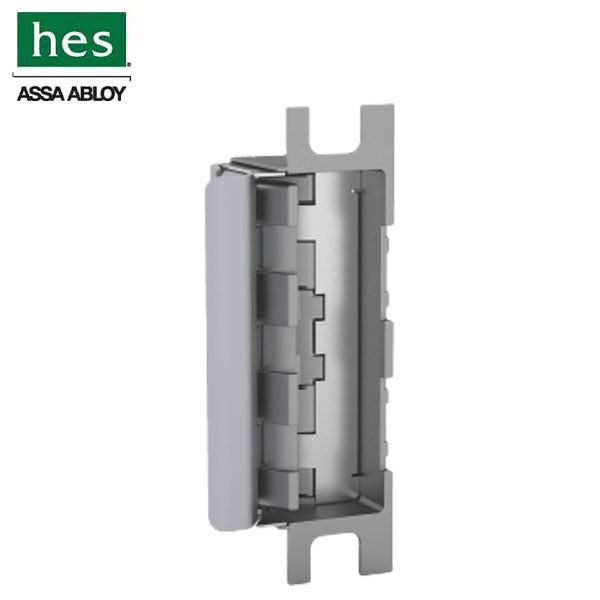

The HES 8500 Series Electric Strike is a fire rated, compact, high performance electric strike featuring a unique concealed design for use with mortise locksets without a deadbolt. Designed for fast, convenient installation, the HES 8500 installs with little or no modification to the frame. Simply remove the existing strike plate, remove the dust box, and install. Its strength is derived from a unique keeper pin locking design, enabling the HES 8500 to exceed Grade 1 ratings. This unique electric strike complies with NFPA 80- 07 guidelines for retrofit into fire rated frames. The HES 8500 accommodates mortise latchbolts up to 3/4" throw.
Features:
- No cutting to the face of the frame
- Stainless steel construction
- Tamper resistant
- Static strength 1500 lbs
- Dynamic Strength 70 ft-lbs
- Endurance 1 million cycles
- Field selectable fail safe/fail secure
- Non-handed
- Metal frame
- Internally mounted solenoid
- Accommodates 3/4" [19mm] mortise latchbolts
- Strike body depth 1-5/16" [33.3mm]
- Plug in connector
- Full pocket shims for horizontal adjustment
- SecuriCare five-year, no-fault, no questions asked warranty (Addition of HES SMART Pac®III extends the warranty to 10 years)
Specifications:
| Frame Application: | Metal |
| Adjustability: | Horizantal |
| Shim Type: | Full Pocket |
| Latchbolt Accommodation: | 3/4" [19 mm] mortise latchbolts |
| Voltage: | 12/24 dula voltage |
| Endurance (cycles): | 1,000,000 |
| Dynamic Strength (ft-lbs): | 70 ft-lbs |
| Tamper Resistant: | Yes |
| Grade: | Grade 1 |
| Warranty: | 5 years (addition of HES SMART Pac®III extends the warranty to 10 years) |
| Certifications: |
|
