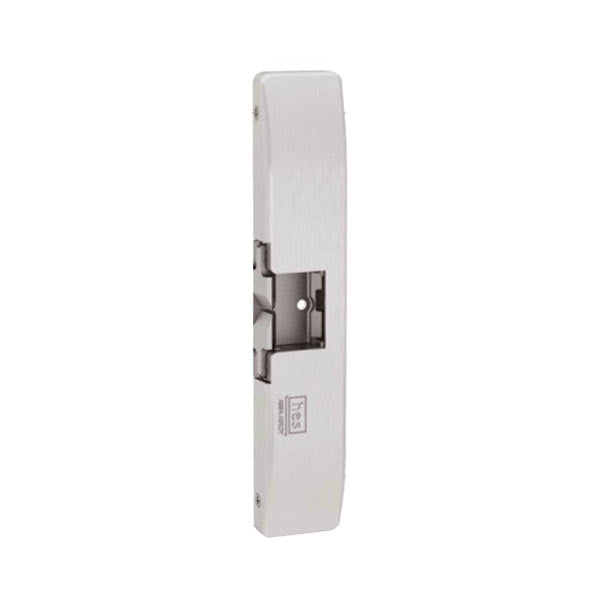

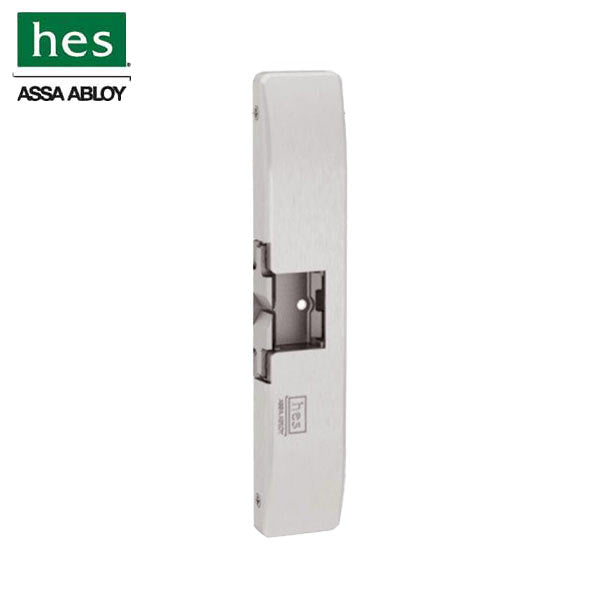

HES - 9600 - Electric Strike - Fail Safe/Fail Secure - 12/24VDC - Surface Mounted - 3/4" Thickness - Satin Stainless Steel - UHS Hardware
HES - 9600 - Electric Strike - Fail Safe/Fail Secure - 12/24VDC - Surface Mounted - 3/4" Thickness - Satin Stainless Steel - UHS Hardware

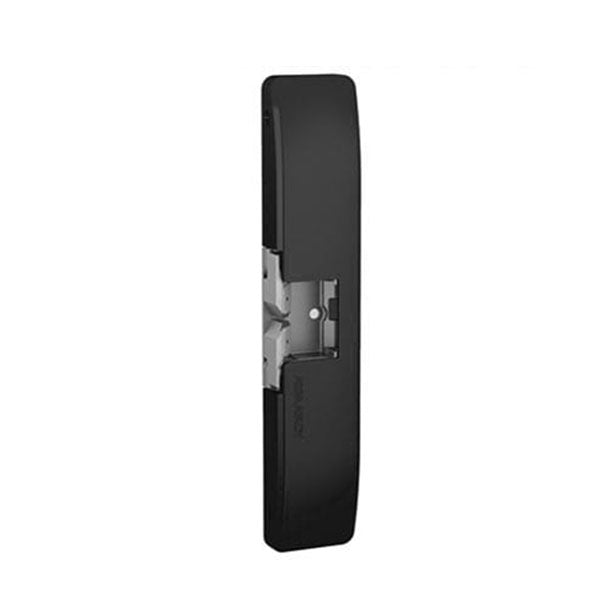

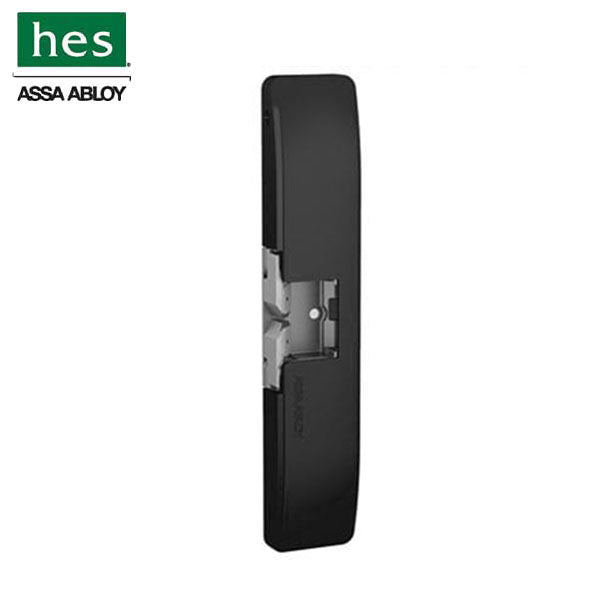

HES - 9600 - Electric Strike - Fail Safe/Fail Secure - 12/24VDC - Surface Mounted - 3/4" Thickness - Optional Finish

Available to Order
SKU: HES-9600-630
NSID: 32802 68910

Please Note: This product ships within 2 Days

$329.62
$449.99
$329.62


The 9600 Series is a windstorm-rated, surface-mounted electric strike that was designed to accommodate rim exit devices that have a 3/4" throw latchbolt. All of the components are completely secure encased inside the thick stainless steel housing - no cutting of the frame is required for most installation. All you have to do is place the electric strike on the surface of the frame, align it with your exit latch bolt and install the screws. From the field you can select fail safe or fail secure; you can also fieldset voltage at 12V or 24VDC. The HES 9600 was the first surface-mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.


Features:

  • Installs in metal and wood frames
  • Separate base and cover for easy adjustments
  • Stainless steel construction
  • Tamper-resistant
  • Static strength 2,000 lbs.
  • Dynamic strength 120 ft-lbs.
  • Endurance 1,000,000 cycles
  • Field selectable fail safe/fail secure
  • Dual voltage 12 or 24 VDC
  • Horizontal adjustment
  • Internally mounted solenoid

Call 1-800-878-6604 for Bulk / Dealer Pricing!
Finish: Stainless Steel
Frame Application: Metal, Wood
Input Current: 250 mA, 450 mA
Input Voltage 12 V AC, 12 V DC, 24 V AC, 24 V DC
Strike Height: 3.63"
Strike Width: 1"
Finish: 630 - Satin Stainless Steel / BSP - Black Powder Coat
Warranty: 5 Year Limited Warranty
Certifications: ANSI 250.13- 2003 Severe windstorm listed, Florida Building Code Approved (FL#14307), UL 1034 burglary resistant listed and suitable for outdoor use, UL 294, ANSI/BHMA, A156.31 Grade 1
