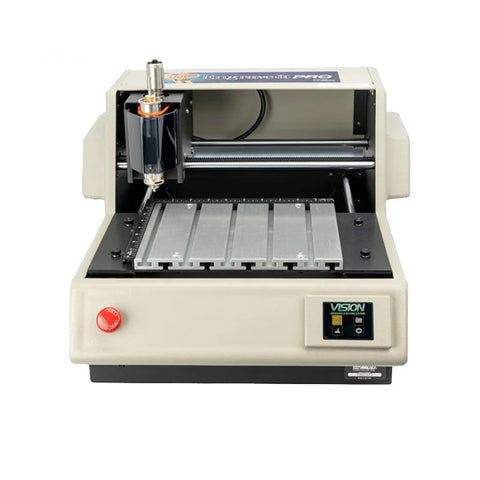

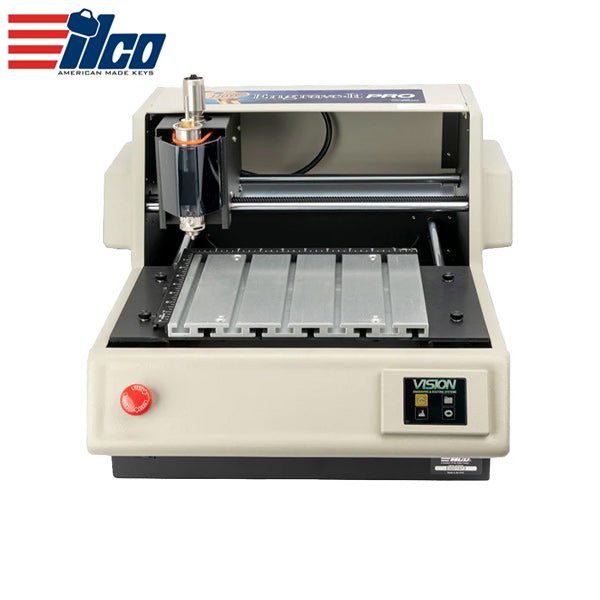

Ilco - ENGRAVE-IT PRO BASIC - Electronic Engraving Marking System for Keys / Cylinders / IC Cores / ID Tags & More

Available to Order
SKU: ILCO-BA0123XXXX
NSID: 69329

Please Note: This product ships within 4-6 weeks

$10,354.26
$12,571.22
$10,354.26



The Engrave-It™ PRO is simple to operate, and designed to provide maximum versatility for engraving a broad range of items in both the lock shop and institutional environment. This unit is capable of marking keys, typical lock cylinders (including IC), padlocks, ID plates/tags, laminated plates/tags, and much more!* The Engrave-It PRO lets the operator select either “diamond drag” or rotary cutter engraving styles. Using powerful engraving software (with customer supplied PC) the operator can quickly select from a menu list of common tasks or create their own custom settings.

Accessories Included in Kit: USB Memory Stick (holds Engrave-It Pro software, Installation Guide, Tutorial and User Manual) , Two diamond tip cutters, Ethernet to USB Adapter (to allow connection to machine and internet), Deep vise, Quick lock vise, and much more.

Choice of Engraving Style: Operator can select either “diamond drag” or rotary cutter style.

All Compatible Key holders for the PRO are sold separately HERE

Call 1-800-878-6604 for Bulk / Dealer Pricing!

User-Friendly Software Interface

  • Sequential numbering
  • Custom lettering for marking keys, popular lock cylinders, and other items
  • Capable of “fine” Engraving for presentation plaques, etc.
  • Variety of fonts and marking styles
  • Various clamping options provided to secure items being engraved
  • New V-Touch multi functional touch screen
  • Red laser pointer for easy job set-up
  • Vision PRO 10 “Expert” software package

     Key Holders: Over 100 different trays that hold from 12 to 24 key blanks (depending on specific key) Contact your Ilco distributor for details on developing a custom key holder.

    Specialty Holders: Over 40 specialty holders available for engraving on cylinders, IC cores, padlocks, pet tags brass plates and more. Visit our web site for current list of available key and specialty holders.

    Technical Specifications:

    Software: Vision Expert 10
    Movement: Stepper motor controlled engraving head positioning
    Interface: Ethernet
    Speed: X-Y Axis = .0002” 5”/second
    Warranty: 1-Year Limited Warranty
    Power: 110/220 2 Amp
    Dimensions: 19”W x 22”D x 14.5”H Weight: 45lbs
    Shipping Dimensions: 27”W x 22”D x 19”H Weight: 60lbs
    Computer Specs: A customer supplied PC is required to operate the Engrave-It PRO. Minimum system requirements — Single Core 2 GHz CPU, 5 GB Hard Drive, 1GB RAM, Windows 7 or higher (32 bit or 64 bit) Operating System. Recommended system requirements — Dual Core 2.0 GHz (or faster), 40 GB Hard Drive, 2 GB RAM, Windows 7 (32 bit or 64 bit)



    Basic Operation:



      Downloads:

      Ilco Key Cutting and Programming Machines are made for use in the North Amercian (U.S.A., Canada, Caribbean Islands) and Carribean Regions (Mexico, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama ). They are not intended to be used outside these regions and some models may have region locks on certain software functions and hardware may not be compatible with regional infrastructure. If you intend to purchase this for use outside of the specified regions you do so at your own risk. The manufacturer will refuse the warranty claims and may refuse software support if it is determined being used outside of the designated region. UHS Hardware has the right to refuse sale of this product outside its designated region
