Ilco - Silca Speed 040 - Automatic / Manual Edge Cut Key Duplicator - 120V

Available to Order
SKU: ILCO-D746259ZB
NSID: 7993

Please Note: This product ships within 2-3 weeks

$1,399.38
$1,518.00
$1,399.38

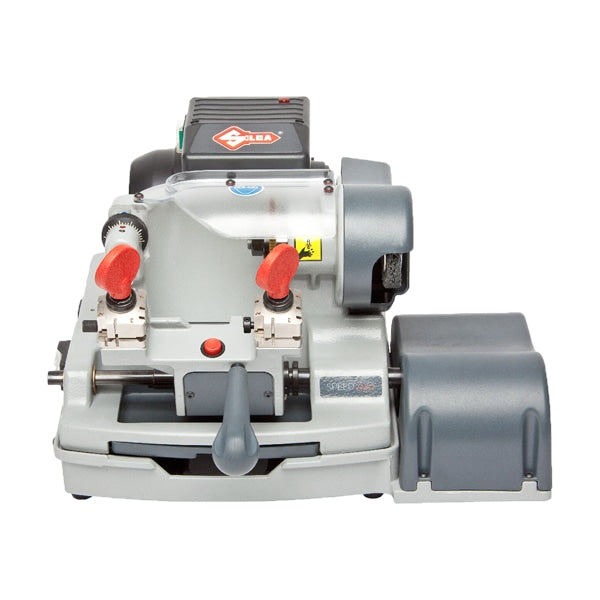

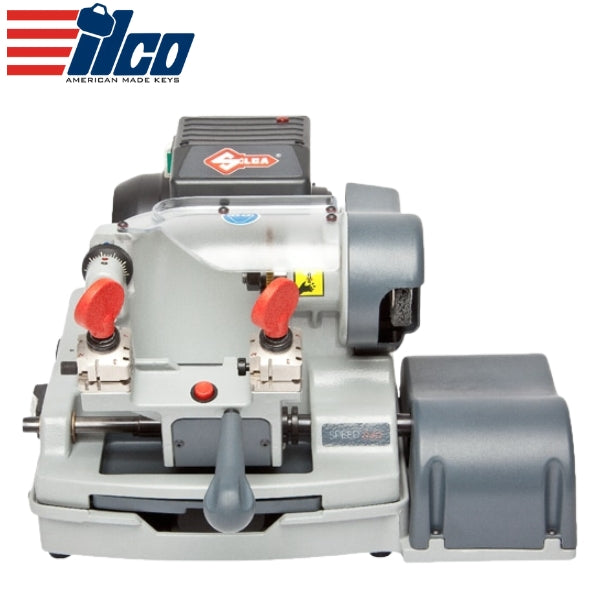

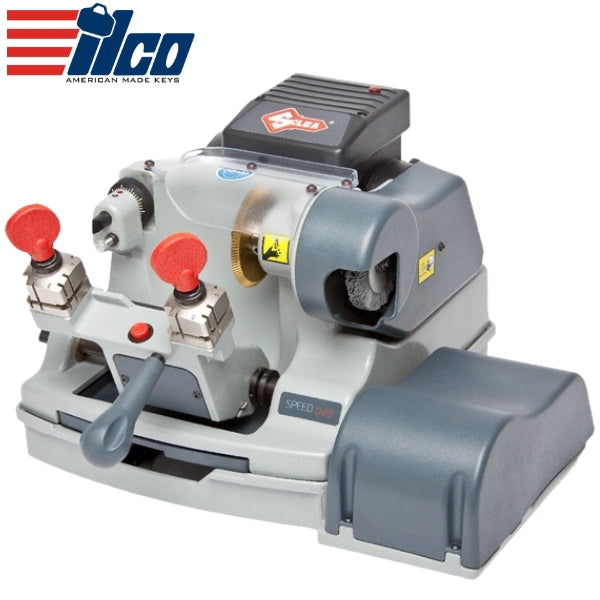

The Speed 040 is primarily an automatic model that also provides the flexibility to be operated manually when desired to duplicate edge cut/flat style keys accurately.

The Speed 040 is the perfect choice for the store or shop wanting the versatility to choose between automatic or manual operation. This versatile operational mode combined with the modern, open style and many additional features will provide users with years of service.


Call 1-800-878-6604 for Bulk / Dealer Pricing!
  • The spring loaded carriage is engaged by the press of a button and applies a consistent cutting pressure while in automatic mode
  • Four sided, nickel plated jaws for clamping the majority of all edge cut/flat type keys. Smooth rotation by simply twisting into position.
  • Slotted jaw surfaces accommodate tip stop bars and a rigid shoulder gauge design to allow for greater accuracy when loading and gauging keys.
  • Wide spacing 3 1/2” (88.9 mm) spacing between clamps accommodate large bow (head) and long blade keys, including flip style keys
  • Depth tracer system with micro adjustment for precise calibration in increments of .00098” (0.025mm)
  • TiN (Titanium Nitride) coated cutter for longer life and oxidation resistance
  • Nylon deburring brush
  • Electro-magnetic “main” safety switch with a separate cutter motor switch for easy access.
  • Large transparent cutter safety shield contains chips and provides a storage area for accessories
  • Large drawer-type swarf (chip) tray under the carriage for easy access
  • Mounting bracket included for securing the machine to counter
  • Two year warranty
Power Supply: 120V-60Hz Cutter: TiN coated
Maximum absorbed power: 2.8 Amp, 200 Watt Brush: Nylon, 5/8” (15.87 mm) bristles
Cutter motor: single phase and speed Width: 19.3” (490 mm)
Movements: by ball joint on rectified carriage Depth: 18.1” (460 mm)
Tool Speed: 1350 rpm Height: 11.8” (300 mm)
Carriage Runs: 1.65” (42 mm) Weight: 44 lbs. (20 kg)

Downloads:

Ilco Key Cutting and Programming Machines are made for use in the North Amercian (U.S.A., Canada, Caribbean Islands) and Carribean Regions (Mexico, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama ). They are not intended to be used outside these regions and some models may have region locks on certain software functions and hardware may not be compatible with regional infrastructure. If you intend to purchase this for use outside of the specified regions you do so at your own risk. The manufacturer will refuse the warranty claims and may refuse software support if it is determined being used outside of the designated region. UHS Hardware has the right to refuse sale of this product outside its designated region

Compatible With

Ilco Key Cutting and Programming Machines are made for use in the North Amercian (U.S.A., Canada, Caribbean Islands) and Carribean Regions (Mexico, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama ). They are not intended to be used outside these regions and some models may have region locks on certain software functions and hardware may not be compatible with regional infrastructure. If you intend to purchase this for use outside of the specified regions you do so at your own risk. The manufacturer will refuse the warranty claims and may refuse software support if it is determined being used outside of the designated region. UHS Hardware has the right to refuse sale of this product outside its designated region

Customer Reviews

Based on 3 reviews
67%
(2)
33%
(1)
0%
(0)
0%
(0)
0%
(0)
C
Charles Leewright

Ilco - Silca Speed 040 - Automatic / Manual Edge Cut Key Duplicator - 120V

M
MARY MILLS

ILCO - Silca Speed 040 - Automatic / Manual Edge Cut Key Duplicator - 120V

S
Steve Hunt
Reliable, but quirky buttons

This machine is a reliable and durable version of its long-trusted design. I’ve used 040s and 044s for 40 years. This design, however, is quirky in its layout. The main power button is on the lower left side. The motor start/stop button is on the top center. And the automatic carriage button is half hidden under a tiny rubber nipple on the bottom left — hard to find and even harder to press in to activate. You have to press it and hold it for up to 4 seconds, and even then it is moody and takes some getting used to.

I much prefer older designs that had a simple button that worked every time.
