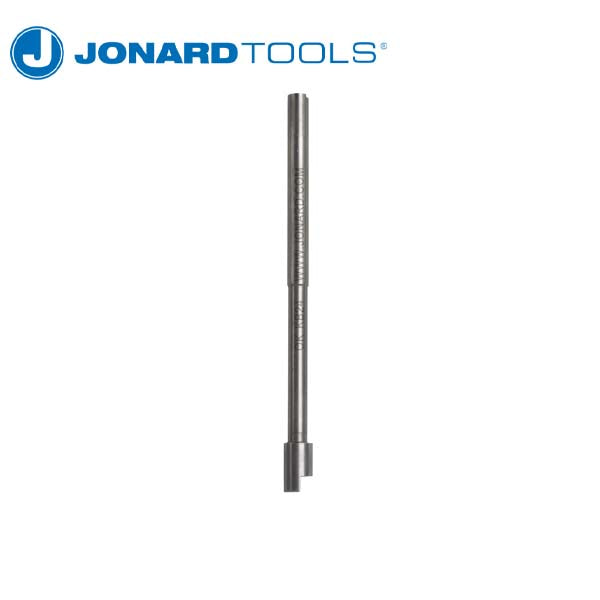

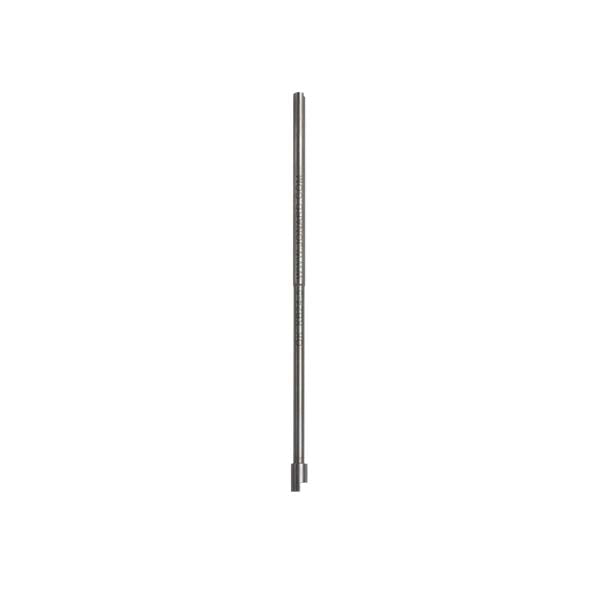

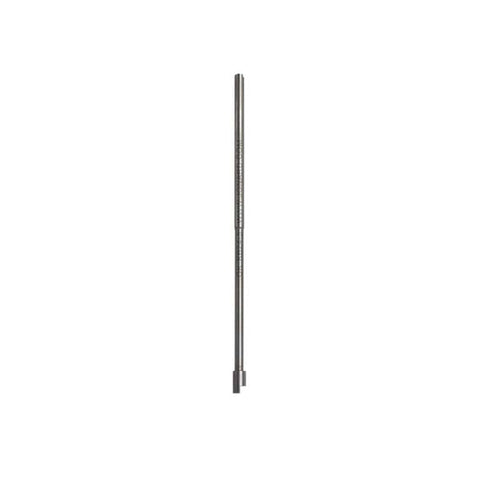

Jonard Tools - Wire Wrapping Bit - 24 AWG
- Product SKU: JND-KB24
- NSID: 44908
-
JND-KB24
Fully compatible with any make or model of wire wrapping tools, this 3" wire wrapping bit is perfect for wrapping 24 AWG wire around binding posts when used in conjunction with a wire wrapping tool.
Compatible Wrap Sleeve Part No.: P2426 and P2426INS
Specifications
| Sleeve Part No. |
P2426 and P2426INS (sold separately) |
|---|---|
| Wrap Function |
Wrap |
| Wrap Type |
Regular |
| Wire Gauge |
24 AWG (0.5 mm) |
| Minimum Terminal Diagonal |
0.055" (1.39 mm) |
| Maximum Terminal Diagonal |
0.074" (1.87 mm) |
| Terminal Hole Depth |
0.75" (19.05 mm) |
| Terminal Hole Diameter |
0.075" (1.9 mm) |
| Effective Radius |
0.100" (2.54 mm) |
| Wrap Post Size |
0.045" (1.14 mm) |
| Dimensions | 5.13 in x 0.23 in x 0.23 in (13.02 cm x 0.59 cm x 0.59 cm) |
| Weight | 0.02 lb (7.264 g) |
| UPC # | 811490013230 |
Downloads:
