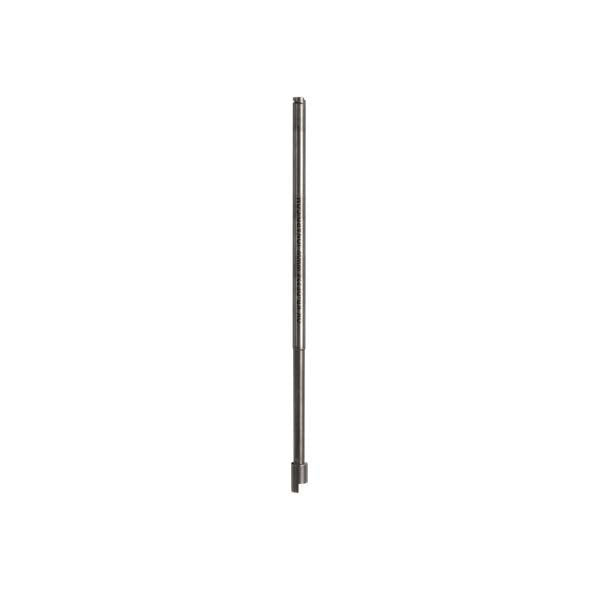

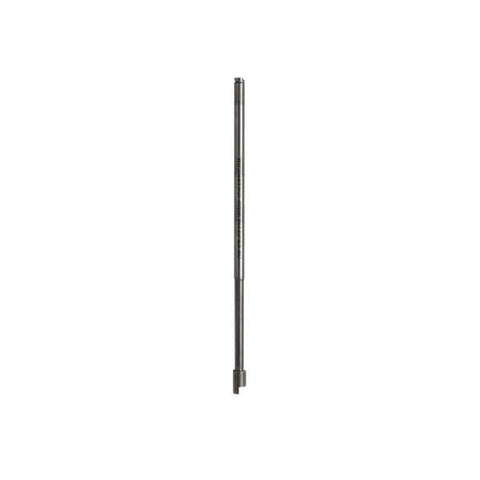

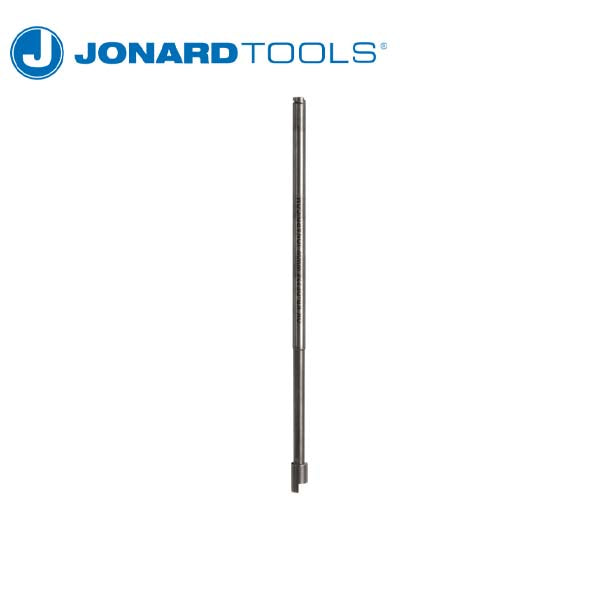

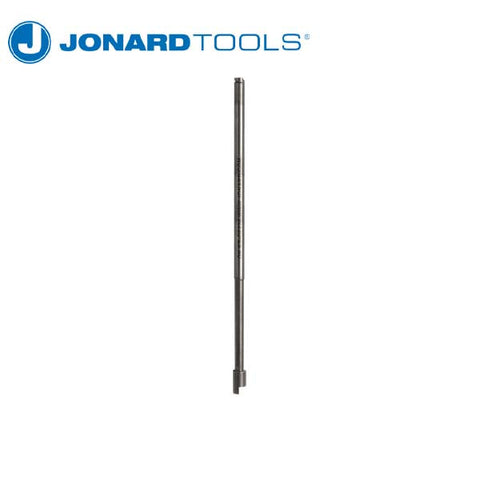

Jonard Tools - Wrap/Unwrap Bit - 22-24 AWG
$74.95
$88.69
Availability:
Available to Order
- Product SKU: JND-KB-DF224
- NSID: 44916
-
JND-KB-DF224
Designed to work with our P-DF2426 Replacement Sleeve Assembly and PTX series tools, this wrap/unwrap bit is perfect for wrapping or unwrapping 22-24 AWG wire. This bit features the following:
- Precision machined for high-quality wire wrapping in the clockwise direction and unwrapping in the counterclockwise direction
- Maximizes the efficiency of wire wrapping and unwrapping 22-24 AWG wires, while eliminating the need to purchase or carry other extra tools for unwrapping
$74.95
Specifications
| Wrap Function |
Wrap, Unwrap |
|---|---|
| Wire Gauge |
22-24 AWG (0.65-0.50 mm) |
| Minimum Terminal Diagonal |
0.054" (1.37 mm) |
| Maximum Terminal Diagonal |
0.073" (1.85 mm) |
| Terminal Hole Depth |
0.50" (12.70 mm) |
| Terminal Hole Diameter |
0.075" (1.9 mm) |
| Effective Radius |
0.111" (2.82 mm) |
| Dimensions | 5.13 in x 0.23 in x 0.23 in (13.02 cm x 0.59 cm x 0.59 cm) |
| Weight | 0.03 lb (13.62 g) |
| UPC # | 811490013179 |
