KERISYS - KPS-3 - Power Supply with Enclosure - 2.8AMP Single Output with Battery Charger (For Back-up Battery)
KERISYS - KPS-3 - Power Supply with Enclosure - 2.8AMP Single Output with Battery Charger (For Back-up Battery)
KERISYS - KPS-3 - Power Supply with Enclosure - 2.8AMP Single Output with Battery Charger (For Back-up Battery)
KERISYS - KPS-3 - Power Supply with Enclosure - 2.8AMP Single Output with Battery Charger (For Back-up Battery)
KERISYS - KPS-3 - Power Supply with Enclosure - 2.8AMP Single Output with Battery Charger (For Back-up Battery)
KERISYS - KPS-3 - Power Supply with Enclosure - 2.8AMP Single Output with Battery Charger (For Back-up Battery)
KERISYS - KPS-3 - Power Supply with Enclosure - 2.8AMP Single Output with Battery Charger (For Back-up Battery)

KERISYS - KPS-3 - Power Supply with Enclosure - 2.8AMP Single Output with Battery Charger (For Back-up Battery)

$109.00
Available: In Stock
Wishlist
  • Product SKU: KRS-KPS-3
  • KRS-KPS-3
    Item Number: 7921

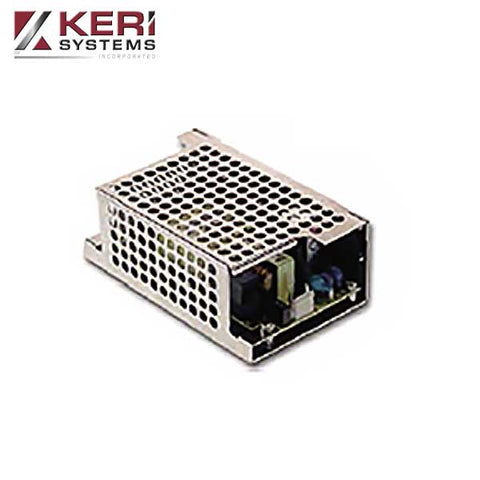

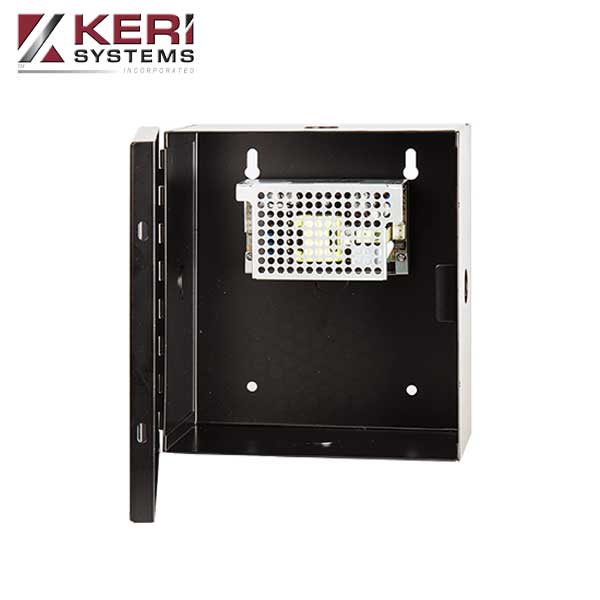

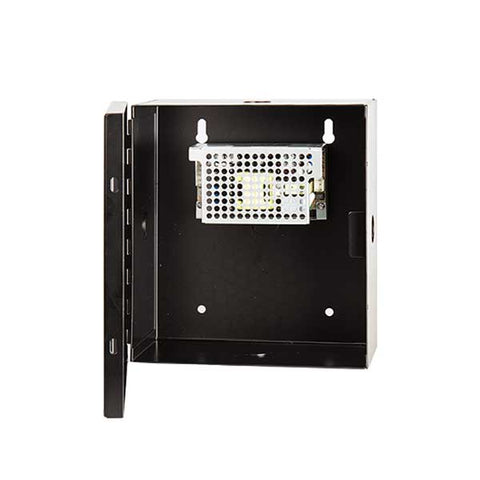

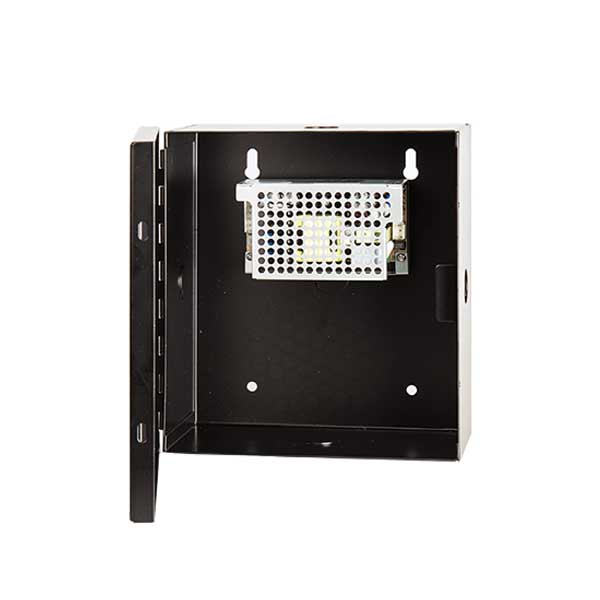

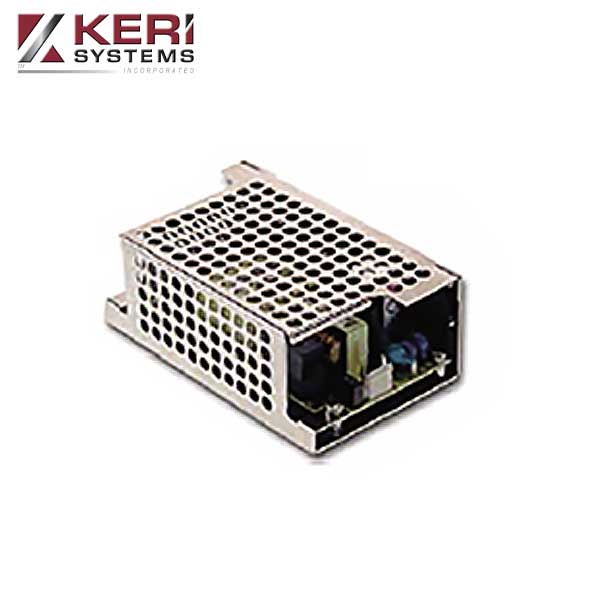

    Keri’s KPS-3 Power Supply provides an open frame power solution, with an ultra compact footprint, providing your design with more space and efficiency. This is the power supply with full enclosure and power cables

    $109.00





Specifications

Size

With enclosure: 205*180*90mm

Without enclosure: 103.4*62*37mm

Weight With enclosure: .95lbs (.42kg)

Without enclosure: 3.65lbs (1.66kg)
Output DC Voltage: CH1 - 13.8V, 2.8A,
CH2 (Battery) – 13.8V, 1.5A
Current Range: CH1 – 12-15V,
CH2 – N/A
Power: 59.34W
Voltage Tolerance: +/- 1.0%
Input Voltage Range: 90-264VAC
Frequency Range: 47-63Hz
Effiency: 84%
AC Current: 1.6A/115VAC,
1A/230VAC
Inrush Current: Cold Start
30A/115VAC, 60A230VAC
Protection Overload: 105-150% Rated Power
Protection Type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage: CH1 – 14.49 ~18.63V
Protection Type: Hiccup mode, recovers automatically after fault condition is removed
Battery Cut Off: 10.5 +/- 0.5V
Environment Working Temp: -20 ~ +70
deg C
Working Humidify: 20~90%
RH non-condensing
Storage Temp. Humidity:
-20 ~ +85 deg C, 10~95% RH
Temp Coefficient: ± deg C
0.03%/
(0~50 ) on CH1 output
Vibration: 10 ~ 500Hz, 2G
10min./1cycle, 60min. each
along X, Y, Z axis
Safety & EMC TUV EN60950-1 approved
Withstand Voltage:
I/P-O/P:3KVAC I/P-FG:2KVAC
O/P-FG:0.5KVAC
Isolation Resistance: I/P-O/P,
I/P-FG, O/P-FG:100M Ohms /
500VDC / 25 / 70% RH
EMC Emission: Compliance
to EN55022 (CISPR22) Class B,
EN61000-3-2,-3
EMC Immunity: Compliance
to EN61000-4-2,3,4,5,6,8,11,
EN55024, light industry level,
criteria A
Enclosure Enclosure Included
Protections Short circuit / Overload / Over voltage
Battery Battery low protection / Battery reverse polarity protection by fuse
Alarm Alarm signal for AC OK and Battery Reverse Low
Cooling Air Convection
PreTesting 100% full load burn-in test
Warranty 2 year manufacturer warranty


Download

Data Sheet

KRS-KPS-3
Item Number: 7921

Keri’s KPS-3 Power Supply provides an open frame power solution, with an ultra compact footprint, providing your design with more space and efficiency. This is the power supply with full enclosure and power cables





Specifications

Size

With enclosure: 205*180*90mm

Without enclosure: 103.4*62*37mm

Weight With enclosure: .95lbs (.42kg)

Without enclosure: 3.65lbs (1.66kg)
Output DC Voltage: CH1 - 13.8V, 2.8A,
CH2 (Battery) – 13.8V, 1.5A
Current Range: CH1 – 12-15V,
CH2 – N/A
Power: 59.34W
Voltage Tolerance: +/- 1.0%
Input Voltage Range: 90-264VAC
Frequency Range: 47-63Hz
Effiency: 84%
AC Current: 1.6A/115VAC,
1A/230VAC
Inrush Current: Cold Start
30A/115VAC, 60A230VAC
Protection Overload: 105-150% Rated Power
Protection Type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage: CH1 – 14.49 ~18.63V
Protection Type: Hiccup mode, recovers automatically after fault condition is removed
Battery Cut Off: 10.5 +/- 0.5V
Environment Working Temp: -20 ~ +70
deg C
Working Humidify: 20~90%
RH non-condensing
Storage Temp. Humidity:
-20 ~ +85 deg C, 10~95% RH
Temp Coefficient: ± deg C
0.03%/
(0~50 ) on CH1 output
Vibration: 10 ~ 500Hz, 2G
10min./1cycle, 60min. each
along X, Y, Z axis
Safety & EMC TUV EN60950-1 approved
Withstand Voltage:
I/P-O/P:3KVAC I/P-FG:2KVAC
O/P-FG:0.5KVAC
Isolation Resistance: I/P-O/P,
I/P-FG, O/P-FG:100M Ohms /
500VDC / 25 / 70% RH
EMC Emission: Compliance
to EN55022 (CISPR22) Class B,
EN61000-3-2,-3
EMC Immunity: Compliance
to EN61000-4-2,3,4,5,6,8,11,
EN55024, light industry level,
criteria A
Enclosure Enclosure Included
Protections Short circuit / Overload / Over voltage
Battery Battery low protection / Battery reverse polarity protection by fuse
Alarm Alarm signal for AC OK and Battery Reverse Low
Cooling Air Convection
PreTesting 100% full load burn-in test
Warranty 2 year manufacturer warranty


Download

Data Sheet

Compatible With
