$751.00
Available: In Stock
Wishlist
  • Product SKU: KRS-PXL-500W-1
  • KRS-PXL-500W-1
    Item Number: 7919

    Keri’s PXL-500 Tiger II Controller hardware platform provides sophisticated access control solutions for up to 256 doors at a single site and thousands of doors spread over a number of remote sites. The unique architecture allows Keri to offer the system hardware at a lower cost compared to other manufacturers. It also contains many features that simplify and significantly reduce the cost of installation. The system is managed by Keri’s Doors32 software or Doors.NET software, with Doors.NET being recommended for all new installations.

    More Information Below

    $751.00

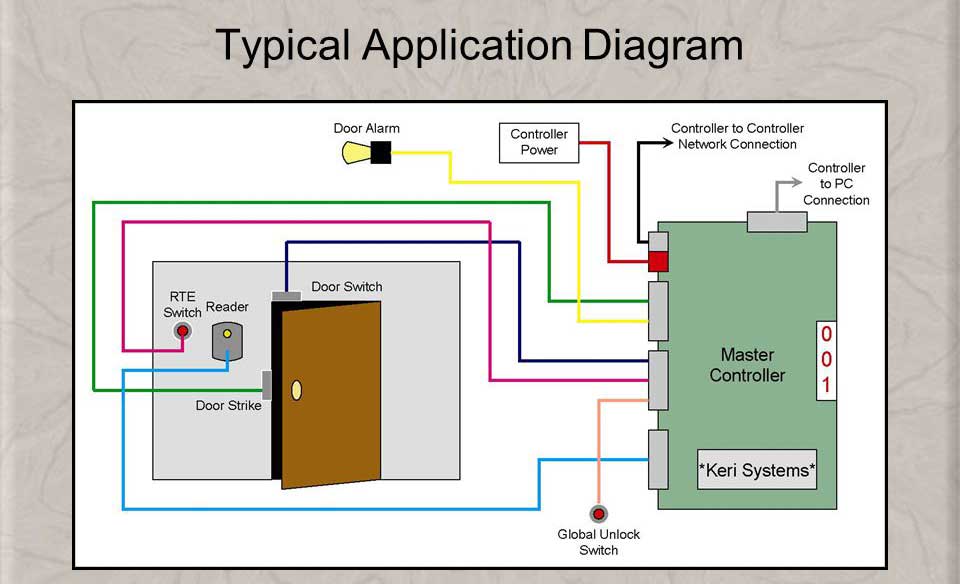

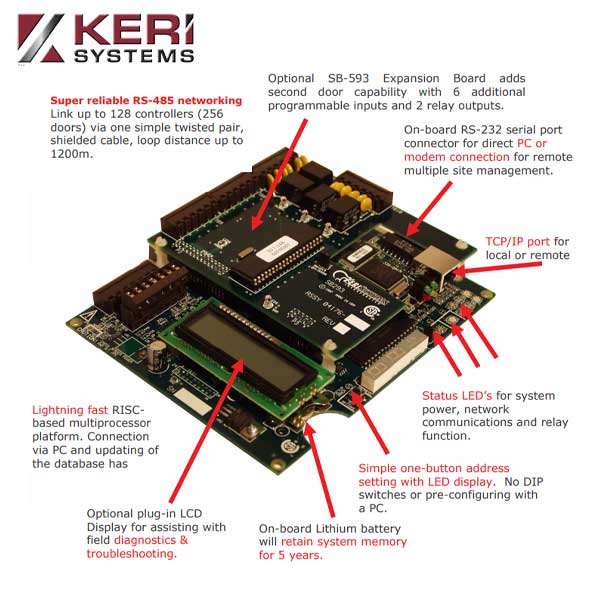

The PXL-500 itself contains all the input/output functionality necessary to manage a single door (Lock Relay, Door Sense, Request to-Exit, and two reader inputs) as well as provide an alarm output. Each controller has an RS-485 port for connection to other PXL-500’s (up to 128 per network) and an RS-232 serial port for connection to a PC which communicates with the first PXL-500 on the network. The PXL-500’s two reader inputs can be configured for any Wiegand-compatible device

 Specifications

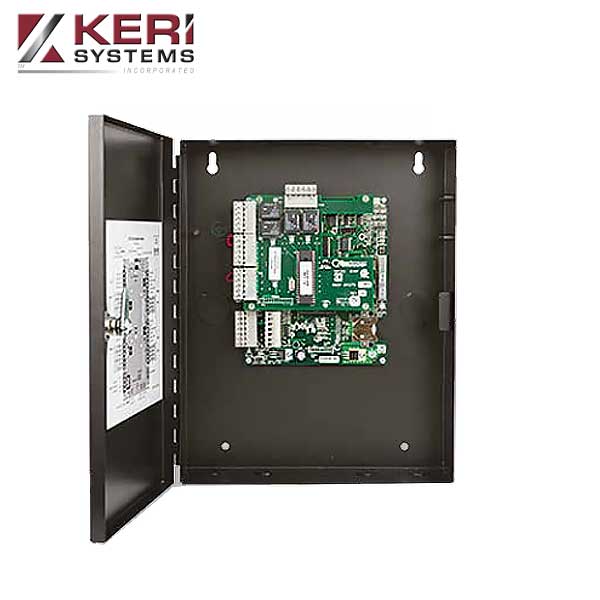

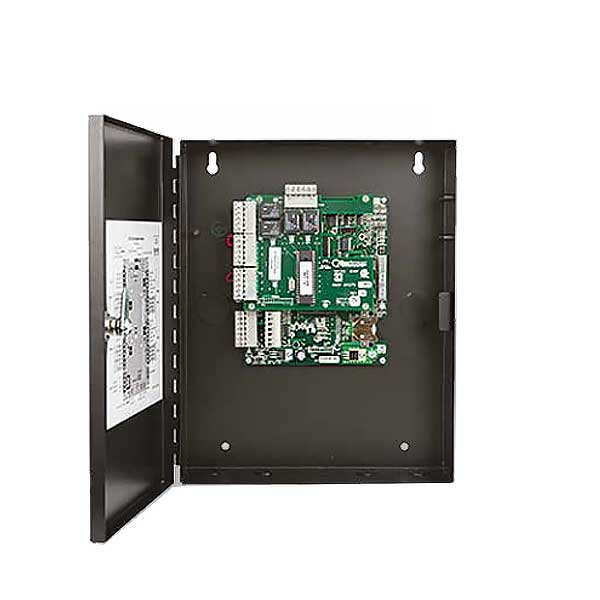

Size (Enclosure): 13” H x 9” W x 4” D
(33.15 cm x 22.95 cm x 6.35 cm)
Weight (In Enclosure): 4.36 lbs (1.99) kg
Size (PC Board) PXL-500: 5.6” H x 6.6” W x l.6” D
(14.28 cm x 16.83 cm x 2.55 cm)
Size PXL-500 with optional SB-593:

5.6” H x 6.6” W x 1.8”D
(14.28 cm x 16.83 cmx 4.59 cm)

Power Requirements (max): +12 VDC @ 125mA (PXL-500)
add 375mA for optional SB-593
Inputs PXL-500: Door Sense
Request to Exit
Auxiliary/External Time Zone
Card Reader (2), A & B
Outputs PXL-500: Form C Lock Relay (3 Amp)
Form C Alarm Relay (3 Amp)
RS-232 Serial Port (DB-9M)
Output for Optional LCD Display
Buffer Capacity: 65,000 Cardholders
3,600 Events
Temperature/Humidity: 32°F to 140°F
(0°C to 60°C)
0-90% Non Condensing
Communication: Between Controllers:
RS-485, 9600 Baud
PC to Master: RS-232
Lithium Battery: 5 Years Memory Retention

KRS-PXL-500W-1
