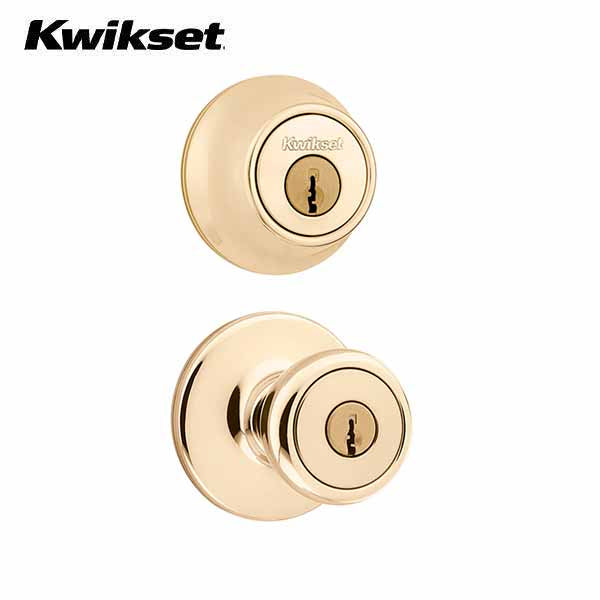

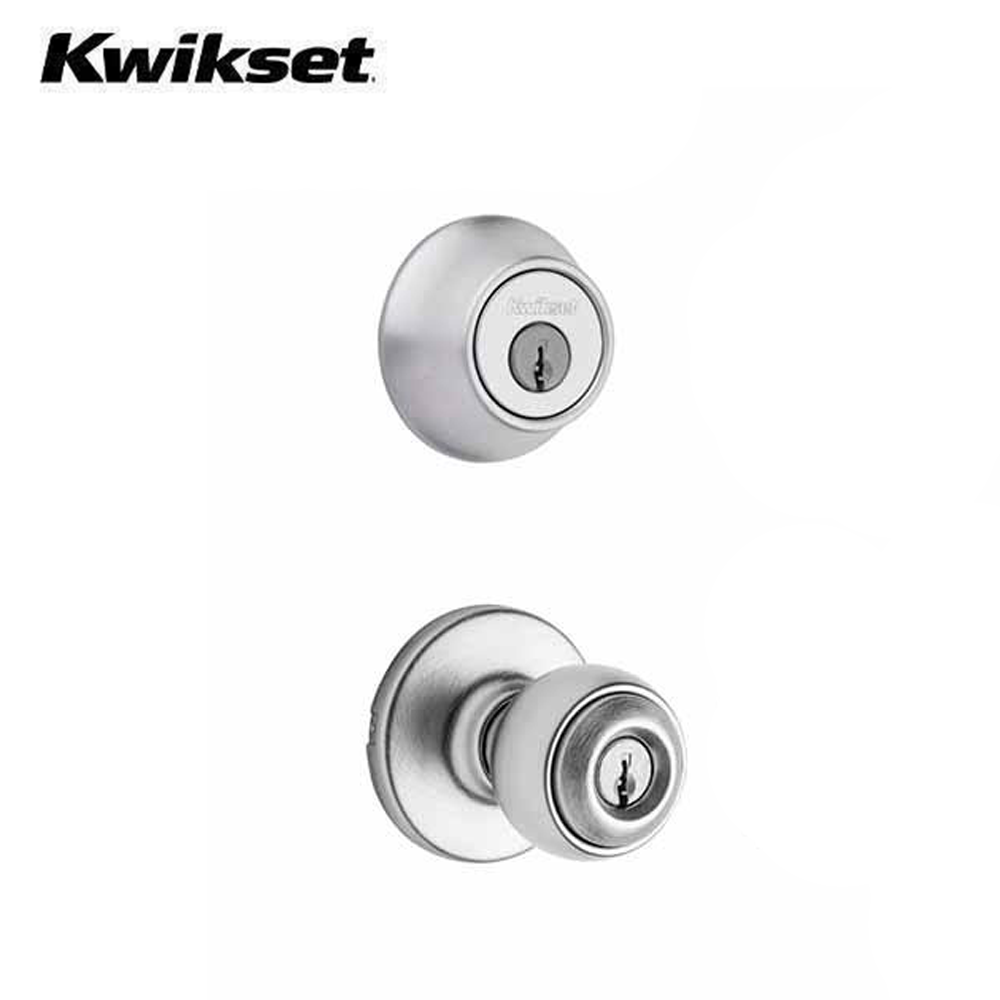

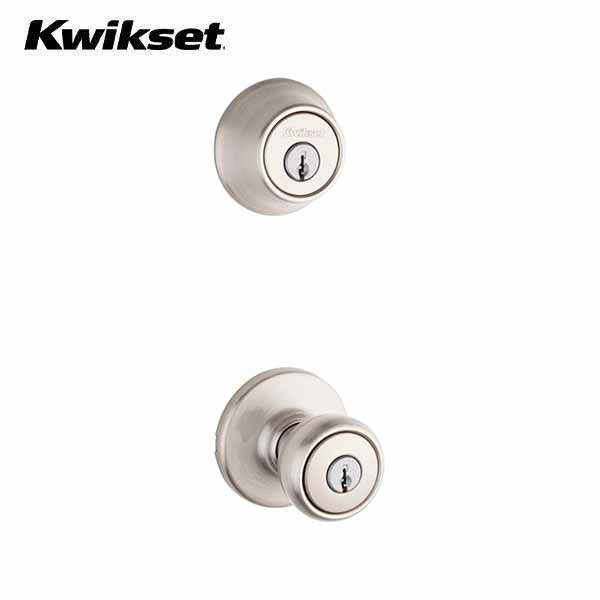

Kwikset - Tylo Combo Set - Single Deadbolt & Knob - Round Rose - Optional Finish - Grade 3
In Stock
SKU:
KWS-690T-26D
NSID:
4991
4990
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $28.49
-
$33.02 - $28.49
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
KWS-690T
As the industry leader, Kwikset has provided trusted security for over 60 years and has become synonymous with security, peace of mind, style and innovation. Our innovative round design fits a standard 2-1/8 in. drilled door, allowing easy installation with a standard screwdriver. This entry door lock is best used on exterior doors where keyed entry and security is needed.
- For use on exterior doors where keyed entry and security is needed
- Universal handing
- fits both right handed and left handed doors
- Comes with 2 keys
- Latch has 2 interchangeable faceplates
- round corner and square corner
- ANSI/BHMA grade 3 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- Includes both deadbolt and full lip square strikes
- 1 in. deadbolt throw
- Locking mechanism functions with turn piece on the interior of the lock
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
Specifications
| Door Prep | Cross Bore 2-1/8”. Edge Bore 1” |
| Backset |
Adjustable 2-3/8” or 2-3/4”. |
| Door Thickness | 1-3/8” to 1-3/4” standard, 2 1/4” doors optional on 200 and 400 functions only |
| Cylinder | SmartKey or Traditional 5-pin Pin & Tumbler |
| Faceplates | 1” x 2-1/4” Specify round corner or square corner. Also available as drive-in latch. |
| Strikes | 2-1/4” full lip. Specify round corner or square corner. Other options available. |
| Bolt | 1/2” throw. |
| Door Handing | Reversible for right or left-handed doors |
| ANSI/ BHMA |
A156.2 Grade 3 (all functions except 488) |
