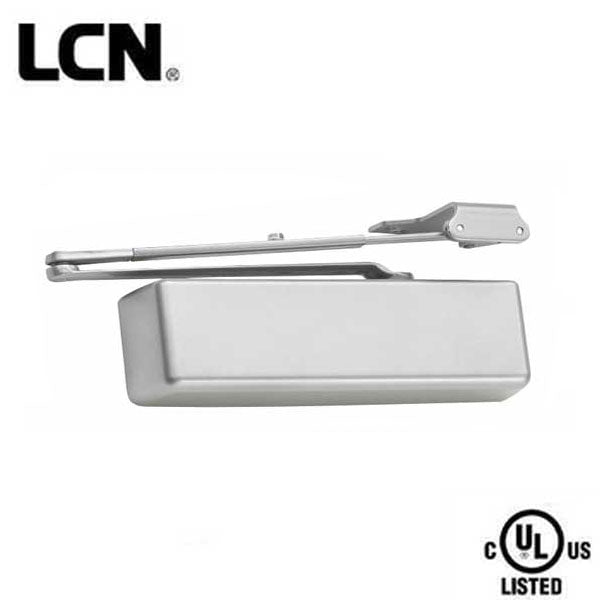

LCN - 4040XP - Hydraulic Door Closer - Extra Duty - Back Check Function - PA Bracket/Regular/Top Jamb - Left Hand/Right Hand - Adjustable Size 1-6 - Metal Covering - Fire Rated - Grade 1
- $439.61
-
$454.18 - $439.61
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
LCN-4040XP-EDA-XX-AL-MC
The LCN® 4040XP is our most durable and flexible heavy duty surface mounted closer, designed for institutional and other demanding high traffic applications. The 4040XP sets the standard for reliability, longevity and value with a robust design and extraordinary performance testing. LCN goes beyond ANSI and BHMA industry standards with abuse-cycle and temperature testing to mimic what door closers encounter in high-abuse environments. We built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger and delivers remarkable value in a variety of applications.
Features
- Closer available with less than 5.0 lbs. opening force on 36" door.
- Maximum opening/hold open point with standard template.
- Advanced Variable Back Check.
- Extra Duty Arm (EDA) Extra duty arm features solid forged steel main and forearm for potentially abusive installations
Specifications
| Cover | Metal Cover |
| Finish | Aluminum |
| Arms | Extra Duty Arm |
| Clearance | EDA arm is 5 1⁄2" (140 mm) from door face |
| EDA Arm | Requires shoe support, 4030-30 for fifth screw anchorage where reveal is less than 3 1⁄16" (78 mm) |
| Templating | Peel-n-Stick templates -2 1⁄4" x 5" mounting hole pattern |
| Handing | RH/LH |
| Fasteners | Self reaming and tapping screws (SRT) |
| Size | Adjustable Spring Size, sizes 1-6 (Includes patented Green Dial) |
| Mounting | Hinge (Pull Side), Top jamb (Push Side), Parallel arm (push side) |
| Accessibility |
Available with less than 5.0 lbs. opening force on 36" door |
| Fluid | All weather liquid X fluid |
| Body construction | Cast iron body Full complement bearing 1 1⁄2" diameter piston Double heat treated pinion journal |
| Fire Rated | UL 10C 3 Hour Positive pressure |
| Certifications | Grade 1, ANSI, UL 10C, BAA |
| Manufacturer's Warranty | 30 Years |
Downloads
- Specifications
- EDA arm Installation Instructions
