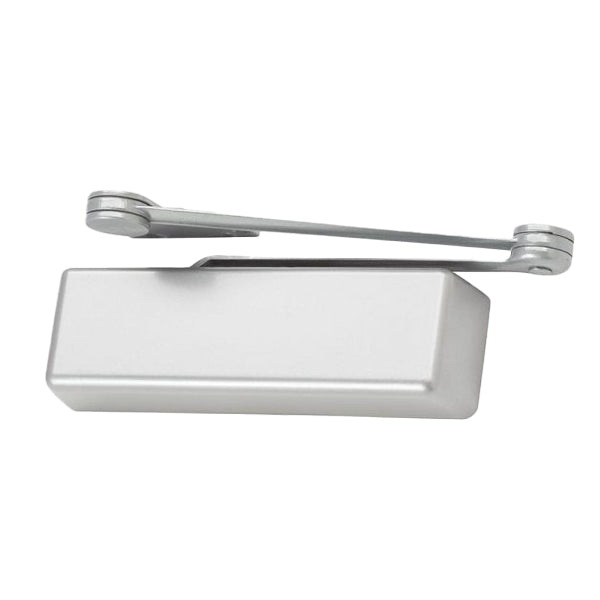

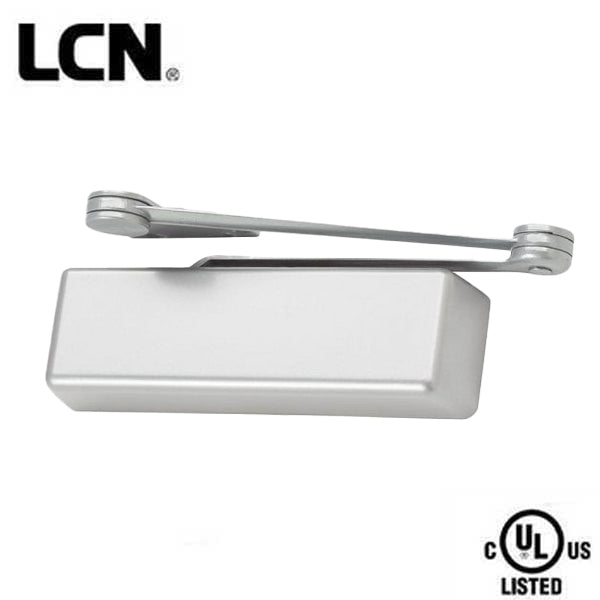

LCN - 4111 - Hydraulic Door Closer - Back Check Function - Cush-N Stop Arm Function - Optional Handing - Adjustable Size 1-5 - Aluminum - Plastic Cover - Fire Rated - Grade 1
- $426.47
-
$511.76 - $426.47
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 4110 Series are heavy-duty closers that meet demands for high-traffic installations and each is designed specifically for unique mounting applications. They are UL and cUL listed, meet ANSI/BHMA Grade 1 standards, and boast 30-year warranties. They feature a standard plastic cover, with optional plated finishes for the cover, arm, and fasteners. They also feature the LCN Green Dial spring force indicator, which takes the guesswork out of adjustment.
Features:
- Closer available with less than 5.0 lbs. opening force on 36" door.
- Maximum opening/hold the open point with the standard template.
- Advanced Variable Back Check
- LCN patented Green Dial spring force indicator
- Meets ADA requirements
- UL and cUL listed for self-closing doors with regular or fusible link arms for self-closing doors
- Peel-n-stick template and standard plastic cover
- Adjustable from size 1 to 5
- UL 10C 3 Hour Positive pressure
Specifications
Cover: | Plastic Cover, Standard |
Finish: | 689 Aluminum |
Arm: | Regular Arm |
Templating: | Peel-n-Stick templates - 2 1⁄2" x 6" mounting hole pattern |
Handing: | Left/Right Hand |
Door Sizes: | Sized cylinders for interior doors to 5'0'' and exterior doors to 4'0'' Non-sized cylinder is adjustable for interior doors to 4'6'' and exterior doors to 3'6'' |
Fasteners: | Self Reaming and Tapping Screws (SRT) |
Size: | Adjustable 1-5 or Size 6 |
Mounting: | Hinge (Pull side) |
Fluid: | All weather fluid |
Body construction: |
Cast iron body Full complement bearing 1 1⁄2" diameter piston 11⁄16" diameter double heat-treated pinion journal |
Fire Rated: | UL 10C 3 Hour Positive pressure |
Certifications: | Grade 1, ANSI A156.4, UL 10C, BAA |
Manufacturer's Warranty: | 30 years |
Downloads
