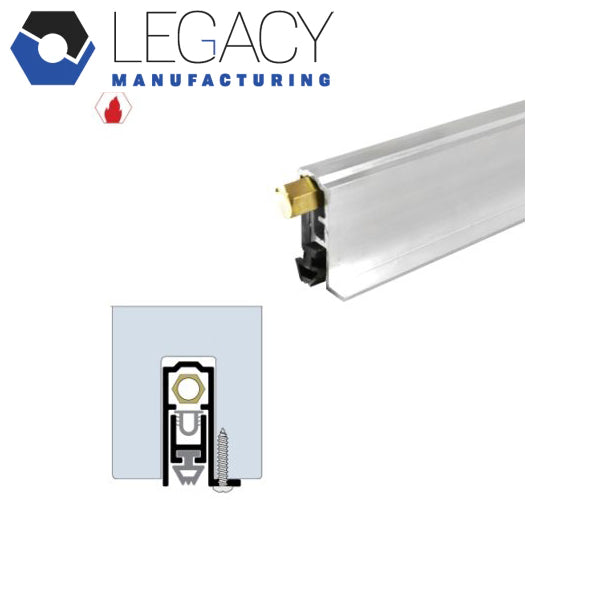

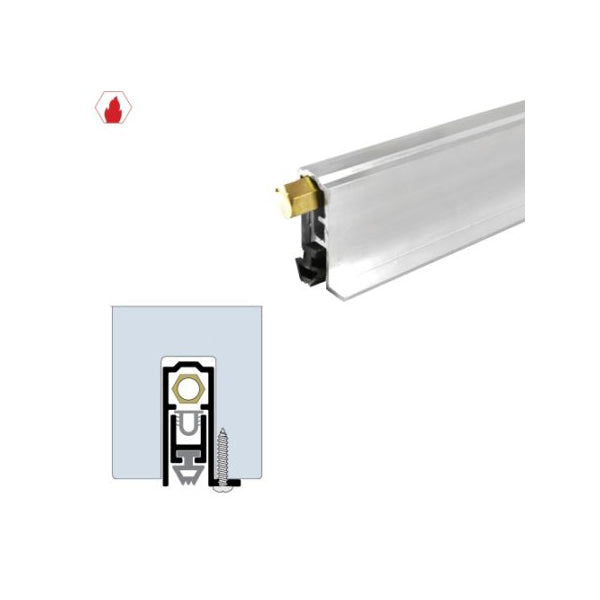

*Discontinued* Legacy Manufacturing - 7323 - Concealed Automatic Door Bottom - 7/8" x 1-1/2" - Clear Anodized Aluminum - Optional Length
Out of Stock
SKU:
LGY-7323CA-18
NSID:
- $71.71
-
- $71.71
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
COMPETITOR EQUIVALENT
| LEGACY | NGP | PEMKO | ZERO |
|---|---|---|---|
| 7323 | – | – | 323AA |
- $71.71
-
- $71.71
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xFINISHES
- CA – Clear Anodized
OPTIONS
- AIR – Air Flow
- EA – Electrical Actuator
- FL – Fire Label
- LS – Light Spring
- PULL – Pull
- PV – Pivot Doors
- SF – Security Fasteners
- SL – Sliding Doors
- TD – Top Door Installation
- MB-EC – Matte Black End Cap
FEATURES
- Can be made any size from 12" to 144".
- Designed to drop like a scissor, hinge side first then self-leveling to compensate for uneven floors.
- 5 million cycles tested.
MATERIALS / SPECIFICATIONS
- Solid Rubber Extrusion is Black
- Screws are standard (#6 x 1/2" SMS self-drilling screws) supplied
- Brass Hex Nut
- For doors smaller than 1-3/4"
- Adjusting the brass nut changes pressure on concealed internal spring to satisfy field conditions.
- Self-leveling door seal up to maximum 5/8" drop.
- Unit is handed and can be reversed upon request.
- Replacement neoprene – Part #4023N
- Unit supplied standard with 1 pair of end caps – Part #4063EC-AP.
