Available: In Stock
Wishlist
  • Product SKU: LK-EC782-JB-V
  • LK-EC782

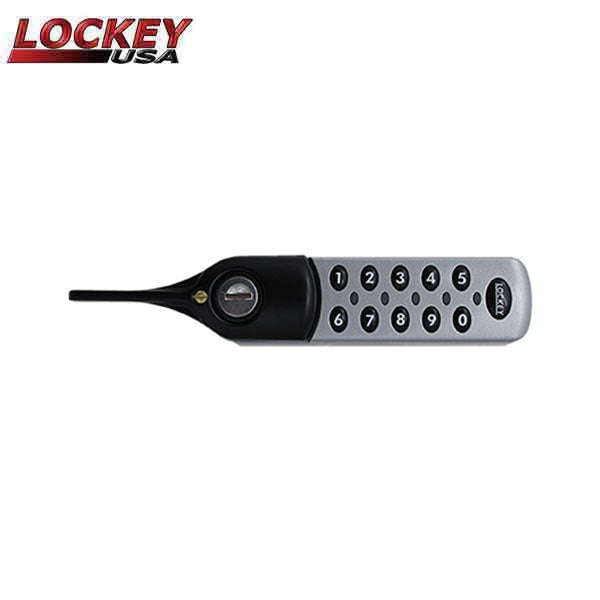

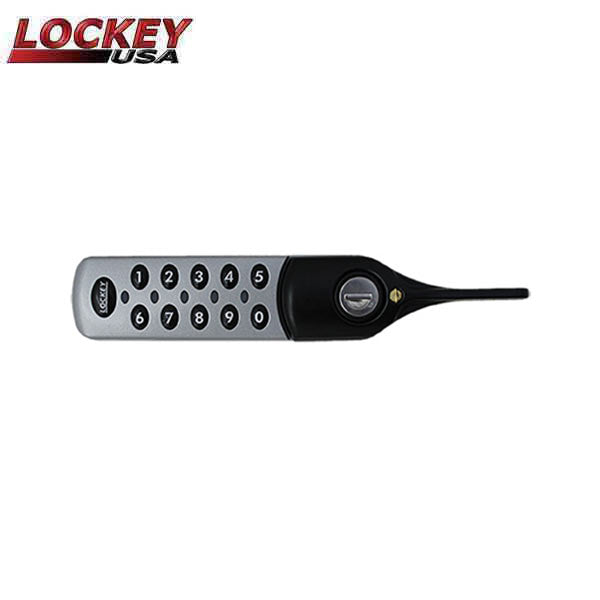

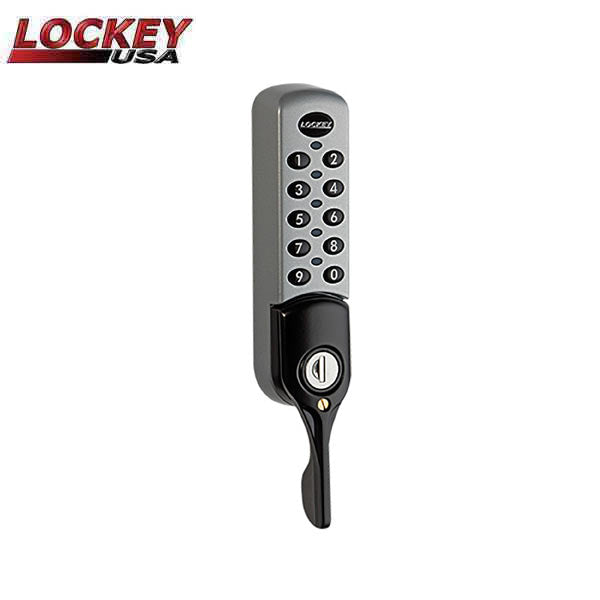

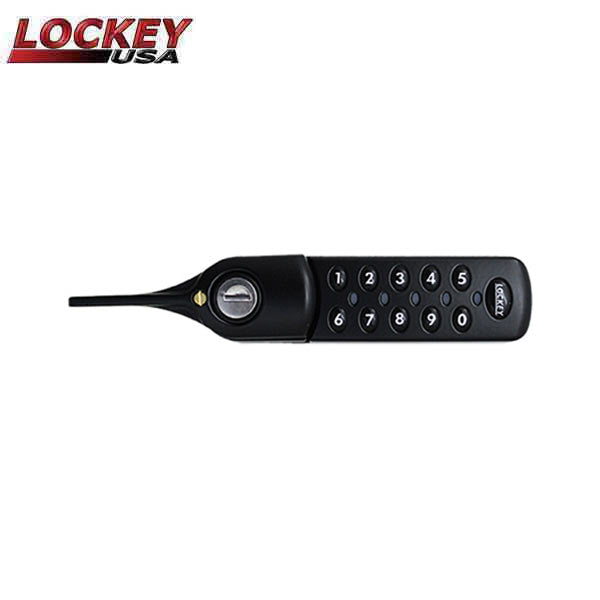

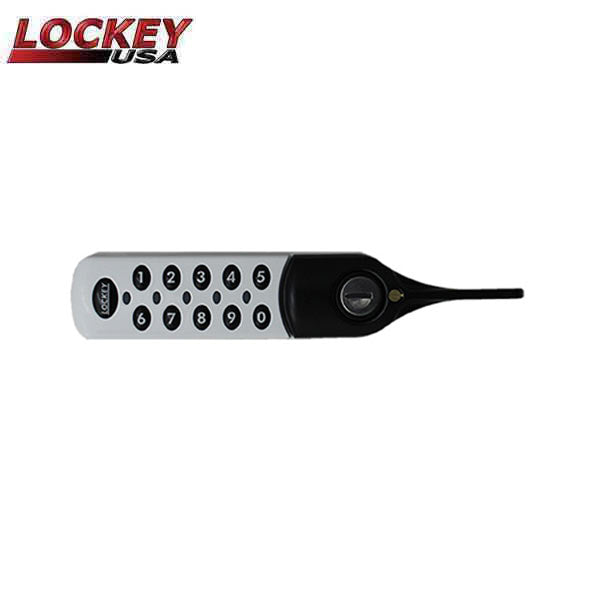

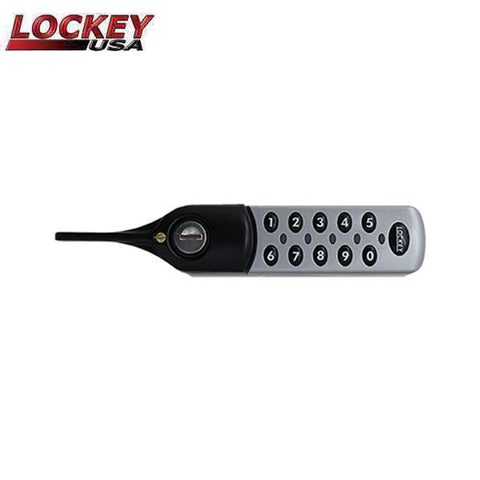

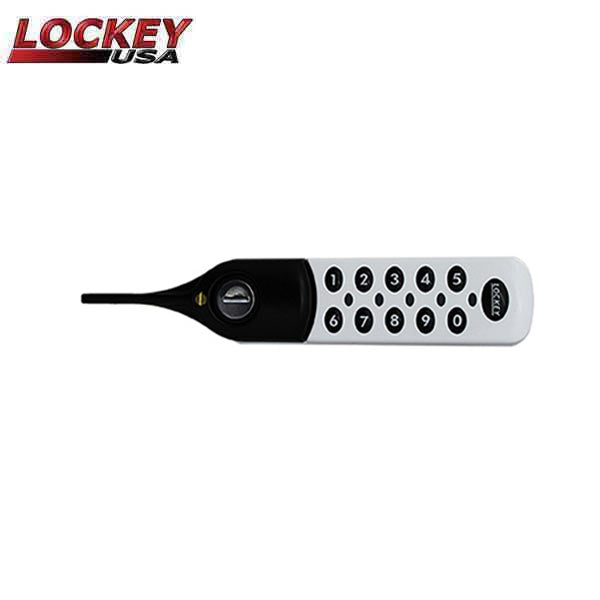

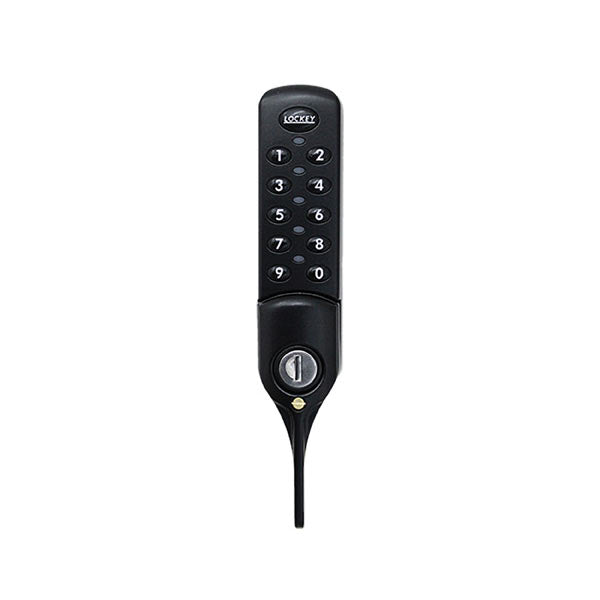

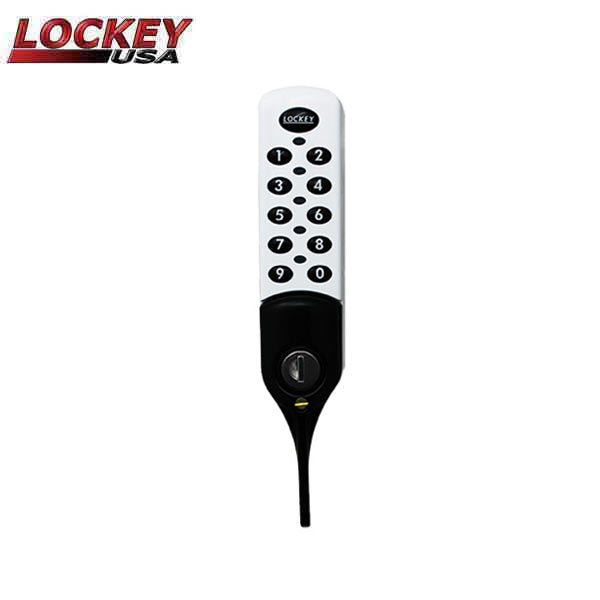

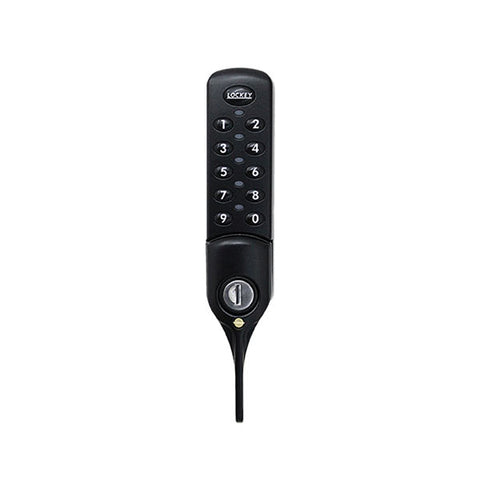

    This is a Lockey EC782 Electronic Cabinet Lock with ADA Lever Handle.

    Features

    • ADA Lever Handle
    • Public, Private & Remote Allocation System (RAS) mode
    • Key override
    • Up to 80,000 cycles per pair of batteries
    • Batteries included
    • Battery condition indicator
    • Audible keypad (can be turned on/off)
    • 8 digit master code
    • 6 digit sub-master code
    • 4 digit user codes
    • 6 digit technician code
    • Auto unlock mode (can be turned on/off)
    • Technician mode

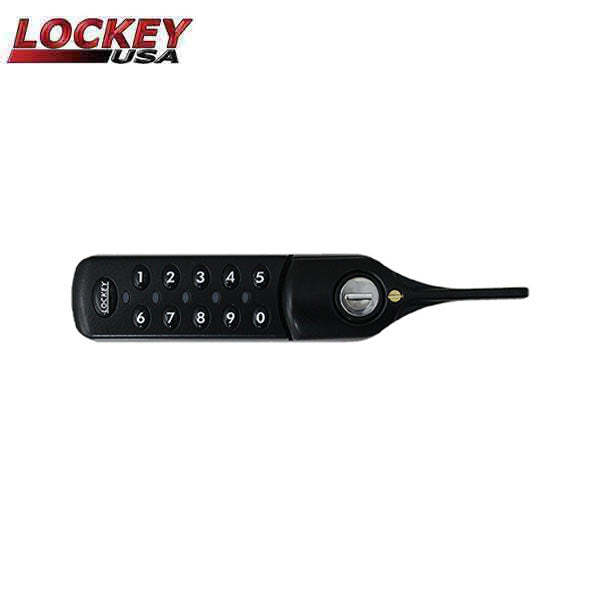

    • Keypad Direction: Vertical (V), Right (R), Left (L)

Specifications

DIMENSIONS 185.5mm (7 3/8″) L x Width: 37mm (1 1/2”) W x 28.7mm (1 1/8”) D
FINISHES AVAILABLE Black (Jet Black), White, Silver (Satin Chrome)
DIRECTIONS AVAILABLE Vertical, Right, Left
MOUNTING HOLE SHAPE
2 or 3 point mounting
SPINDLE LENGTH
20mm standard
POWER
2 x AA Battery (Alkaline)
OPERATIONS
Up to 80,000 cycles per pair of AA batteries
LOW BATTERY
LED lights with battery condition indicator
MATERIAL
Zinc diecast
STANDARD CAM CAPABILITY 1/4” to 1 1/2”
KEYS INCLUDED 2
APPLICATION
For internal use
WARRANTY 3 Year Electronic


Downloads

Installation Instructions
Programming Instructions
Spec Sheet
