Lockly Pro - PGD228WSLSS - GUARD - Slide Edition - Narrow Stile - Athena Biometric Electronic Double Hook Mortise Lever Set - Backset 1-3/16" - RFID - Fingerprint Reader - Wi-Fi - Bluetooth - Stainless Steel
- Product SKU: LCK-PGD228WSLSS-118
- NSID: 31962
-
LCK-PGD228WSLSS-118

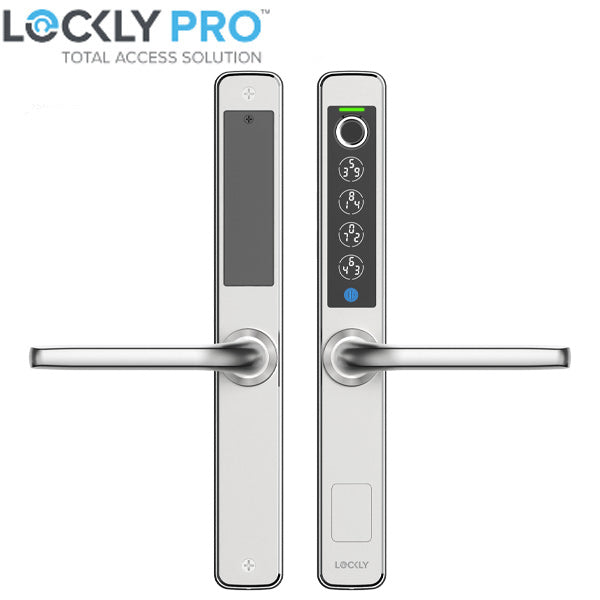

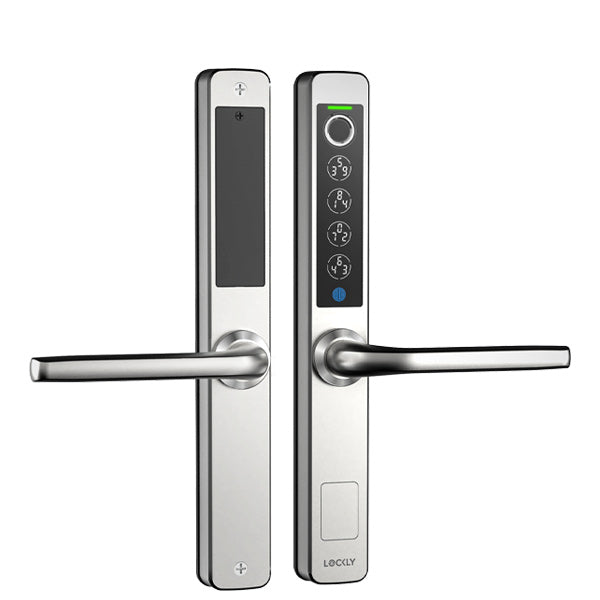

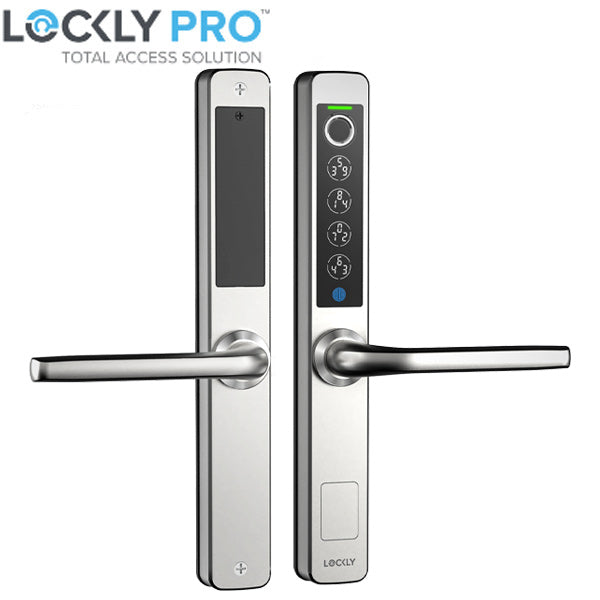

LOCKLY GUARD™ Athena (228SL) Slide Edition - Access for thin framed sliding doors
Provides main entrance lever access and security for thin framed metal, aluminum or wooden sliding doors.Features:
- Hack-proof PIN Genie digital touchscreen
- 3D biometric fingerprint sensor access - Stores up to 99 fingerprints
- IPX4 rated for water protection
- Issue Offline Access Codes™ that do not require users to download an app or have WiFi or Internet connection to use

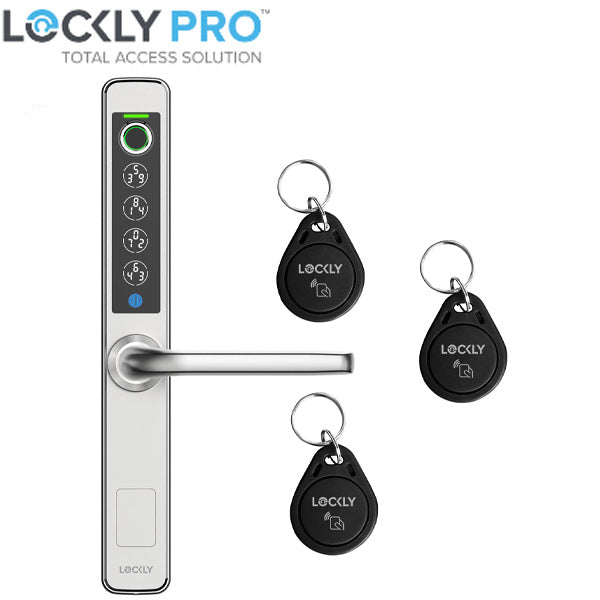

- Fast Pass MIFARE RFID access
- eKeys - Grant one-time use or specific time duration access by issuing codes, digital eKeys via a mobile device
- Grant access even when you're not home - Remotely lock and unlock your door from anywhere using the Lockly app
- Full control with smartphone and Lockly\OS
Specifications
| Type | Narrow Stile Mortise Smart Lock |
| Interior Handle Type | Lever |
| Manufacturer Color/Finish | Stainless Steel |
| Commercial/Residential | Commercial |
| Handing | Field Reversible for L/R slide doors |
| Deadbolt Included | No Deadbolt |
| Fits: |
door frames 2" - 3" (50.8mm - 76.2mm) |
| Door Frame Thickness |
1" - 2 1⁄8" (25.4mm - 54mm) |
| Door Frame Width | 2" - 3" (50.8mm - 76.2mm) |
|
Number of Batteries Required
|
4 AA Included |
| Phone App Compatibility |
Yes |
| Biometric Lock |
Yes (Up to 99 users) |
| Bluetooth Compatibility |
Yes |
| Built-In Zigbee |
No |
| Built-In Z-Wave |
No |
| For Use with Entry Door |
Yes |
| Voice Controlled |
Yes |
| Works with Amazon Alexa |
Yes |
| Works with the Google Assistant |
Yes |
| Backset | 1-3/16" |
| Latch | 1⁄2" (12.7mm) steel |
| Manufacturer Warranty | Lifetime technical support 5- Year Finish Warranty 2-Year Electronic Warranty |
Includes the Following:
-
Lockly Guard Athena Slide Edition smart lock
-
Mortise assembly
-
Secure Link Wifi Hub
-
Wired door sensor
-
MIFARE RFID Card x 3
-
Laser Cut Keys x 5
-
Installation screws
-
Strike plate
-
Strike plate housing
-
Back plate
-
AA alkaline batteries x 4
-
Quick start guide
-
Installation and user manuals
Downloads
- Lockly Smart Phone App -- iPhone Here / Android Here
- User Manual
- Installation Manual
For Easy Installation for any Lockly products - Download the BILT App - BILT has created a full how-to install graphical instructions for a streamlined, simple installation experience. Available on App Store and Google Play, which offers 3D video step-by-step instructions for assembly. Just search for the BILT app and then select the LOCKLY product you want to install.
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Lockly directly at 669-500-8835 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
