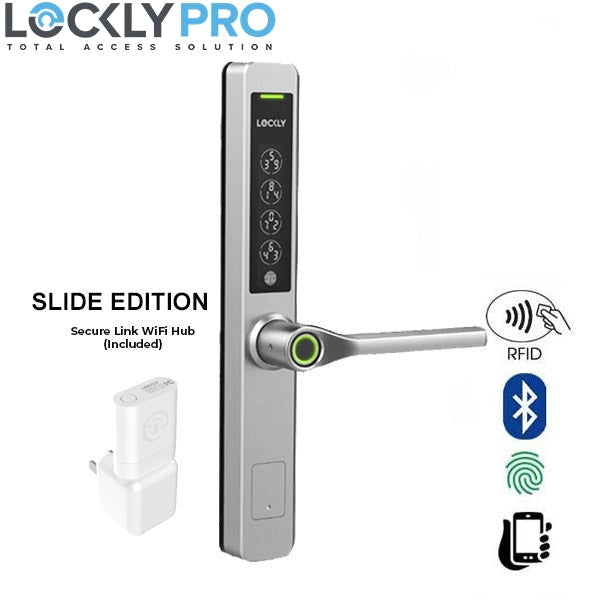

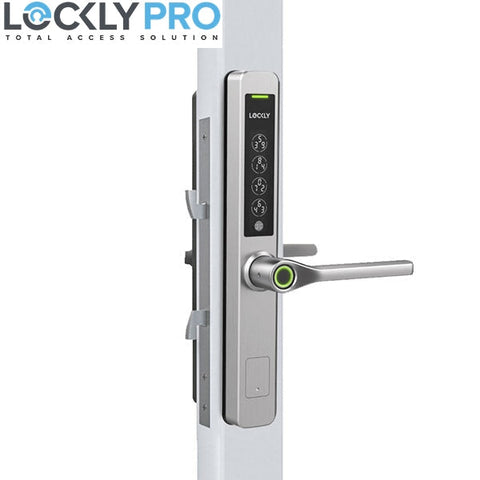

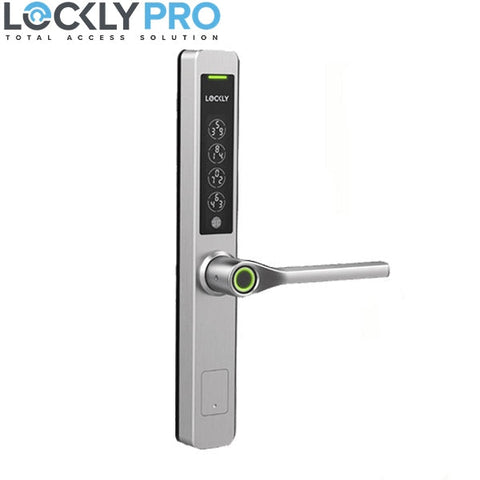

Lockly Pro - PGD228WSLSS - GUARD - Slide Edition - Narrow Stile - Athena Biometric Electronic Double Hook Mortise Lever Set - Backset 1-3/8" - RFID - Fingerprint Reader - Wi-Fi - Bluetooth - Stainless Steel
- $619.99
-
$743.99 - $619.99
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
PGH230 Wifi Hub - Included
Built-In Optional Wired Sensor - Included
LOCKLY GUARD™ Athena (228SL) Slide Edition - Access for thin framed sliding doors
Provides main entrance lever access and security for thin framed metal, aluminum or wooden sliding doors.
Features:
- Hack-proof PIN Genie digital touchscreen
- 3D biometric fingerprint sensor access - Stores up to 99 fingerprints
- IPX4 rated for water protection
- Issue Offline Access Codes™ that do not require users to download an app or have WiFi or Internet connection to use
- Fast Pass MIFARE RFID access
- eKeys - Grant one-time use or specific time duration access by issuing codes, digital eKeys via a mobile device
- Grant access even when you're not home - Remotely lock and unlock your door from anywhere using the Lockly app
- Full control with smartphone and Lockly\OS
Specifications
| Access Codes | Stores up to 52 PIN access codes |
| RFID/Fob key Access | Stores up to 999ᵒˢ MIFARE RFID/fob |
| Fingerprint Access | Stores up to 99 biometric fingerprints |
| Remotely Shareable Temporary Access |
Unlimitedᵒˢ Offline Access Codes/ eBadgesᵒˢ |
| Access Logs | Unlimited ᵒˢ Accessibie via LocklyPro Commercial app or Lockly\OSTM |
| Visual and audible | Exterior: LED (Red, Green) Interior: LED (Blue) Configurable Lock/Unlock Audio Indicator |
| Communication standards | BLE 4.2 , Wi-Fi 2.4GHz , RF433.92MHz Advanced Encryption Standard (AES), 256-bit |
| Command Response | Responds to command from host in less than 3 seconds when linked to Lockly Wi-Fi Hub 0.2S on Fingerprint Recognition |
| Connectivity options | LocklyPro Commercial app, Lockly\OS ALL in real-time communication |
| Battery Life | AA Alkaline Batteries x 4 Up to 1 year (offline mode) up to 9 months (regular use with App & Sensor |
| Operating temperature | -4°F to 151°F (-20°C to 66°C) |
| Operating Humidity | 0 - 100% non-condensing |
| Standards | ISO 14443 |
| Maximum read range |
RFID: up to 0.79" BLE: up to 98’ (30m) Wi-Fi: up to 197' (60m) |
| RFID/Fob compatibility | MIFARE® S50 |
| Mobile compatibility | LocklyPro Commercial app BLE 4.2 Lockly\OSTM |
Mechanical Specifications
| Handing | Field reversible |
| Materials | Stainless Steel chassis and escutcheon |
| Door Thickness | 1⅜ " - 2 9/16 " (35mm - 65mm) |
| Swing Backset Slide Backset | 1⅛” (30mm), 1 ⅜ ” (35mm), 2⅜ ”(60mm) 1⅛” (28mm), 1⅜” (35mm) |
| Deadbolt/Latch Hook Bolt |
¾″ (20mm) Deadbolt Throw ½” (13mm) Latch Throw ⅔” (17mm) Hook Throw |
| Door frame width | 2" - 3" (50.8mm - 76.2mm) |
| Physical Keys | Laser cut keys compatible,2pcs included |
Includes the Following:
-
Lockly Guard Athena Slide Edition smart lock
-
Mortise assembly
-
Secure Link Wifi Hub
-
Wired door sensor
-
MIFARE RFID Card x 3
-
Laser Cut Keys x 2
-
Installation screws
-
Strike plate
-
Strike plate housing
-
Back plate
-
AA alkaline batteries x 4
-
Quick start guide
-
Installation and user manuals
Downloads
- Lockly Smart Phone App -- iPhone Here / Android Here
- User Manual
- Installation Manual
- Spec sheet
For Easy Installation for any Lockly products - Download the BILT App - BILT has created a full how-to install graphical instructions for a streamlined, simple installation experience. Available on App Store and Google Play, which offers 3D video step-by-step instructions for assembly. Just search for the BILT app and then select the LOCKLY product you want to install.
