Lonsdor - SKE-LT - Smart Key Emulator For Lonsdor K518SE Key Programmer - 4 In 1

In Stock
NSID: 73912

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with


The SKE-LT smart key emulator introduces brand new functionality for work with Toyota/Lexus vehicles equipped with Smart Key systems via OBD, without dismantling. The main objective of the software is to allow the addition of smart keys in an "all keys lost" situation by creating an emulator that gets permission to register new keys via diagnostic equipment.


  • Bind emulator key: first use, it is required to bind the SKE-LT emulator to the K518SE main unit.
  • Back up EEPROM data: backup on board computer IMMO data.
  • Make emergency emulator key: with the backup IMMO data to make the designated SKE emulator key to the key that can replace the original master key. Such key can be used to turn on the ignition, and then add smart key can proceed.
  • Add smart key: to add a smart key
  • Delete smart key: to delete a programmed key.
  • All key lost
  • Does not need an internet connection
Call 1-800-878-6604 for Bulk / Dealer Pricing!

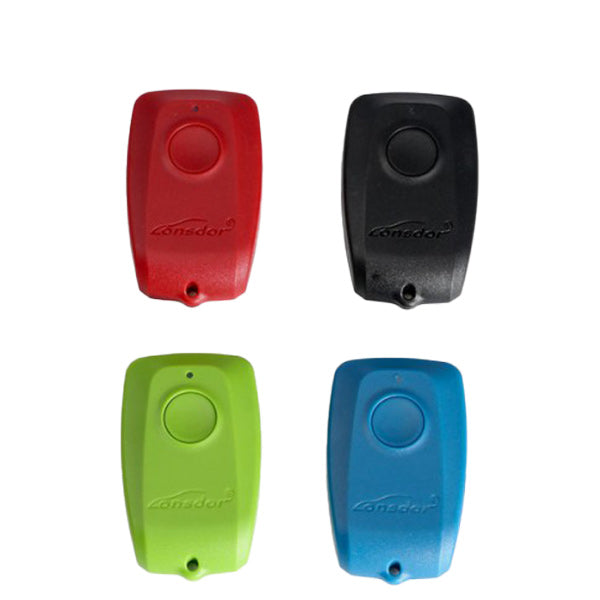

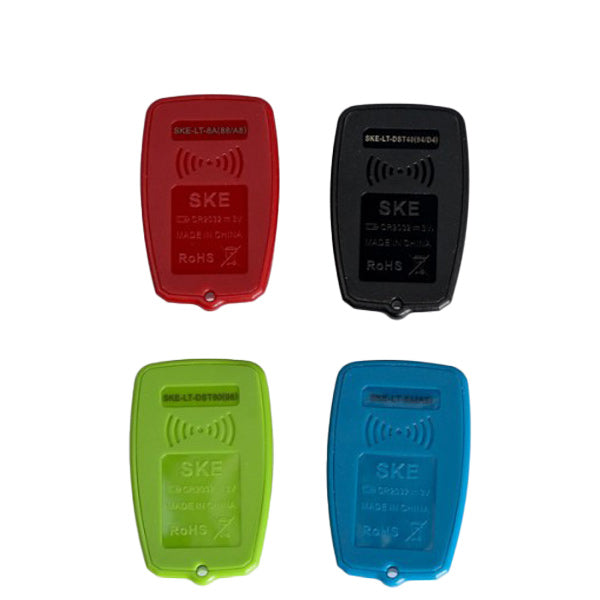

SKE-LT Emulators:

  • Black: SKE-LT-DST40(94/D4) - Supports 94/D4 smart key
  • Red: SKE-LT-8A(88/A8) - Supports 88/A8 smart key
  • Blue: SKE-LT-8A(A9) - Supports A9 smart key
  • Green: SKE-LT-DST80(98) - Supports 98 smart key

Function Operation on all key lost situation:

  1. Binding
    1. Go to the "Bind emulator key" function.
    2. Turn on the emulator key and put it into K518ISE key slot (put the status indicator down, and make sure the key is active).
    3. Follow the system direction and click "OK" to start binding.
    4. After binding completed, the system will indicate "Binding successful".
  2. Backup EEPROM data
    Connect K518ISE with car OBD port, enter into "Back up immo data" to back up the data
  3. Make Emergency Emulator Key
    After choosing the immo data, in a network environment, the system will indicate to choose the corresponding SKE emulator key model. please start the key and put it into K518ISE key slot (make sure the key is activated), follow the instruction to make an emulator key.
  4. Add Smart Key
    Click the car start button, put the generated SKE emulator key close to the start button, with induction the car will automatically activated.
    The system will read current key count, then follow the instruction to add key.



  1. Press and hold the power button for 2 seconds to turn on/off: in that status, when on standby for 2 minutes, the key will automatically shut down; After switching 3 times, the key will be initialized, and can be recycled again.
  2. Status Indicator: blue-normal; Red-hardware failure;
  3. After receiving the product, please open the back cover of each emulator and install battery first before using it.


Package Includes:

  • 4x SKE-LT Smart Key Emulator

Compatible With
