Major Mfg - HIT-66 - Drill Guide For Sargent Mortise Locks - 1-1/4” to 2-7/8”

In Stock
SKU: MJR-HIT-66-272
NSID: 59222

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$604.47
$725.36
$604.47

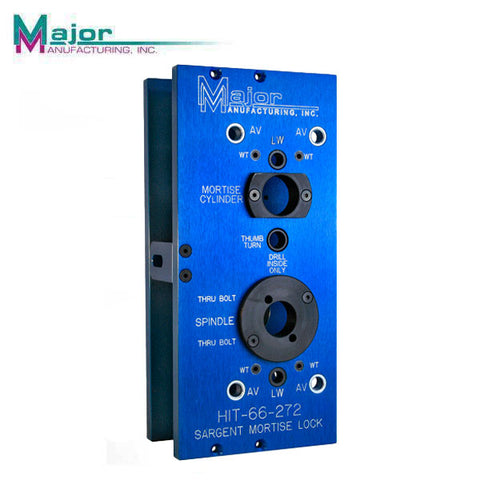

The HIT-66-272 template is designed to quickly and accurately install or retrofit the Sargent series of mortise locks. All required holes are lined with hardened drill bushings, the larger holes for the mortise cylinder and lever spindle will also accept hole saws. The template drill guides for the AV Anti Vandal Trim, LW cast trim and WT wrought trim.
All drill locations are identified for easy identification. Plates are machined from aluminum and hard anodized. This template requires the HIT-66 clamp system that includes the HIT-4509 mortise alignment plate (clamp system sold separately).

The template set includes both inside and outside template guides. Door range for the HIT-66 clamp system is 1-1/4” to 2-7/8”.

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Compatible With
