*Discontinued* Malibu - Access Control Extension Panel - 4 Doors
- $478.00
-
$0.00 - $478.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Control 4 doors via RFID card access and managed by the easy-to-use Malibu access control module.
**Back up battery not included**
Note: Must have the 4 Door Controller with Module (MAC-004-CM) to use this extension. The 4 Door Controller with Module controls the first 4 doors and this extension allows you to add 4 additional doors either in the same or different location. (Additional multiples of 4 doors require an extension for each set.)
Each door requires a Monthly License Fee Per Door Please be sure to manually add a monthly subscription for each door needed.
- $478.00
-
$0.00 - $478.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xNow this Module has Mobile Credentials. The mobile credential can be setup with the same access level as a normal RFID card. Download the "Malibu Mobile Credential"app to use your phone for access control. It doesn't use Bluetooth. It's the most simple yet secure mobile credential on the market.
Features:
- Output Voltage: 12V
- Output Electric Current: 5A
- Output Power: 60W
- Operating Temperature: -20°C ~ +60°C
- Operating Humidity: 90%
- AC Input Voltage 220V/110V 50Hz
Specifications:
| PCB Board Size | 160 x 106 mm (6.3 x 4.17 in) |
| Case Size | 273 x 228 x 65 mm (10.75 x 8.98 x 2.56 in) |
| Power Supply | 12V DC 4-7A |
| Power Consumption of Circuit Board | <100mA |
| Doors Controlled | 8 doors with extension MAC-004-CM |
| Door opening time extending setting | 1-600 seconds (adjustable) |
| Operation Temperature | -40℃~70℃ (-40ºF~158ºF) |
| Operation Humidity | 10-90% RH, No Condensation |
| Quantity of users | 20,000 |
| Quantity of Event Buffers (offline) | 100,000 event buffers |
| Power interruption protection measure | High speed memory, records never lost |
| Max Distance from Reader to Controller | 100m or 328 ft (suggested distance 80m or 262 ft) |
| Max Distance between Controllers | TCP/IP: Depends on net coverage area |
| Alarm | Goes off when door is open for an extended time, illegal break in, intimidate |
| Unlock | Based on internal and external validation |

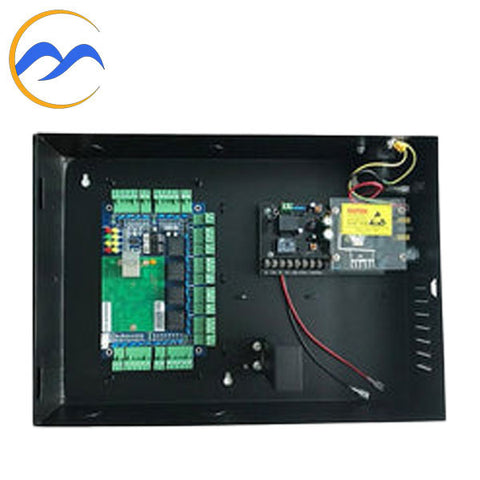

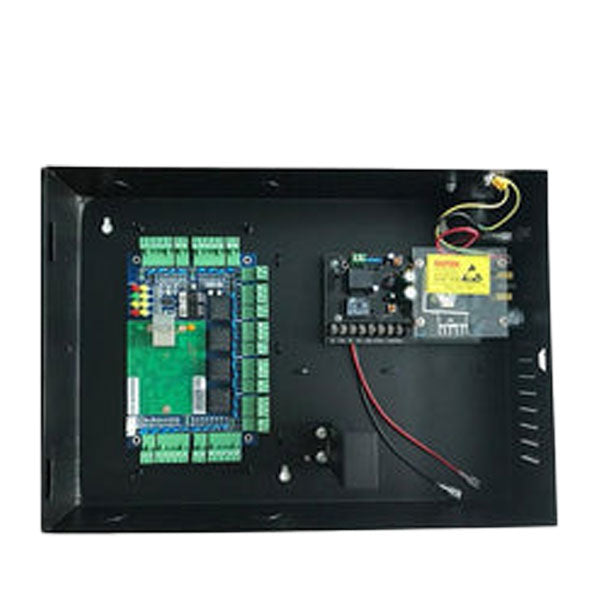

Package Includes:
- 1 x Access Control Board
- 1 x Power Supply
- 1 x Panel Enclosure
Downloads:
