Malibu - RFID Reader - Waterproof - 6-14VDC - 125KHz and 13.56MHz (Black)
Available to Order
SKU:
MLB-MAC-009-CRH-ID
NSID:
72311
- $47.69
-
$57.22 - $47.69
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
This Malibu RFID Reader is a powerful RFID reader module, ideal for access control systems! This versatile module boasts a compact design, fast read speeds, and wide compatibility. With an operational range of up to 5cm and a reading time of under 300ms, it offers secure and efficient access control. For flexible installation, it features easy mounting options and accepts a wide range of power sources. Additionally, its weatherproof design and durable build ensure reliable operation in various environments.
Features:
- Read Range: Up to 5cm
- Reading Time (Card): ≤300ms
- Power / Current: DC 6-14V / Max.70mA
- Output Format: 26bit/34bit Wiegand (default)
- Easy to install on Door Frame or Mullion
- Input Port: 2each (External LED Control, External Buzzer Control)
- Beeper: Yes
- Indoor / Outdoor Operation
- Waterproof IP65
- Reverse Polarity Protection
- Solid Epoxy Potted
- LED Indicator: 2 Color LED Indicators(Red and Green)
- Operating Temperature: -20° to +65°C
- Operating Humidity: 10% to 90% relative humidity non-condensing
- Color: Black
- Material: ABS+PC with texture

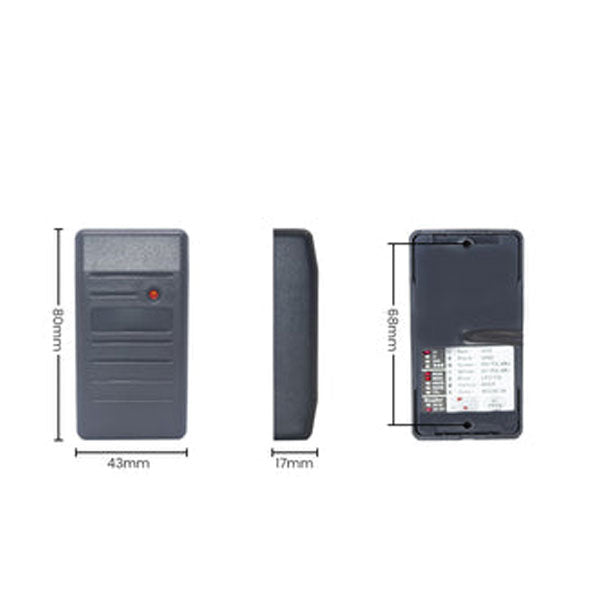

- Dimension: (80L x 43W x 16H mm) (3.15L x 1.69W x .63 in)
