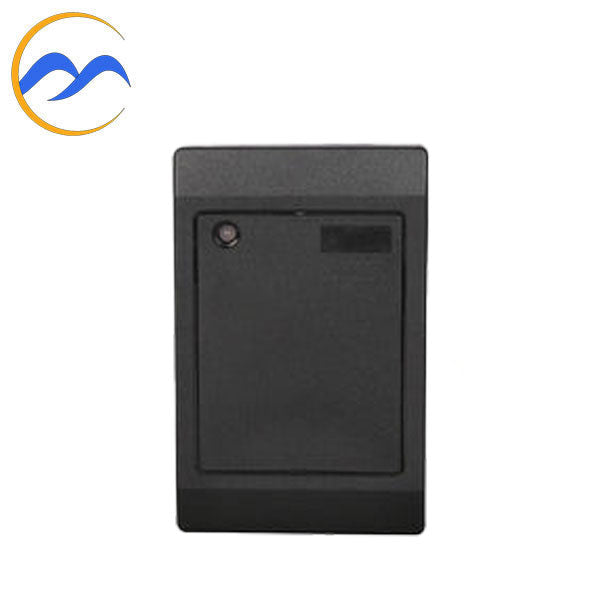

*Discontinued* Malibu - RFID Reader - Waterproof - 6-14VDC - 125KHz and 13.56MHz (Black) (Standard Size)(Single Gang)
Out of Stock
SKU:
MLB-MAC-009-CR
NSID:
72315
- $58.00
-
$0.00 - $58.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Introducing our versatile RFID reader module, compatible with both 13.56MHz Mifare and 125khz EM Prox cards! This secure and efficient solution boasts a read range of up to 5cm(13.56MHz) and 10cm (125khz) and a lightning-fast reading time of under 300ms. It's flexible and very easy to install. Additionally, it has a weatherproof (IP65) design, and solid epoxy potting, and operates in a wide range of temperatures. For user convenience, it includes an integrated beeper and two color LED indicators and even allows for the connection of external ones for further customization.
- $58.00
-
$0.00 - $58.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xFeatures:
- 13.56MHz Mifare Card Reader / 125khz EM Prox
- Read Range: Up to 5CM
- Reading Time (Card): ≤300ms
- 26/34bit Wiegand (default)
- Easy to install on Metal Door Frame or Mullion
- Input Port: 2 each (External LED Control, External Buzzer Control)
- Indoor / Outdoor Operation
- Operating Temperature: -20° to +65°C
- Operating Humidity: 10% to 90% relative humidity non-condensing
- Solid Epoxy Potted
- Waterproof IP65
- Reverse Polarity Protection
- Power / Current: DC 6-14V / Max.70mA
- LED Indicator: 2 Color LED Indicators (Red and Green)
- Beeper: Yes
- Color: Black
- Material: ABS+PC with texture
- Dimensions: 76L x 114W x 16H mm (2.99L x 4.49W x .63H in)
Downloads:
