*Discontinued* Malibu - RFID Reader - Waterproof - 9-18VDC - 125KHz and 13.56MHz Epoxy Cased (26 bit)
Out of Stock
SKU:
MLB-MAC-S2-MF
NSID:
72306
- $98.00
-
$0.00 - $98.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

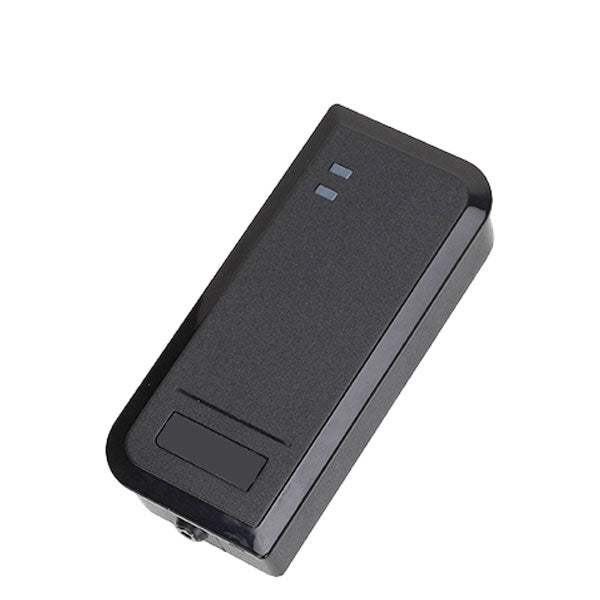

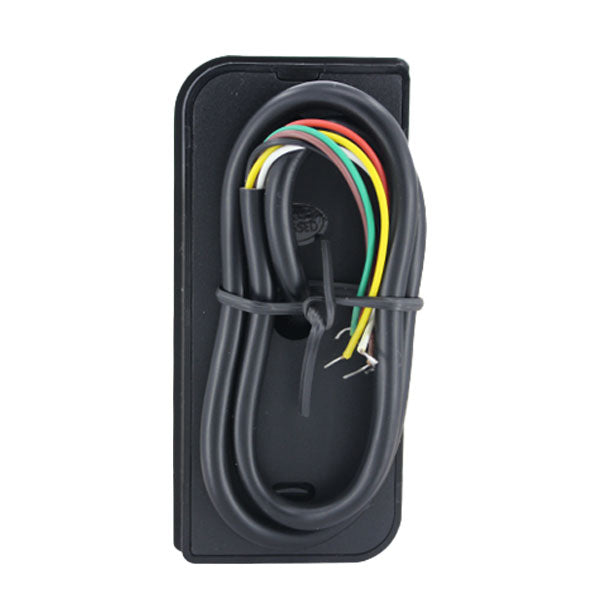

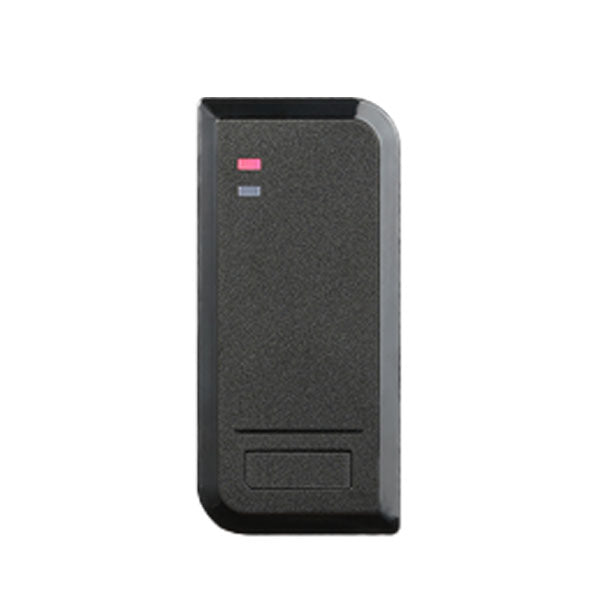

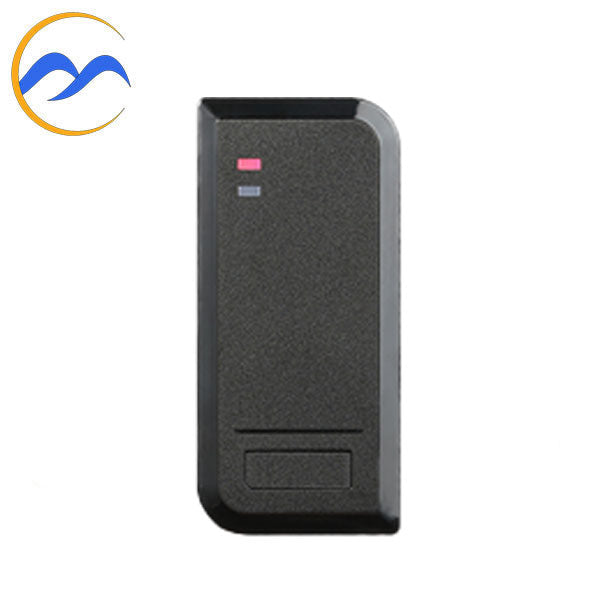

This Malibu RFID Reader is a slim Wiegand output proximity reader that is compatible with any Wiegand controller. The reader is fully potted and can operate at extreme temperatures which allows it to be mounted either outdoors or indoors. this reader will work against metal door frames
Features:
- Waterproof, conforms to IP66
- Wiegand 26~37 bits output (default: 26bits)
- The card type is Mifare 13.56Mhz / 125KHz EM card
- Working temperature: 40 oC ~ 60 oC (-40 oF ~ 140 oF)
- Reading Range: 7 cm
- $98.00
-
$0.00 - $98.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| Operating Voltage | 9~18V DC |
| Frequency | 13.56Mhz / 125KHz |
| Card Type | MiFare / EM card |
| Reading Range | 7 cm |
| Output Format | Wiegand 26 bits (26~37 bits available upon request) |
| Standby Current | <25mA |
| Operating Humidity | 10%~95% RH |
| Index of Protection | IP66 |
| Dimensions | L103 x W48 x H19 (mm) |
