*Discontinued* Malibu - Wiegand Splitter Parallel RFID Readers - Indoor - 26bit - 34bit - Black
- $158.00
-
$0.00 - $158.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

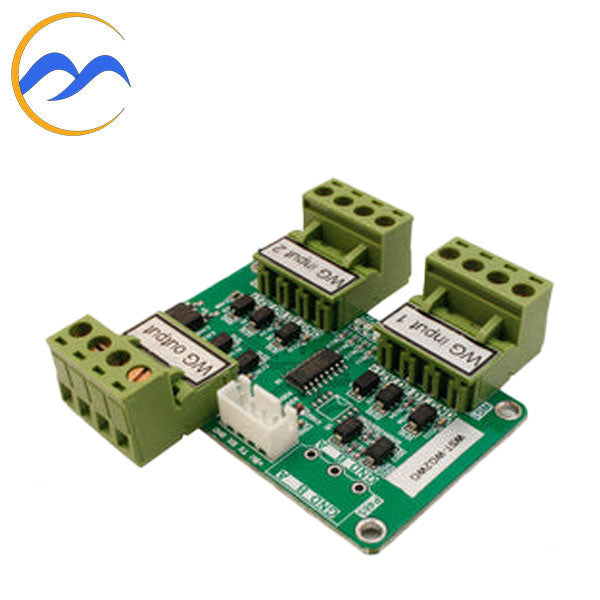

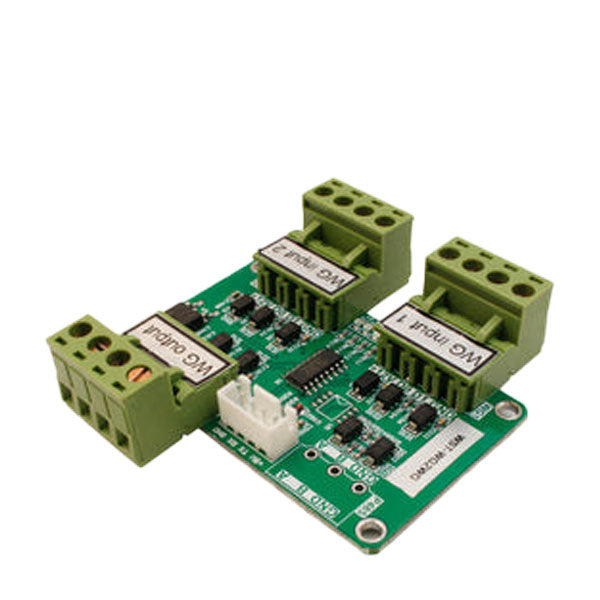

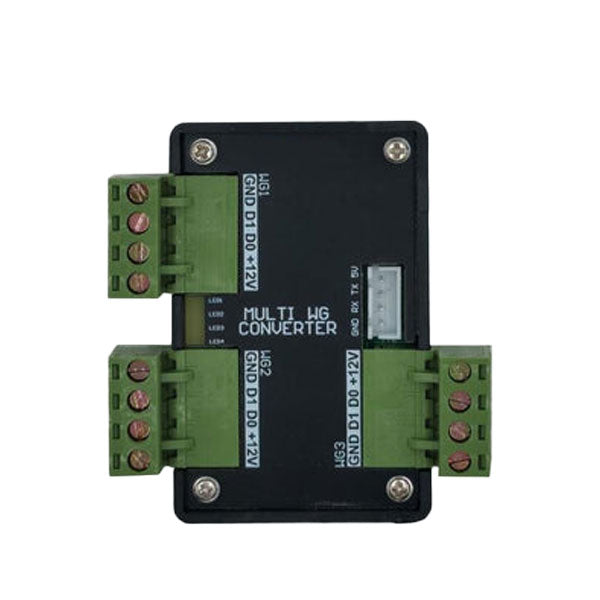

This Malibu Wiegand Parallel Splitter wires two RFID Card readers in parallel. Connect multiple RFID readers together. A low-cost indoor Wiegand splitter to change a 2-channel Wiegand input to a 1-channel output, or change a 1-channel input to a 2-channel output. The converter supports 2-way transmission, transferring Wiegand 26bit/34bit data and other Wiegand bit data for customized orders, and transferring 1CH, 2CH, and 3CH Wiegand to an optional RS485 communication.
ASCII (Decimal Number) output modes:
- WST-WG2WG-A26 WG26bit/WG34bit to WG26bit (8-digit decimal number)- WST-WG2WG-A34 WG26nit/WG34bit to WG34bit (10-digit decimal number)
Hex Output Modes:
- WST-WG2WG-H26 WG26bit/WG34bit to WG26bit (3-byte hex number)
- WST-WG2WG-H34 WG26bit/WG34bit to WG34bit (4-byte hex number)
- $158.00
-
$0.00 - $158.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| Wiegand Input | support Wiegand 26/32/34/35/36/37/40/42/44/66/80bit |
| Wiegand Output | Support Wiegand 26bit or 34bit, other optional |
| RS485 Communication Standard | 9600, n, 8, 1 |
| Transmit Distance | Max 100m |
| Support Reading Interval time | >150ms |
| Operating Voltage | DC 9V-24V (Wiegand output GND must connect with access control GND) |
| Consumption Current | Not more than 30mA |
| Operating Temperature Range | 41-104F |
| Relative Humidity at 59F | 80% / 77F 90% |
| Material | Plastic Shell |
| Color | Black |
| Size | 64mm x 65mm x 35mm (2.52 in x 2.56 in x 1.38 in) |
| Net Weight | about 30g (1.06 oz) |
Application:

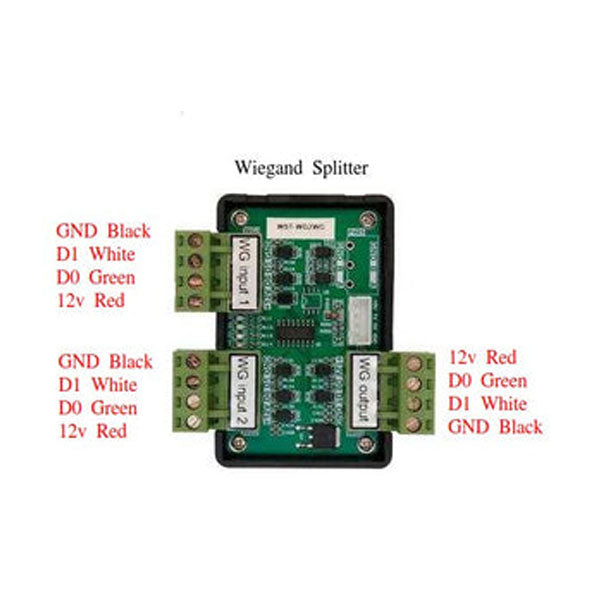

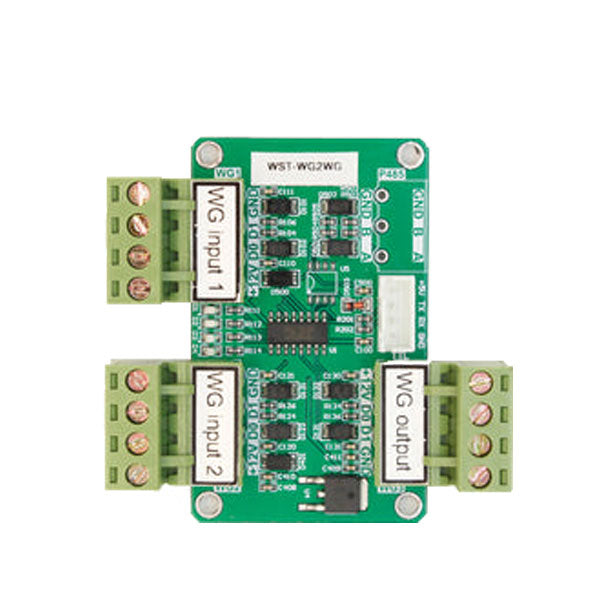

The standard mode of this converter supports 2CH Wiegand reader input (WG1 and WG2), and 1CH Wiegand reader output (WG3). A popular application for use in 4-door access control: some 4-door access controllers have only 1CH Wiegand interface for each door. When it is necessary to install 2 Wiegand RFID card readers at each side of the door, you can use this Wiegand to Wiegand converter as a communication splitter to change the 1CH Wiegand interface to 2CH Wiegand interface, so a 4-door access controller can connect 8 Wiegand RFID readers. Another typical application is to connect 1 Wiegand RFID card reader (1CH Wiegand output) with 2 access controllers, for example, 1 Wiegand RFID reader connects to an access controller Wiegand input interface and also connects to face identify machine Wiegand input interface.
