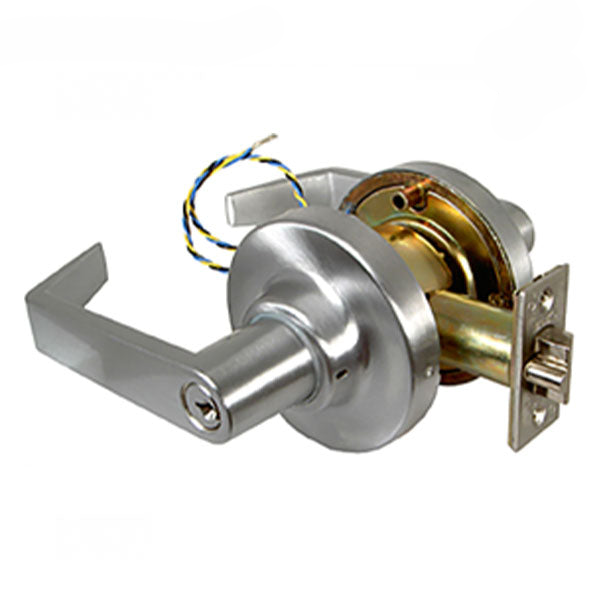

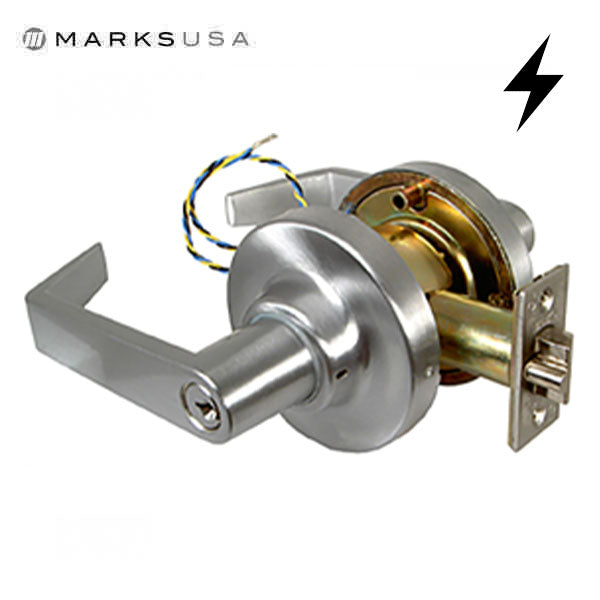

Marks USA -195FEU - Electrified Commercial Lever - 2 3/4" Backset - 26D - 24VAC/DC - Fail Secure - Grade 1
Marks USA -195FEU - Electrified Commercial Lever - 2 3/4" Backset - 26D - 24VAC/DC - Fail Secure - Grade 1
Marks USA -195FEU - Electrified Commercial Lever - 2 3/4" Backset - 26D - 24VAC/DC - Fail Secure - Grade 1
Marks USA -195FEU - Electrified Commercial Lever - 2 3/4" Backset - 26D - 24VAC/DC - Fail Secure - Grade 1
Marks USA -195FEU - Electrified Commercial Lever - 2 3/4" Backset - 26D - 24VAC/DC - Fail Secure - Grade 1

Marks USA -195FEU - Electrified Commercial Lever - 2 3/4" Backset - 26D - 24VAC/DC - Fail Secure - Grade 1

$180.00 $678.00
Available: In Stock
Wishlist
  • Product SKU: MRK-195FEU-26D
  • MRK-195FEU-26D
    Item Number: 8322

    Our Grade 1 Electrified Survivor Series locksets featuring “The Clutch” are available for operation as either electrically locked (Fail Safe) or unlocked (Fail Secure). When locked, the Survivor’s clutch disengages the outside lever allowing it to turn freely without opening the latch.

    More Details Below

    •
    $180.00
Lock Function

FEU - Fail Secure - Electronically Unlocked

Locks upon power loss

Handling Non-Handed
Door Thickness 1-5/8” - 1-7/8”
Backset 2-3/4″ standard,
Latch
 #1834, Front: 1-1/8” x 2-1/4”; Throw: 9/16”; Stainless steel nose
Levers Solid cast Zamac; w/ 1/2” return
Roses Thru-bolted, 3-7/16” dia., spring loaded 2-#10 thru-bolts
Strike #1135, 4-7/8” ASA curved lip strike
Cylinder MARKS “C” keyway, 6 pin w/ 2 keys
Electrified functions 100% duty cycle, 24V/AC supplied with bridge rectifier;
24V/DC  .21 Amps
Finish  626 - 26D - Satin Chrome
Certifications
ANSI/BHMA Meets or exceeds  Series Grade 1 requirements
UL Listed 3-hour fire rating
ADA Meet Requirements of The Americans with Disabilities Act
Manufacturer Warranty  Marks lifetime mechanical warranty



Lock Function



    MRK-195FEU-26D
    Item Number: 8322

    Our Grade 1 Electrified Survivor Series locksets featuring “The Clutch” are available for operation as either electrically locked (Fail Safe) or unlocked (Fail Secure). When locked, the Survivor’s clutch disengages the outside lever allowing it to turn freely without opening the latch.

    More Details Below

    •
    Lock Function

    FEU - Fail Secure - Electronically Unlocked

    Locks upon power loss

    Handling Non-Handed
    Door Thickness 1-5/8” - 1-7/8”
    Backset 2-3/4″ standard,
    Latch
     #1834, Front: 1-1/8” x 2-1/4”; Throw: 9/16”; Stainless steel nose
    Levers Solid cast Zamac; w/ 1/2” return
    Roses Thru-bolted, 3-7/16” dia., spring loaded 2-#10 thru-bolts
    Strike #1135, 4-7/8” ASA curved lip strike
    Cylinder MARKS “C” keyway, 6 pin w/ 2 keys
    Electrified functions 100% duty cycle, 24V/AC supplied with bridge rectifier;
    24V/DC  .21 Amps
    Finish  626 - 26D - Satin Chrome
    Certifications
    ANSI/BHMA Meets or exceeds  Series Grade 1 requirements
    UL Listed 3-hour fire rating
    ADA Meet Requirements of The Americans with Disabilities Act
    Manufacturer Warranty  Marks lifetime mechanical warranty



    Lock Function



      Compatible With
