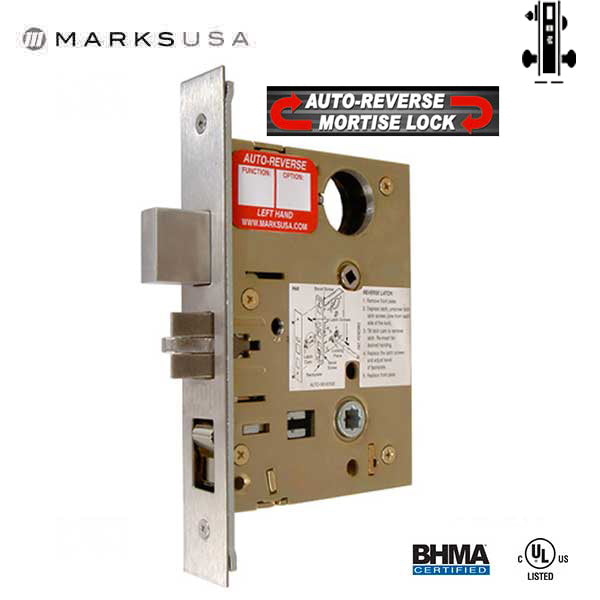

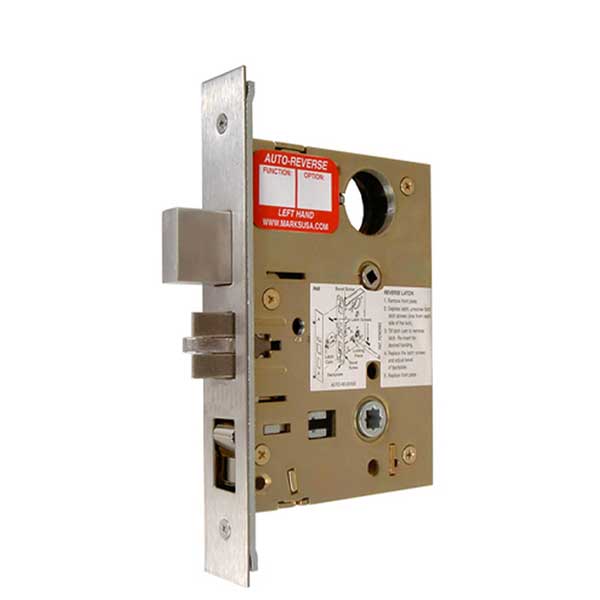

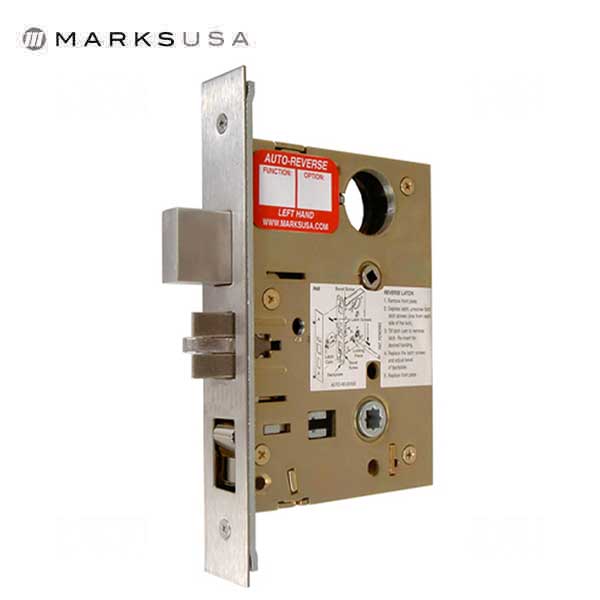

Marks USA - Nova 5A/32D-B4S6 - Mortise Lockset Mechanism w/ Deadbolt - Singl Cyl - 26D - Entrance - RH - Grade 1
Marks USA - Nova 5A/32D-B4S6 - Mortise Lockset Mechanism w/ Deadbolt  - Singl Cyl - 26D - Entrance - RH - Grade 1
Marks USA - Nova 5A/32D-B4S6 - Mortise Lockset Mechanism w/ Deadbolt  - Singl Cyl - 26D - Entrance - RH - Grade 1
Marks USA - Nova 5A/32D-B4S6 - Mortise Lockset Mechanism w/ Deadbolt  - Singl Cyl - 26D - Entrance - RH - Grade 1
Marks USA - Nova 5A/32D-B4S6 - Mortise Lockset Mechanism w/ Deadbolt  - Singl Cyl - 26D - Entrance - RH - Grade 1
Marks USA - Nova 5A/32D-B4S6 - Mortise Lockset Mechanism w/ Deadbolt  - Singl Cyl - 26D - Entrance - RH - Grade 1
Marks USA - Nova 5A/32D-B4S6 - Mortise Lockset Mechanism w/ Deadbolt  - Singl Cyl - 26D - Entrance - RH - Grade 1

Marks USA - Nova 5A/32D-B4S6 - Mortise Lockset Mechanism w/ Deadbolt - Singl Cyl - 26D - Entrance - RH - Grade 1

$103.05 $367.00
Available: In Stock
Wishlist
  • Product SKU: MRK-5A/32D-B4S6-RH
  • MRK-5A/32D-B4S6-RH
    Item Number: 7397

    Nova 5 Series Mortise Locksets represent years of development into world class BHMA Certified mortise locksets and carry the Marks Lifetime Mechanical Warranty. Whether your application is a single style single function lockset or an entire complex with multiples and varieties, the Nova Series has the form, fit and competitive price to complete your project.

    More Details Below

    $103.05
Lock Function ANSI F08, F10  Entrance
Description Keyed Single Cylinder, With Deadbolt
Lock Front Adjustable bevel steel backplate 1-1/4” x 8” x 7/64” thick
stainless steel. Cover plate 1/16” thick
Deadbolt Stainless steel with hardened roll pins, 1” throw
Latch Solid stainless steel with antifriction latch lever,
3/4” throw
Auxiliary Deadlatch 1/2” throw
Handing Right Handed  - RH
Hubs Steel, 9/32’’ on diamond, 5/16” on square with security separator.
Independent exterior and interior lever support springs
Lever Support Springs Lever support springs with 5/16” Hubs
Hub Follower (to lock hub) steel 1/8” thick
Hub Stop (to limit lever travel) steel 1/8” thick.
Case Stamped steel 3/32” thick, zinc dichromate finish.
Certifications ANSI/BHMA Meets or exceeds Series Grade 1 requirements
UL Listed 3-hour fire rating
ADA Meet Requirements of The Americans with Disabilities Act
Manufacturer Warranty Marks lifetime mechanical warranty


Lock Function

See Video Below on How to Reverse the Handing on the Nova 5 Series Mortise Locksets



Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Marks USA directly at 1-800-645-9445 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.

MRK-5A/32D-B4S6-RH
Item Number: 7397

Nova 5 Series Mortise Locksets represent years of development into world class BHMA Certified mortise locksets and carry the Marks Lifetime Mechanical Warranty. Whether your application is a single style single function lockset or an entire complex with multiples and varieties, the Nova Series has the form, fit and competitive price to complete your project.

More Details Below

Lock Function ANSI F08, F10  Entrance
Description Keyed Single Cylinder, With Deadbolt
Lock Front Adjustable bevel steel backplate 1-1/4” x 8” x 7/64” thick
stainless steel. Cover plate 1/16” thick
Deadbolt Stainless steel with hardened roll pins, 1” throw
Latch Solid stainless steel with antifriction latch lever,
3/4” throw
Auxiliary Deadlatch 1/2” throw
Handing Right Handed  - RH
Hubs Steel, 9/32’’ on diamond, 5/16” on square with security separator.
Independent exterior and interior lever support springs
Lever Support Springs Lever support springs with 5/16” Hubs
Hub Follower (to lock hub) steel 1/8” thick
Hub Stop (to limit lever travel) steel 1/8” thick.
Case Stamped steel 3/32” thick, zinc dichromate finish.
Certifications ANSI/BHMA Meets or exceeds Series Grade 1 requirements
UL Listed 3-hour fire rating
ADA Meet Requirements of The Americans with Disabilities Act
Manufacturer Warranty Marks lifetime mechanical warranty


Lock Function

See Video Below on How to Reverse the Handing on the Nova 5 Series Mortise Locksets



Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Marks USA directly at 1-800-645-9445 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.

Compatible With
