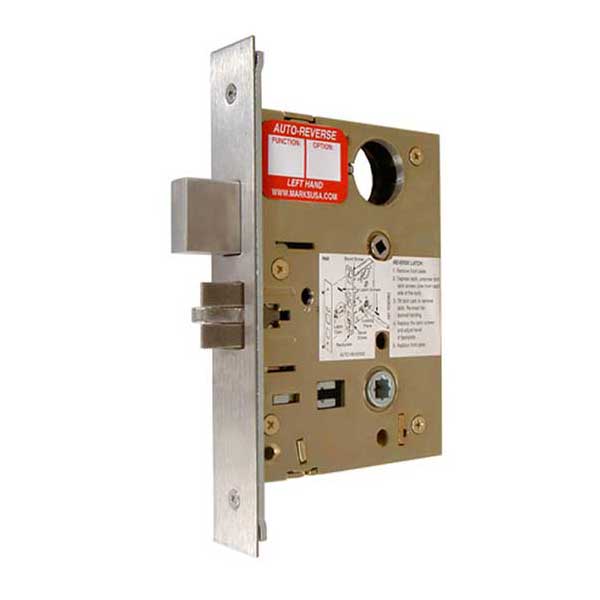

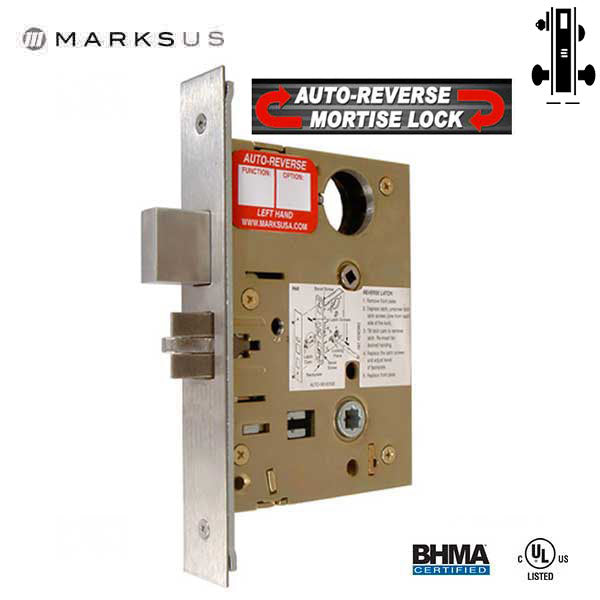

Marks USA - Nova 5FW/32D-B4S6- Narrow-Stile Mortise Lock Body Latch - Singl Cyl - 26D - Dormitory - Grade 1
Marks USA - Nova 5FW/32D-B4S6- Narrow-Stile Mortise Lock Body Latch - Singl Cyl - 26D - Dormitory - Grade 1
Marks USA - Nova 5FW/32D-B4S6- Narrow-Stile Mortise Lock Body Latch - Singl Cyl - 26D - Dormitory - Grade 1
Marks USA - Nova 5FW/32D-B4S6- Narrow-Stile Mortise Lock Body Latch - Singl Cyl - 26D - Dormitory - Grade 1
Marks USA - Nova 5FW/32D-B4S6- Narrow-Stile Mortise Lock Body Latch - Singl Cyl - 26D - Dormitory - Grade 1
Marks USA - Nova 5FW/32D-B4S6- Narrow-Stile Mortise Lock Body Latch - Singl Cyl - 26D - Dormitory - Grade 1
Marks USA - Nova 5FW/32D-B4S6- Narrow-Stile Mortise Lock Body Latch - Singl Cyl - 26D - Dormitory - Grade 1

Marks USA - Nova 5FW/32D-B4S6- Narrow-Stile Mortise Lock Body Latch - Singl Cyl - 26D - Dormitory - Grade 1

$103.05 $367.00
Available: In Stock
Wishlist
  • Product SKU: MRK-5FW/32D-B4S6
  • MRK-5FW/32D-B4S6
    Item Number: 7400

    Nova 5 Series Mortise Locksets represent years of development into world class BHMA Certified mortise locksets and carry the Marks Lifetime Mechanical Warranty. Whether your application is a single style single function lockset or an entire complex with multiples and varieties, the Nova Series has the form, fit and competitive price to complete your project.

    More Details Below

    $103.05
Lock Function ANSI F12 Dormitory
Description Keyed Single Cylinder, With Deadbolt
Lock Front Adjustable bevel steel backplate 1-1/4” x 8” x 7/64” thick
stainless steel. Cover plate 1/16” thick
Deadbolt Stainless steel with hardened roll pins, 1” throw
Latch Solid stainless steel with antifriction latch lever,
3/4” throw (reversible)
Auxiliary Deadlatch 1/2” throw (reversible)
Hubs Steel, 9/32’’ on diamond, 5/16” on square with security separator.
Independent exterior and interior lever support springs
Lever Support Springs Lever support springs with 5/16” Hubs
Hub Follower (to lock hub) steel 1/8” thick
Hub Stop (to limit lever travel) steel 1/8” thick.
Case Stamped steel 3/32” thick, zinc dichromate finish.
Certifications ANSI/BHMA Meets or exceeds Series Grade 1 requirements
UL Listed 3-hour fire rating
ADA Meet Requirements of The Americans with Disabilities Act
Manufacturer Warranty Marks lifetime mechanical warranty


Lock Function

See Video Below on How to Reverse the Handing on the Nova 5 Series Mortise Locksets
