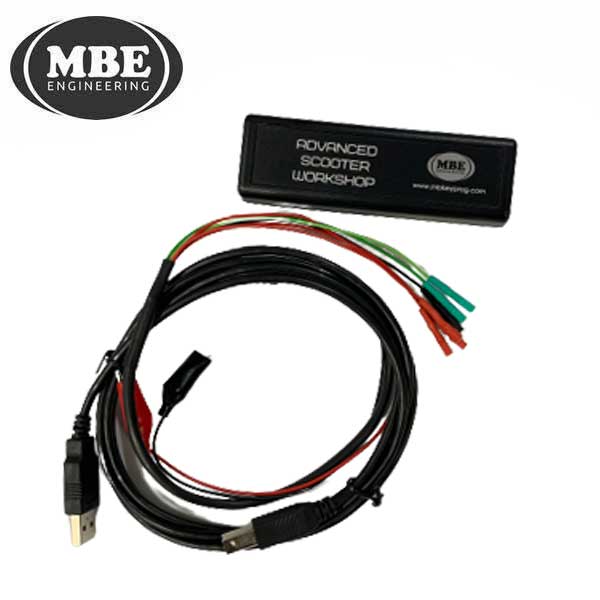

Tool that will definitely help you to save many hours of time when solving lost key problems on PIAGGIO, GILERA, APRILIA, DERBI, VESPA and PEUGEOT motor scooters. No drilling or cutting of ignition controller plastic enclosure, no scraping of green filling, no soldering is necessary - all memory functions works by K-Line. This way you can gain an access to memory functions without a need to open CDI, scrape sealant, soldering any wires or de-soldering memory IC. All you need to do is just connect four wires to controller K-line connector. USB / K-Line interface connects to the ignition controller only with 4 wires. Key data for T5-11 transponder is calculated after EEPROM data reading procedure.
NOTE:This tool does not have ability to program transponder with calculated key data by itself. Any transponder programmer with T5 transponder programming capability is suitable to perform final key-making steps. Transponders are also not supplied with this tool.

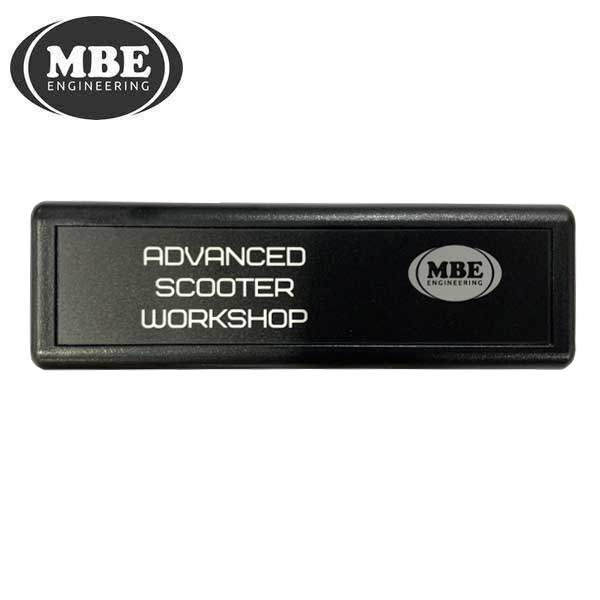

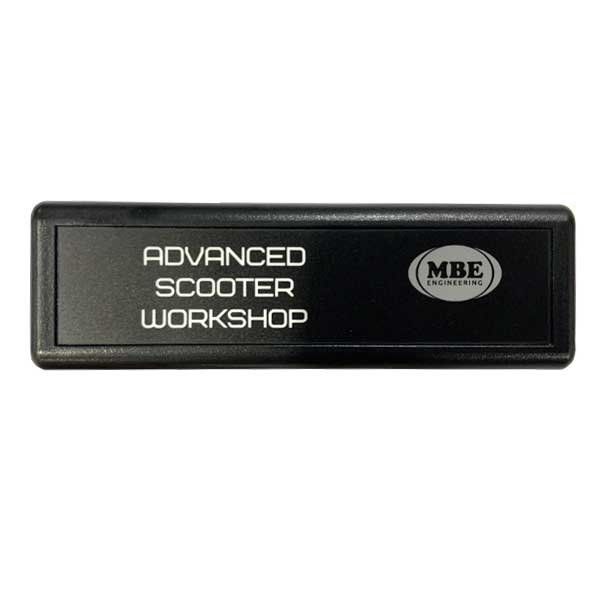

Advanced Scooter Workshop is a set of hardware and software that enables to work with ignition control unit (CDI) through K-line diagnostics.
Features:
- copying of data from faulty CDI controller into another (even used one)
- reading T5-11 formatted Key Data from CDI controller if all keys are lost
- resetting of used CDI controller to the state of a brand NEW controller (virginize)
Coverage:
PHILIPS TSDI / DiTECH / PUREJET with TQFP-64 MC68HC908AZ60A (3K85K) MCU
MAGNETI MARELLI IAW 5AM HW103 / HW610 injection control module (HYBRID) with EEPROM 95160
MAGNETI MARELLI with TQFP-64 MC68HC05Bxx (0D54J, 0D60J) MCU (system type ACI100, ACI50X, ACI60X)
EFI TECHNOLOGY with ST72C334 / ST72F521 MCU and 95040 / 95080 EEPROM (system type ACII, AC2I, AC5I, AC8I, AC19I, AC20I, AC21I, AC23I, AC25I AC32I etc.)
MAGNETI MARELLI IMM003/IMM006 immobilizer module with 28 pin MC68HC05E6 (0F82B, 0G72G, 2F75B) MCU
MAGNETI MARELLI MIU1 (32MIU1) injection control module / throttle body with ST10F269-T3 MCU
MAGNETI MARELLI MIU2 (32MIU2) injection control module / throttle body with ST10F269-T3 MCU and EEPROM 95160
MAGNETI MARELLI MIU4 (32MIU4) injection control module / throttle body with ST10F269-T3 MCU and EEPROM 95160
MAGNETI MARELLI MIU G3 (32M3G1 / 38M3G1) injection control module / throttle body with Infineon SAK-XC2060 and EEPROM 95320
MAGNETI MARELLI IAW15 injection control module with MOTOROLA MC68HC11F1 (2E87J) MCU
Software:
