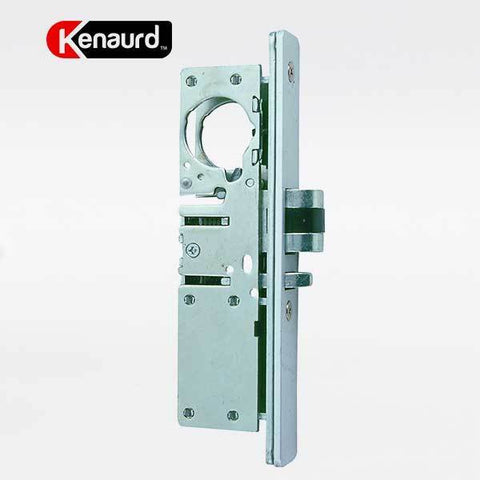

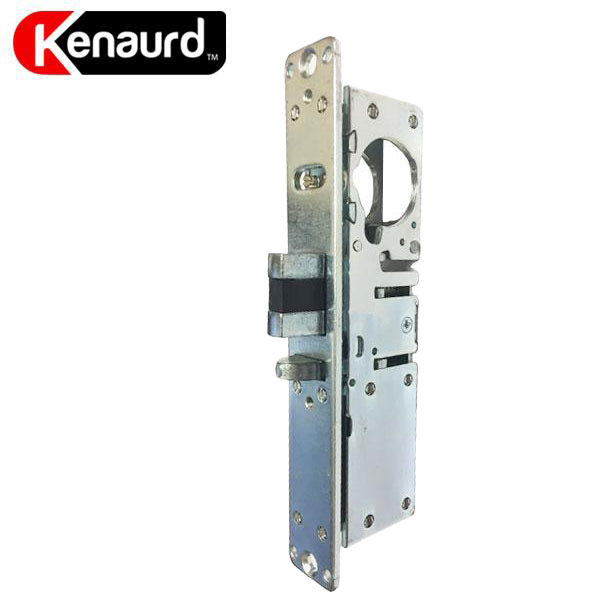

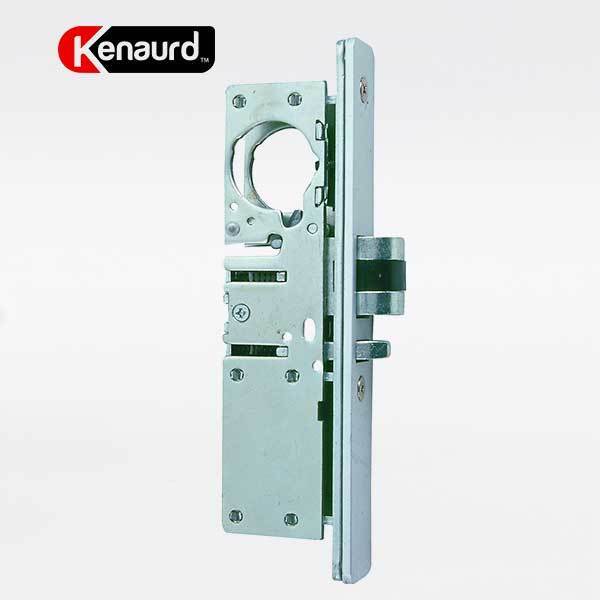

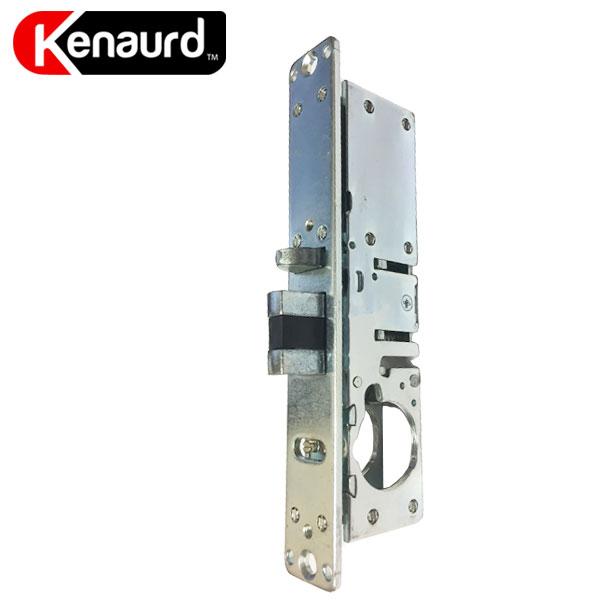

Narrow-Stile 1-1/2" Latch Lock Body w/ 2 Faceplates - LH
- Product SKU: KNS201-L
- NSID: 3316
-
KNS201-L

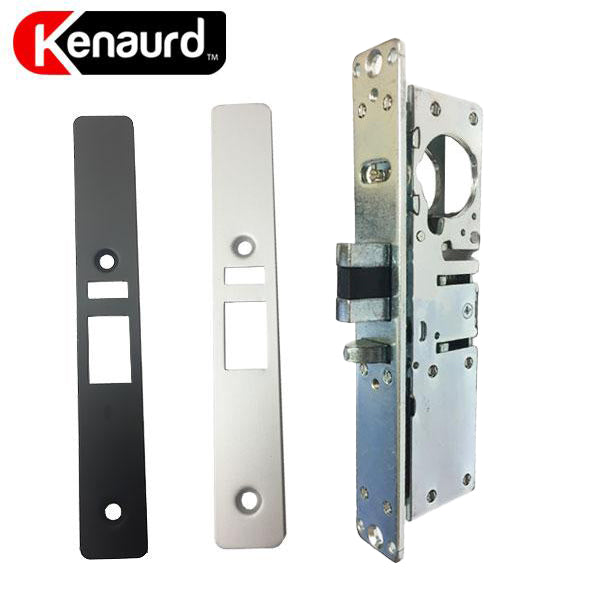

The Lock Body includes 2 faceplates in Oil Rubbed Bronze and Aluminum Finish. Fits standard 1" to 1-1/2" Mortise Cylinder
| Backset | 1-1/2" [28.6 mm] |
| Handing | Left Hand / Right Hand |
| Case | Zinc Plated Steel lock body |
| Case Dimensions: | 7/8" width x 6" Length |
| Cylinder: | Accepts standard 1" to 1-1/8" Mortise Thumbturns and 1" to 1-1/2" Mortise Lock Cylinders with Adams Rite (A/R) cams. (Cylinder Not Included) |
| Latchbolt |
Latch 13mm chrome plated with delrin insert for quiet latching 1/2" width x 1.0" length x 1/2" Throw |
| Auxiliary Linchpin | Steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry. |

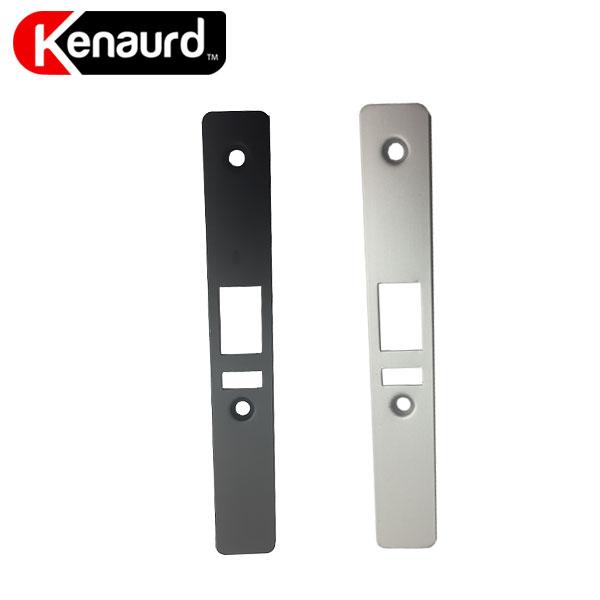

| Faceplate | Measures 1" x 6-7/8" [25.4 mm x 174.6 mm]. |
| Strike | Standard strike furnished for flat jamb where door closes flush or nearly flush. |
| Standard Package |
Individually boxed with strike plate, 2 faceplates, and mounting screws. Available in 25 Count Carton / Box Cylinders, paddles, handles available separately. |
