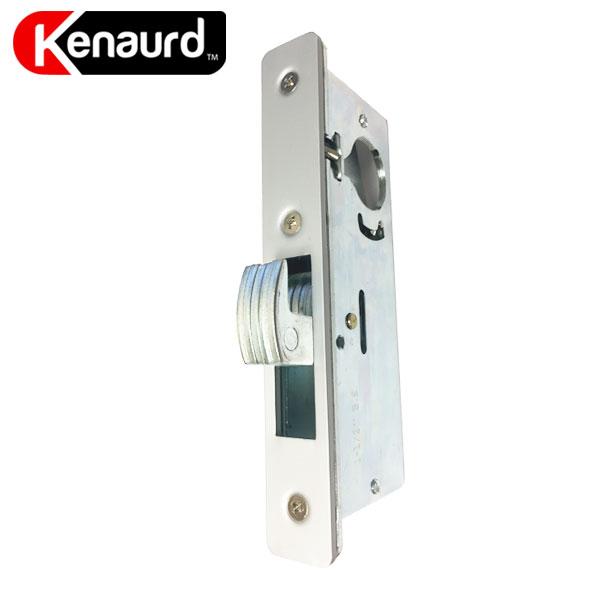

Narrow-Stile 1-1/8" Hook Bolt Lock Body - w/ 2 Faceplates
- Product SKU: KNS03
- NSID: 3313
-
KNS03

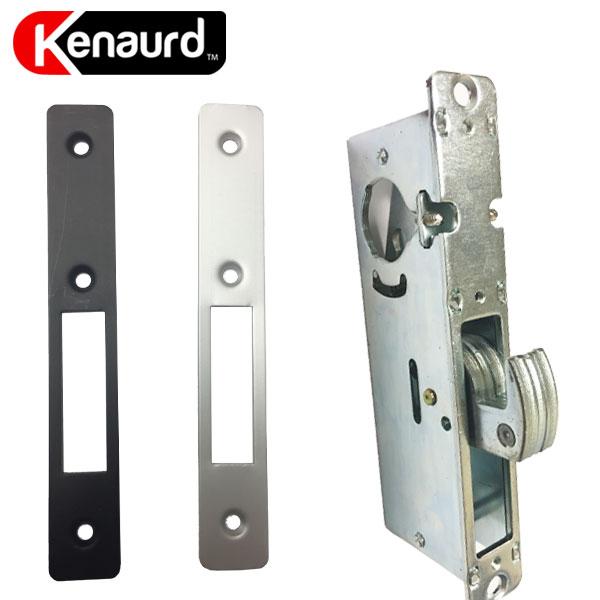

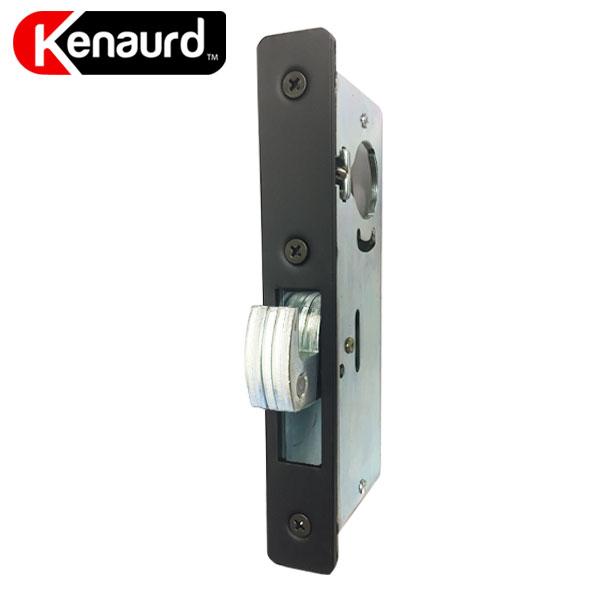

Item Number: 1343This Premium Narrow-Stile Hook Bolt Lock Body offers a flexible solution for traffic control. The Lock Body includes 2 faceplates in Oil Rubbed Bronze and Aluminum Finish. Fits standard 1" to 1-1/8" Mortise cylinders.
Backset 1-1/8" [28.6 mm] Handing Easy adjustable to LH ro RH applications Case Zinc Plated Steel lock body Case Dimensions: 7/8" width x 6" Length Cylinder: Accepts standard 1" to 1-1/8" Mortise Thumbturns and 1" to 1-1/8" Mortise Lock Cylinders with Adams Rite (A/R) cams. (Cylinder Not Included) Hook Bolt
Width - 5/8", Length - 1-3/8", Throw - 15/16”
Faceplate Measures 1" x 6-7/8" [25.4 mm x 174.6 mm]. Strike Standard strike furnished for flat jamb where door closes flush or nearly flush. Standard Package Individually boxed with strike plate, 2 faceplates, and mounting screws.
Available in 25 Count Carton / Box
Cylinders, paddles, handles available separately.
KNS03
Item Number: 1343
This Premium Narrow-Stile Hook Bolt Lock Body offers a flexible solution for traffic control. The Lock Body includes 2 faceplates in Oil Rubbed Bronze and Aluminum Finish. Fits standard 1" to 1-1/8" Mortise cylinders.
| Backset | 1-1/8" [28.6 mm] |
| Handing | Easy adjustable to LH ro RH applications |
| Case | Zinc Plated Steel lock body |
| Case Dimensions: | 7/8" width x 6" Length |
| Cylinder: | Accepts standard 1" to 1-1/8" Mortise Thumbturns and 1" to 1-1/8" Mortise Lock Cylinders with Adams Rite (A/R) cams. (Cylinder Not Included) |
| Hook Bolt |
Width - 5/8", Length - 1-3/8", Throw - 15/16” |

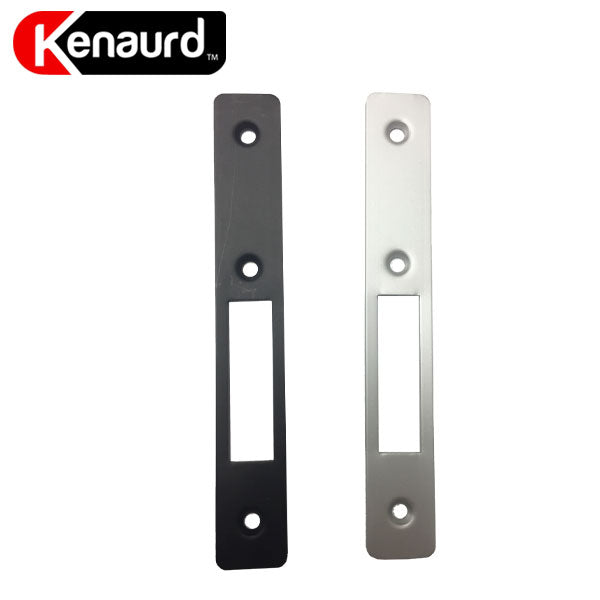

| Faceplate | Measures 1" x 6-7/8" [25.4 mm x 174.6 mm]. |
| Strike | Standard strike furnished for flat jamb where door closes flush or nearly flush. |
| Standard Package |
Individually boxed with strike plate, 2 faceplates, and mounting screws. Available in 25 Count Carton / Box Cylinders, paddles, handles available separately. |
