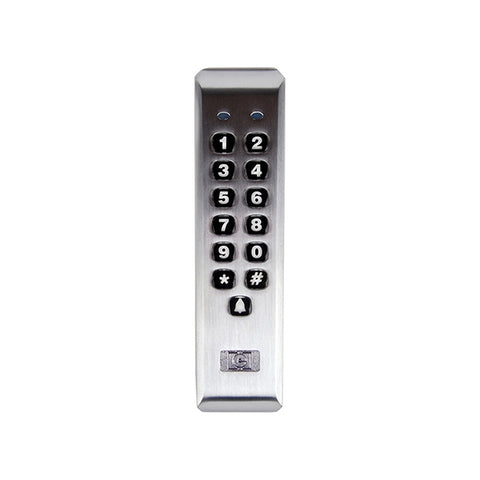

Nortek - 212ILM - Indoor/Outdoor Mullion-Mount Weather Resistant Keypad - 120 Users - Surface Mount - 1-2 AMP Doorbell Relay - Back-lit Keys - Aluminum
Available to Order
SKU:
NORT-212ILM-AL
NSID:
66421
- $262.36
-
$314.83 - $262.36
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

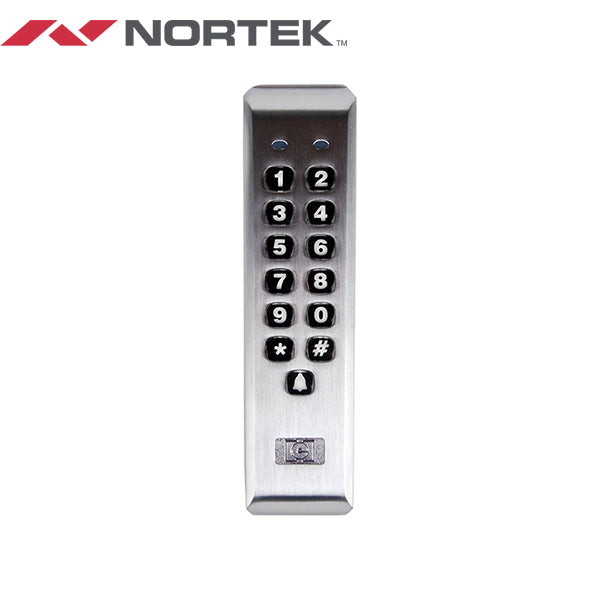

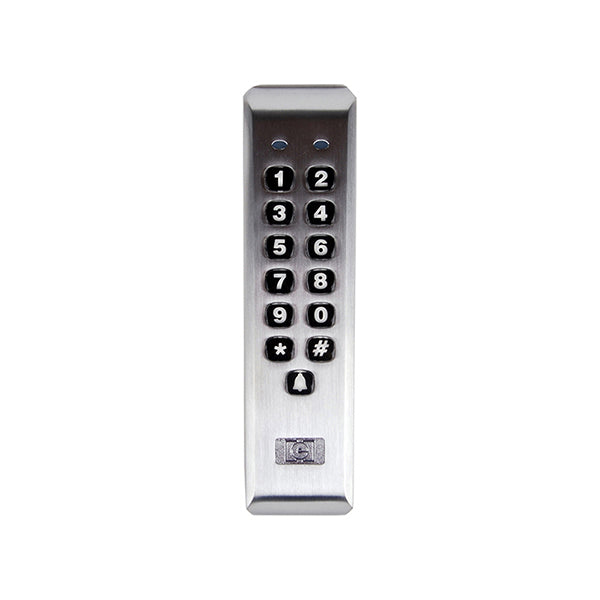

The Door Gard Series 212iLM keypad combines elegant looks with a mullion mount design in a rugged, vandal resistant case, which you can use for almost any application. The 212iLM has hardened backlit keys designed to perform in medium to high traffi c areas and in rough duty environments. The electronics are also conformal coated, which makes the keypad suitable for indoor or outdoor applications.
Basic Operation: To gain access through the door enter your code (1-6 digits) followed by the ✱ key on the keypad.
Special Features:
- 120 User Capacity
- Programmable Relay Time (0 to 99 seconds)
- Request to Exit (REX) Input
- Vandal Resistant Case
- Sealed for Indoor or Outdoor Applications
- LED’s for Relay Status Indication
- Bell Output
- Surface Mount
- Illuminated Hardened Keys
- Rated for Greater than One Million Key Cycles
Specifications
| Electrical | Voltage: 12-24 VAC/DC |
| Current |
53mA @ 12VDC 72 mA @ 24 VDC 95 mA @ 12 VAC 108 mA @ 24 VAC |
|
Relay Contacts
|
Main Relay (controller): 2 Amps |
| Bell Relay |
Form A; 1 Amp @ 30 VAC/DC |
| Applications |
Low to Medium/Heavy Traffi c Areas Rough Service Environments Mullion Frame Mounting Dimly Lit Areas |
| Working Environment |
-20º F to 130° F For Indoor and Outdoor Use |
| Dimensions |
6-1/2” L x 1-3/4” W x 1-1/8” D |
What's Included:
-
(1) 212iLM Keypad
-
(1) Eight-Conductor Wire Harness
-
(1) Mullion Hardware Pack
-
(1) 5/64” Allen Wrench
-
(1) Anti-Oxidant Grease Pack
-
(1) Installation/Programming Manual
